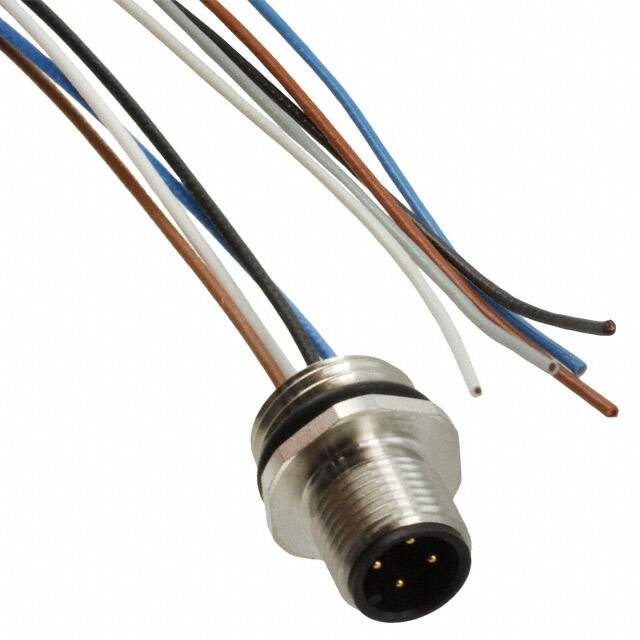

https://www.phoenixcontact.com/us/produkte/1554555 Flush-type connector - SACC-E-M12MS-4CON-PG 9/0,5 VA - 1554555 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Sensor/actuator flush-type plug, 4-pos., M12, A-coded, front/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm², stainless steel version   Key commercial data Packing unit 1 PCE Catalog page Page 208 (PC-2011) GTIN Custom tariff number 85366990 Country of origin GERMANY Technical data General data Rated current at 40°C 4A Rated voltage 250 V Number of positions 4 Volume resistance ≤ 3 mΩ Insulation resistance > 100 MΩ Length of cable 0.5 m Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) General characteristics Standards/regulations M12 plug-in connector IEC 61076-2-101 Coding A - standard Surge voltage category II Pollution degree 3 Degree of protection IP65/IP67/IP69K 17.04.2013   Page 1 / 4 https://www.phoenixcontact.com/us/produkte/1554555 Flush-type connector - SACC-E-M12MS-4CON-PG 9/0,5 VA - 1554555 Technical data General characteristics Insertion/withdrawal cycles > 100 Contact material Cu alloy Contact surface material Au Contact carrier material PA66 GF Material, knurls High-grade steel Sealing material FKM Mounting type Front mounting Pg9 Connection method Individual wires Status display No Conductor data Cable type TPE litz wire Conductor cross section 0.34 mm² AWG signal line 22 Conductor structure signal line 7x 0.25 mm Core diameter including insulation 1.2 mm ±0.07 mm Thickness, insulation 0.21 mm Wire colors brown, white, blue, black Material conductor insulation TPE Conductor material Tin-plated Cu litz wires Insulation resistance ≥ 20 MΩ*km Conductor resistance ≤ 57.6 Ω/km Nominal voltage, conductor 300 V Test voltage, conductor 2000 V AC Ambient temperature (operation) -25 °C ... 85 °C (cable, fixed installation) Classifications ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 5.0 EC002062 UNSPSC UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 UNSPSC 6.01 31251501 17.04.2013   Page 2 / 4 https://www.phoenixcontact.com/us/produkte/1554555 Flush-type connector - SACC-E-M12MS-4CON-PG 9/0,5 VA - 1554555 Classifications UNSPSC UNSPSC 7.0901 31251501 eCl@ss eCl@ss 4.0 27250313 eCl@ss 4.1 27250313 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 Approvals Approvals Approvals GOST / UL Recognized Ex Approvals Approvals submitted Approval details GOST  UL Recognized      mm²/AWG/kcmil 26-20 Nominal current IN 4A Nominal voltage UN 250 V Drawings 17.04.2013   Page 3 / 4 https://www.phoenixcontact.com/us/produkte/1554555 Flush-type connector - SACC-E-M12MS-4CON-PG 9/0,5 VA - 1554555 Schematic diagram 4 Dimensioned drawing 20 3 500 13 2 2 Pin assignment M12 plug, 4-pos., A-coded, view plug side PG 9 M12x1 1 17 min.2,5 M12 flush-type plug Circuit diagram 1 BN 2 WH 4 BK 3 BU Contact assignment of the M12 plug and the M12 socket © Phoenix Contact 2013 - all rights reserved http://www.phoenixcontact.com 17.04.2013   Page 4 / 4
