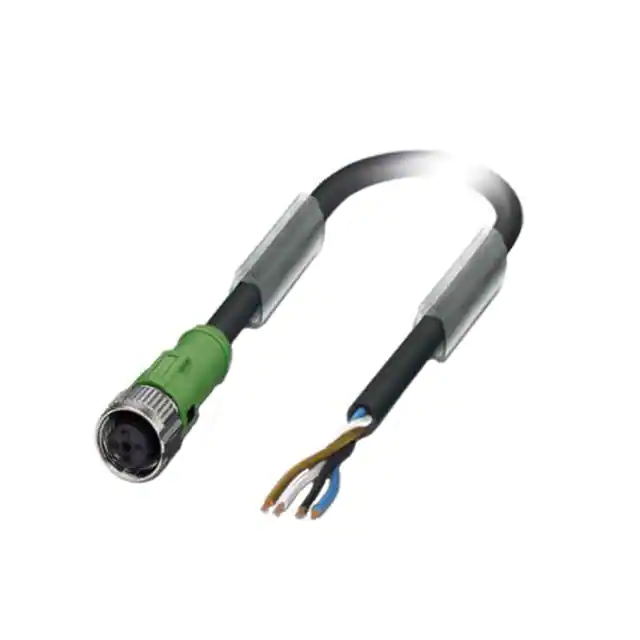

https://www.phoenixcontact.com/us/products/1555648 Sensor/actuator cable - SAC-4P- 2,0-186/FS SCO - 1555648 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator cable, 4-position, PUR, black-gray RAL 7021, free cable end, on Socket straight M12 SPEEDCON, A-coded, cable length: 2 m Your advantages  Easy and safe: 100% electrically tested plug-in components  Save time, thanks to installation with SPEEDCON fast locking system  High-performance: connectors and cables with a large conductor cross section for power supply Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356173544 Weight per Piece (excluding packing) 128.000 g Custom tariff number 85444290 Country of origin Poland Technical data Dimensions Length of cable 2m Stripping length of the free conductor end 50 mm Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 11/29/2019   Page 1 / 8 https://www.phoenixcontact.com/us/products/1555648 Sensor/actuator cable - SAC-4P- 2,0-186/FS SCO - 1555648 Technical data General Rated current at 40°C 4A Rated voltage 250 V AC 250 V DC Number of positions 4 Insulation resistance ≥ 100 MΩ Coding A - standard Status display No Protective circuit/component unwired Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm Material Flammability rating according to UL 94 HB Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Standards and Regulations Flammability rating according to UL 94 HB Cable Cable type PUR POWER 0.75 mm² black Cable type (abbreviation) 186 Cable abbreviation LiY11Y UL AWM style 20549 / 1061 (80°C/300 V) Conductor cross section 4x 0.75 mm² (power line) AWG signal line 18 Conductor structure signal line 42x 0.15 mm Core diameter including insulation 1.75 mm ±0.05 mm Thickness, insulation ≥ 0.23 mm (Core insulation) ≥ 0.76 mm (Outer cable sheath) Wire colors brown, white, blue, black Overall twist 4 wires, twisted External sheath, color black-gray RAL 7021 External cable diameter D 5.9 mm ±0.15 mm 11/29/2019   Page 2 / 8 https://www.phoenixcontact.com/us/products/1555648 Sensor/actuator cable - SAC-4P- 2,0-186/FS SCO - 1555648 Technical data Cable Smallest bending radius, movable installation 59 mm Minimum bending radius, fixed installation 5xD Minimum bending radius, flexible installation 10 x D Number of bending cycles 2000000 Bending radius 59 mm Traversing path 5m Traversing rate 3 m/s Acceleration 5 m/s² Cable weight 57 kg/km Outer sheath, material PUR Material conductor insulation PVC Conductor material Bare Cu litz wires Insulation resistance ≥ 1 MΩ*km (at 20 °C) Conductor resistance max. 26 Ω/km (at 20 °C) Nominal voltage, cable ≤ 300 V Test voltage, cable ≥ 3000 V Flame resistance according to UL 758/1581 (horizontal) in accordance with UL 758/1581 FT2 Resistance to oil According to DIN EN 60811-2-1, 168 h at 100°C Other resistance hydrolysis and microbe resistant Low adhesion abrasion-resistant Resistant to salt water Ambient temperature (operation) -25 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (cable, flexible installation) Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 11/29/2019   Page 3 / 8 https://www.phoenixcontact.com/us/products/1555648 Sensor/actuator cable - SAC-4P- 2,0-186/FS SCO - 1555648 Dimensional drawing M12-SPEEDCON socket, straight Circuit diagram Contact assignment of the M12 socket 11/29/2019   Page 4 / 8 https://www.phoenixcontact.com/us/products/1555648 Sensor/actuator cable - SAC-4P- 2,0-186/FS SCO - 1555648 Schematic diagram Pin assignment M12 socket, 4-pos., A-coded, view female side 11/29/2019   Page 5 / 8 https://www.phoenixcontact.com/us/products/1555648 Sensor/actuator cable - SAC-4P- 2,0-186/FS SCO - 1555648 Cable cross section PUR POWER 0.75 mm² black [186] Classifications eCl@ss eCl@ss 4.0 27060300 eCl@ss 4.1 27060300 eCl@ss 5.0 27061800 eCl@ss 5.1 27061800 eCl@ss 6.0 27279200 eCl@ss 7.0 27279218 eCl@ss 8.0 27279218 11/29/2019   Page 6 / 8 https://www.phoenixcontact.com/us/products/1555648 Sensor/actuator cable - SAC-4P- 2,0-186/FS SCO - 1555648 Classifications eCl@ss eCl@ss 9.0 27060311 ETIM ETIM 2.0 EC000830 ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC001855 ETIM 6.0 EC001855 ETIM 7.0 EC001855 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Listed / cUL Listed / EAC / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 300 V Nominal current IN 4A  FILE E 221474 11/29/2019   Page 7 / 8 https://www.phoenixcontact.com/us/products/1555648 Sensor/actuator cable - SAC-4P- 2,0-186/FS SCO - 1555648 Approvals cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 300 V Nominal current IN 4A EAC  cULus Listed   FILE E 221474     RU CDE.BL08.B.00286      Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 11/29/2019   Page 8 / 8
