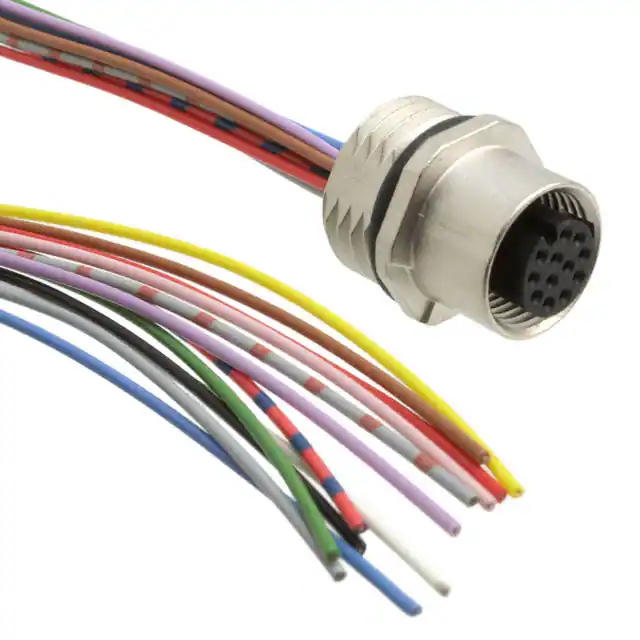

https://www.phoenixcontact.com/us/products/1556252 Flush-type connector - SACC-E-FS-12CON-M16/0,5 SCO - 1556252 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator flush-type socket, 12-pos., M12 SPEEDCON, front/screw mounting with M16 thread, with 0.5 m PVC litz wire, 12 x 0.14 mm² Your advantages  Pre-assembled with litz wires for immediate use  Customer-specific assemblies and litz wire lengths available  Sealed on the litz wire side for optimum leak-tightness  All standard pin assignments and codings for signal, data, and power transmission with a uniform design-in design  For high transmission safety: shield connection to the housing with optional EMC nut  SPEEDCON fast locking system reduces cabling times Key Commercial Data Packing unit 1 pc GTIN GTIN 4046356176798 Weight per Piece (excluding packing) 20.000 g Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 0.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) Degree of protection IP67 11/07/2019   Page 1 / 11 https://www.phoenixcontact.com/us/products/1556252 Flush-type connector - SACC-E-FS-12CON-M16/0,5 SCO - 1556252 Technical data General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 1.5 A Rated voltage 30 V Rated surge voltage 0.8 kV Number of positions 12 Insulation resistance ≥ 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Signal type/category Universal Status display No Overvoltage category II Degree of pollution 3 Connection method Individual wires Insertion/withdrawal cycles > 100 Torque 3 Nm ... 4 Nm (Installation-side) Mounting type Front mounting M16 x 1.5 Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Ni/Au Contact carrier material PA 6.6 Material of grip body Zinc die-cast, nickel-plated Material, knurls Zinc die-cast, nickel-plated Sealing material FKM Cable Cable type TPE litz wire Conductor cross section 0.14 mm² AWG signal line 26 Conductor structure signal line 7x 0.16 mm Core diameter including insulation 1.1 mm ±0.05 mm Thickness, insulation 0.21 mm (Core insulation) Wire colors Brown, blue, white, green, pink, yellow, black, gray, red, violet, gray/pink, red/blue Material conductor insulation TPE 11/07/2019   Page 2 / 11 https://www.phoenixcontact.com/us/products/1556252 Flush-type connector - SACC-E-FS-12CON-M16/0,5 SCO - 1556252 Technical data Cable Conductor material Tin-plated Cu litz wires Standards/specifications M12 connector IEC 61076-2-101 Insulation resistance ≥ 20 MΩ*km Conductor resistance ≤ 57.6 mΩ/m Nominal voltage, cable 300 V Test voltage, cable 2000 V AC Ambient temperature (operation) -40 °C ... 85 °C (cable, fixed installation) -25 °C ... 85 °C (cable, flexible installation) Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 V0 Environmental Product Compliance Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 11/07/2019   Page 3 / 11 https://www.phoenixcontact.com/us/products/1556252 Flush-type connector - SACC-E-FS-12CON-M16/0,5 SCO - 1556252 Schematic diagram Pin assignment M12, 12-pos., female side view 11/07/2019   Page 4 / 11 https://www.phoenixcontact.com/us/products/1556252 Flush-type connector - SACC-E-FS-12CON-M16/0,5 SCO - 1556252 Dimensional drawing M12 flush-type socket 11/07/2019   Page 5 / 11 https://www.phoenixcontact.com/us/products/1556252 Flush-type connector - SACC-E-FS-12CON-M16/0,5 SCO - 1556252 Dimensional drawing Housing cutout for M16 fastening thread, mounting panel with thread 11/07/2019   Page 6 / 11 https://www.phoenixcontact.com/us/products/1556252 Flush-type connector - SACC-E-FS-12CON-M16/0,5 SCO - 1556252 Dimensional drawing Housing cutout for M16 fastening thread, mounting panel with feed-through hole (alternatively with surface as protection against rotation) 11/07/2019   Page 7 / 11 https://www.phoenixcontact.com/us/products/1556252 Flush-type connector - SACC-E-FS-12CON-M16/0,5 SCO - 1556252 Circuit diagram Contact assignment of the M12 socket Classifications eCl@ss eCl@ss 10.0.1 27440102 eCl@ss 4.0 27140800 eCl@ss 4.1 27140800 eCl@ss 5.0 27143400 eCl@ss 5.1 27143400 eCl@ss 6.0 27279200 eCl@ss 7.0 27440103 eCl@ss 8.0 27440103 eCl@ss 9.0 27440102 ETIM ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 5.0 EC002061 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 31251501 11/07/2019   Page 8 / 11 https://www.phoenixcontact.com/us/products/1556252 Flush-type connector - SACC-E-FS-12CON-M16/0,5 SCO - 1556252 Classifications UNSPSC UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 Approvals Approvals Approvals EAC / cULus Recognized Ex Approvals Approval details EAC      B.00767 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E221474-20140616     Nominal voltage UN 30 V Nominal current IN 1.5 A mm²/AWG/kcmil 26 Accessories Accessories Protective cap 11/07/2019   Page 9 / 11 https://www.phoenixcontact.com/us/products/1556252 Flush-type connector - SACC-E-FS-12CON-M16/0,5 SCO - 1556252 Accessories Screw plug - PROT-M12 - 1680539 An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors     Screw plug - PROT-M12 SH - 1503302 An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type connectors     Screw plug - PROT-M12 FB - 1555538 M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type connectors for the food industry     Seal Flat gasket - SACC-M16-SEAL CLM - 1430394 M16 flat gasket, for rear mounting of M12 flush-type connectors with M16 fastening thread     Flat nut - SACC-E-MU-M16 - 1504097 Flat nut with M16 thread     11/07/2019   Page 10 / 11 https://www.phoenixcontact.com/us/products/1556252 Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 11/07/2019   Page 11 / 11
