1590276

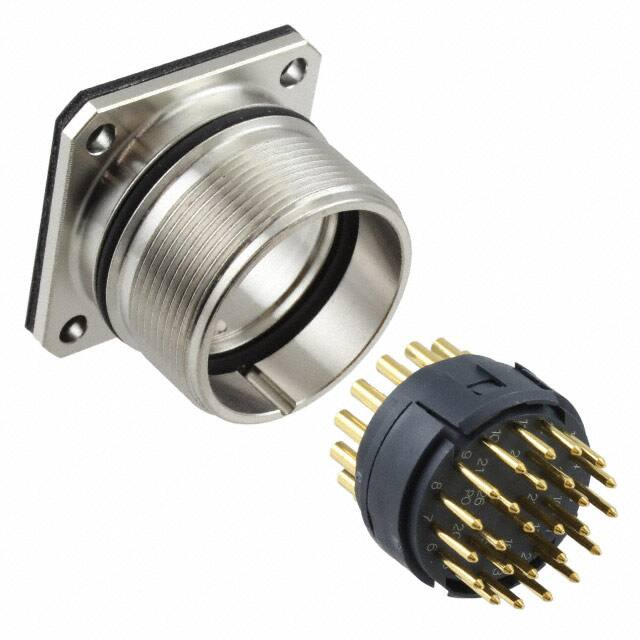

https://www.phoenixcontact.com/pi/products/1590276 Device connector, front mounting - HC-26P1N122300 - 1590276 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Device connector, front mounting, straight, Screw locking, M27, number of positions: 26, type of contact: Pin, Flat gasket, 4x Ø 3.2, shielded: yes, degree of protection: IP67, number of positions: 26, connection method: Solder connection Key Commercial Data Packing unit 24 pc GTIN GTIN 4046356186520 Technical data General Type of locking Screw locking Insertion/withdrawal cycles mechanical 50 Direction of rotation of contact chamber numbering Standard Coding N Contact connection method Solder connection Type of contacts Pin Number of positions 26 Contact diameter of power contacts 1 mm Litz wire cross section of power contacts min. 0.08 mm² Litz wire cross section of power contacts max. 1 mm² Rated current for power contacts 8A Pg housing screw connection none Mounting type 4x Ø 3.2 Ambient conditions Ambient temperature -20 °C ... 125 °C Degree of protection IP67 12/24/2021   Page 1 / 3 https://www.phoenixcontact.com/pi/products/1590276 Device connector, front mounting - HC-26P1N122300 - 1590276 Technical data Material Housing material Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Insulator material PA66 Contact material CuZn Contact surface Nickel-plated, gold coating Gasket and O-ring material NBR Specifications according to DIN EN 61984:2001 Installation height max. 2000 m Nominal / operating voltage of power contacts 48 V AC 74 V DC Rated surge voltage of power contacts 1.5 kV Overvoltage category of power contacts III Degree of pollution of power contacts 3 Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 years For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Schematic diagram Dimensional drawing 4xØ3,2/M3/ 23±0,1 Ø24+0,1 Dimensional drawing 1 30 2 23 Ø 3,2 M27x1 21,3 Classifications eCl@ss eCl@ss 10.0.1 27440109 12/24/2021   Page 2 / 3 https://www.phoenixcontact.com/pi/products/1590276 Device connector, front mounting - HC-26P1N122300 - 1590276 Classifications eCl@ss eCl@ss 11.0 27440109 eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440102 eCl@ss 9.0 27440103 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002635 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 43172015 UNSPSC 7.0901 43201404 UNSPSC 11 43172015 UNSPSC 12.01 43201404 UNSPSC 13.2 39121413 UNSPSC 18.0 39121413 UNSPSC 19.0 39121413 UNSPSC 20.0 39121413 UNSPSC 21.0 39121413 Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 12/24/2021   Page 3 / 3
