1593555

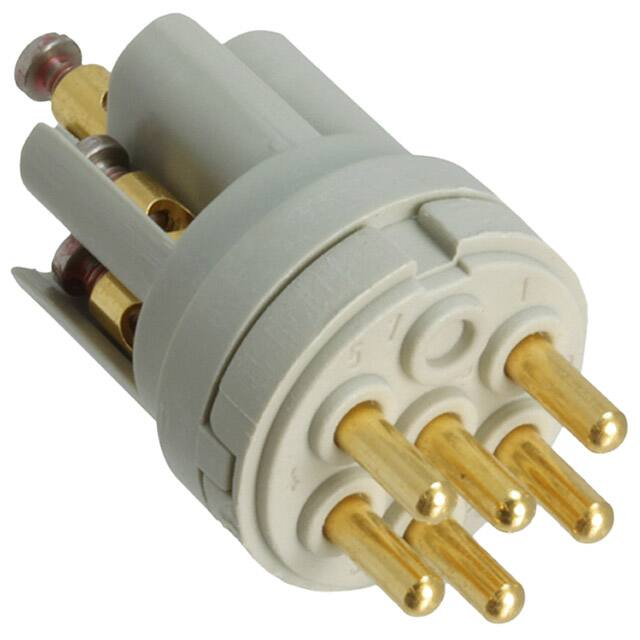

https://www.phoenixcontact.com/us/produkte/1593555 Contact insert - RC-06P1NS20000 - 1593555 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Contact insert, Number of positions: 6, Type of contact: Male connector, Screw connection   Key commercial data Packing unit 1 PCE GTIN Custom tariff number 85389099 Country of origin GERMANY Technical data Technical data Insertion/withdrawal cycles mechanical 50 Direction of rotation of contact chamber numbering Standard Coding N Contact connection method Screw connection Type of contacts Male connector Number of positions 6 Contact diameter of power contacts 2 mm Litz wire cross section of power contacts min. 0.08 mm² Litz wire cross section of power contacts max. 1 mm² Nominal current per power contact at 25°C 20 A Material data Insulator material PBT Contact material CuZn Contact surface Nickel-plated, gold coating 19.04.2013   Page 1 / 3 https://www.phoenixcontact.com/us/produkte/1593555 Contact insert - RC-06P1NS20000 - 1593555 Technical data Specifications according to DIN EN 61984:2001 Nominal / operating voltage of signal contacts 150 V Rated surge voltage of signal contacts 2.5 kV Surge voltage category of signal contacts II Pollution degree of signal contacts 3 Surge voltage category of power contacts II Pollution degree of power contacts 3 Classifications ETIM ETIM 3.0 EC001121 ETIM 4.0 EC001121 ETIM 5.0 EC001121 UNSPSC UNSPSC 11 43172015 UNSPSC 12.01 43201404 UNSPSC 13.2 43201404 UNSPSC 6.01 43172015 UNSPSC 7.0901 43201404 eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260708 eCl@ss 7.0 27440312 Drawings Schematic diagram Schematic diagram N 6 N 7 5 1 4 7 PO 6 PO 2 9 2 3 1 8 5 3 4 19.04.2013   Page 2 / 3 https://www.phoenixcontact.com/us/produkte/1593555 Contact insert - RC-06P1NS20000 - 1593555 Schematic diagram © Phoenix Contact 2013 - all rights reserved http://www.phoenixcontact.com 19.04.2013   Page 3 / 3
