1618207

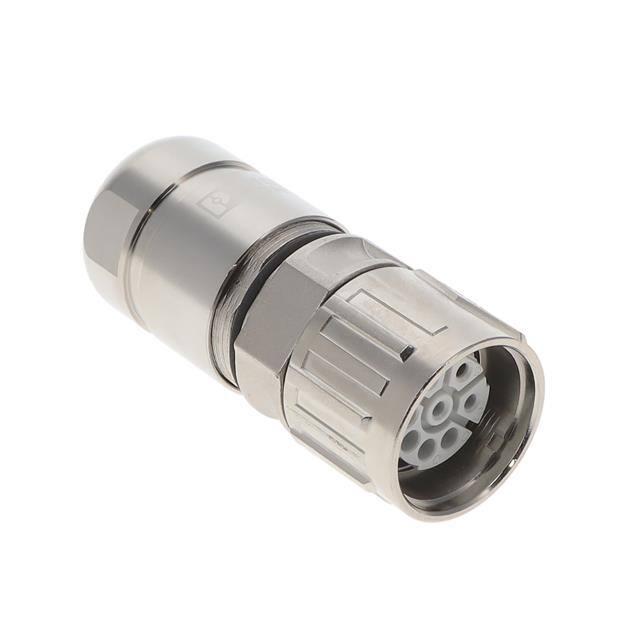

https://www.phoenixcontact.com/gb/products/1618207 Cable connector - SF-7ES1N8A80DUS - 1618207 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Cable connector, straight short, SPEEDCON locking, M23, Number of positions: 4+3+PE, Type of contact: Socket, Crimp connection, shielded: yes, Cable diameter: 7.5 mm...14 mm Why buy this product  Consistent EMC protection for reliable connection solutions in the industrial environment  Crimping connection: vibration- and temperature-resistant assembly  Flexible use: reliably connect cable diameters of 7.5 mm ... 14 mm  Molded designs with pre-assembled cables on one or both sides Key Commercial Data Packing unit 1 STK GTIN GTIN 4046356584555 Weight per Piece (excluding packing) 120.000 g Custom tariff number 85366990 Country of origin Germany Note Made to Order (non-returnable) Technical data General Note Order information: Order crimp contacts 4 x Ø 1 mm, 4 x Ø 2 mm separately Type of locking SPEEDCON locking Coding N Contact connection method Crimp connection Type of contacts Socket Number of positions 8 Contact diameter of power contacts 2 mm Nominal current per power contact at 25°C 30 A 12/22/2016   Page 1 / 7 https://www.phoenixcontact.com/gb/products/1618207 Cable connector - SF-7ES1N8A80DUS - 1618207 Technical data General Contact diameter of signal contacts 1 mm Litz wire cross section of signal contacts min. 0 mm² Nominal current per signal contact at 25°C 9A Conductor entry 7.5 mm ... 14 mm Pg housing screw connection none Ambient conditions Ambient temperature -40 °C ... 125 °C Degree of protection IP67 Specifications according to DIN EN 61984:2001 Installation height max. 3000 m Nominal / operating voltage of power contacts 630 V Rated surge voltage of power contacts 6 kV Overvoltage category of power contacts III Degree of pollution of power contacts 3 Nominal / operating voltage of signal contacts 250 V Rated surge voltage of signal contacts 4 kV Overvoltage category of signal contacts III Degree of pollution of signal contacts 3 Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Schematic diagram Dimensional drawing ! 64,8 1 3 D A Ø28,2 C Ø28 B Connector pin assignment Dimensional drawing 12/22/2016   Page 2 / 7 https://www.phoenixcontact.com/gb/products/1618207 Cable connector - SF-7ES1N8A80DUS - 1618207 Attenuation [dB] Diagram 120 100 80 60 40 20 0 30 100 1000 Frequency [MHz] Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260708 eCl@ss 7.0 27440312 eCl@ss 8.0 27440102 eCl@ss 9.0 27440103 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC001121 ETIM 5.0 EC002635 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 43172015 UNSPSC 7.0901 43201404 UNSPSC 11 43172015 UNSPSC 12.01 43201404 UNSPSC 13.2 39121413 Approvals Approvals Approvals UL Recognized / cUL Recognized / EAC / cULus Recognized Ex Approvals 12/22/2016   Page 3 / 7 https://www.phoenixcontact.com/gb/products/1618207 Cable connector - SF-7ES1N8A80DUS - 1618207 Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E153698-20041116     mm²/AWG/kcmil 4.0 Nominal current IN 27 A Nominal voltage UN 600 V cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E153698-20041116     mm²/AWG/kcmil 4.0 Nominal current IN 18 A Nominal voltage UN 600 V EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   Accessories Accessories Crimp contact Crimp contact - SF-7PS2000 - 1605636 Crimp contact, turned, Single contact, Contact diameter: 2 mm, Crimp range: 0.25 mm²...1 mm²     12/22/2016   Page 4 / 7 https://www.phoenixcontact.com/gb/products/1618207 Cable connector - SF-7ES1N8A80DUS - 1618207 Accessories Crimp contact - SF-7NS2000 - 1605631 Crimp contact, turned, Single contact, Contact diameter: 2 mm, Crimp range: 0.75 mm²...1.5 mm²     Crimp contact - SF-7QS2000 - 1605643 Crimp contact, turned, Single contact, Contact diameter: 2 mm, Crimp range: 1 mm²...2.5 mm²     Crimp contact - SF-6CS2000 - 1605562 Crimp contact, turned, Single contact, Contact diameter: 1 mm, Crimp range: 0.06 mm²...0.25 mm²     Crimp contact - SF-10KS004 - 1607356 Crimp contact, turned, Single contact, Contact diameter: 1 mm, Crimp range: 0.14 mm²...0.5 mm²     Crimp contact - SF-6AS2000 - 1605557 Crimp contact, turned, Single contact, Contact diameter: 1 mm, Crimp range: 0.25 mm²...1 mm²     Mounting material 12/22/2016   Page 5 / 7 https://www.phoenixcontact.com/gb/products/1618207 Cable connector - SF-7ES1N8A80DUS - 1618207 Accessories Color-coding - SF-Z0064 - 1620585 Color-coding, Color: green     Color-coding - SF-Z0065 - 1620586 Color-coding, Color: orange     Color-coding - SF-Z0066 - 1620587 Color-coding, Color: black     Torque screwdriver - SF-Z0028 - 1607456 Torque screwdriver     Hook wrench - SF-Z0027 - 1607455 Hook wrench     12/22/2016   Page 6 / 7 https://www.phoenixcontact.com/gb/products/1618207 Cable connector - SF-7ES1N8A80DUS - 1618207 Accessories Square mounting flange - SF-Z0068 - 1620927 Square mounting flange, 4xM3, Flange dimensions: 38 mm x 38 mm     Protective cover Plastic dust protection cap - RC-Z2058 - 1604223 Plastic dust protection cap for connectors with M23 knurled nuts     Plastic anti-static dust protection cap - RC-Z2468 - 1611796 Plastic dust protection cap, anti-static, for connectors with M23 knurled nuts     Metal dust protection cap - SC-Z2322 - 1605459 Metal dust protection cap with steel wire for power plugs with M23 knurled nuts     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 12/22/2016   Page 7 / 7
