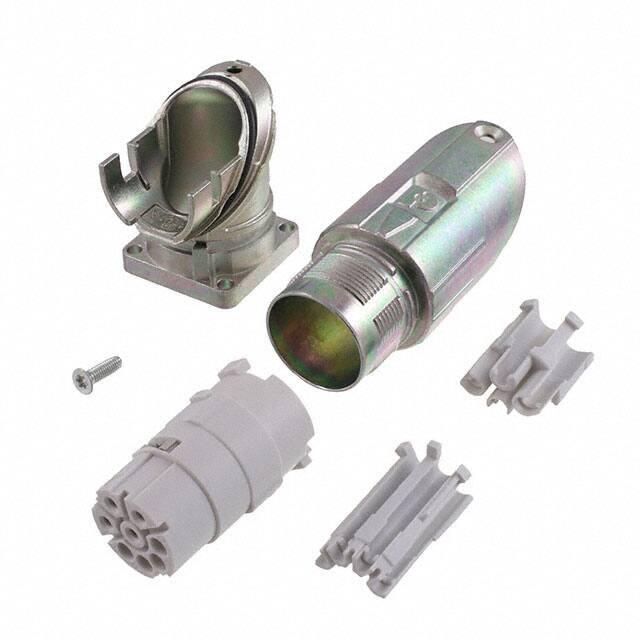

https://www.phoenixcontact.com/us/products/1628488 Device connector, front mounting - M23-7ES198AA600S - 1628488 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Device connector for front wall, M23 PRO, angled rotatable, for standard and ONECLICK fast locking system, M23, No. of pos.: 4+3+PE, type of contact: Socket, Crimp connection, flange dimensions: 28 mm x 28 mm Your advantages  Solutions with cross-manufacturer compatibility for standard and fast locking systems  Modern, consistent design for highly convenient operation Key Commercial Data Packing unit 1 pc GTIN GTIN 4055626622194 Weight per Piece (excluding packing) 120.000 g Custom tariff number 85366990 Country of origin Germany Technical data Temperature range Ambient temperature (operation) -40 °C ... 125 °C Data of the insulating body Note Order information: Order crimp contacts 4 x Ø 1 mm, 4 x Ø 2 mm separately Insulator material PA 6.6 Contact connection method Crimp connection Type of contacts Socket Application Power 06/05/2020   Page 1 / 8 https://www.phoenixcontact.com/us/products/1628488 Device connector, front mounting - M23-7ES198AA600S - 1628488 Technical data Data of the insulating body Number of positions 8 Contact diameter of power contacts 2 mm Litz wire cross section of power contacts min. 0.25 mm² Litz wire cross section of power contacts max. 4 mm² Rated current for power contacts 30 A Note for max. connection cross section Rated voltage of power contact 630 V Rated surge voltage 6 kV Overvoltage category III Degree of pollution 3 Contact diameter of signal contacts 1 mm Litz wire cross section of signal contacts min. 0.06 mm² Litz wire cross section of signal contacts max. 1 mm² Nominal current per signal contact 9A Note for max. connection cross section Rated voltage of signal contact 250 V Rated surge voltage 4 kV Overvoltage category III Degree of pollution 3 Note for max. connection cross section Installation height 2000 m Housing data Housing material GD-Zn Flange dimensions 28 mm x 28 mm Type of locking for standard and ONECLICK fast locking system Degree of protection (when plugged in) IP66 / IP68 (2m / 24h) / IP69K Thread type M23 Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 years For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 06/05/2020   Page 2 / 8 https://www.phoenixcontact.com/us/products/1628488 Device connector, front mounting - M23-7ES198AA600S - 1628488 Dimensional drawing Installation dimensions 06/05/2020   Page 3 / 8 https://www.phoenixcontact.com/us/products/1628488 Device connector, front mounting - M23-7ES198AA600S - 1628488 Diagram I = current strength, T = ambient temperature Dimensional drawing Technical drawings can be found under Downloads 06/05/2020   Page 4 / 8 https://www.phoenixcontact.com/us/products/1628488 Device connector, front mounting - M23-7ES198AA600S - 1628488 Schematic diagram Classifications eCl@ss eCl@ss 10.0.1 27440109 eCl@ss 8.0 27440102 eCl@ss 9.0 27440103 ETIM ETIM 5.0 EC002635 ETIM 6.0 EC002061 06/05/2020   Page 5 / 8 https://www.phoenixcontact.com/us/products/1628488 Device connector, front mounting - M23-7ES198AA600S - 1628488 Approvals Approvals Approvals UL Listed / cUL Listed / cULus Listed Ex Approvals Approval details UL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 600 V Nominal current IN 24 A mm²/AWG/kcmil 10 cUL Listed    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 600 V Nominal current IN 20 A mm²/AWG/kcmil 10 cULus Listed      E468743-20190627  E468743-20190627   Accessories Accessories Crimp contact 06/05/2020   Page 6 / 8 https://www.phoenixcontact.com/us/products/1628488 Device connector, front mounting - M23-7ES198AA600S - 1628488 Accessories Crimp contact - SF-20KS021 - 1621576 Crimp contact, turned, contact diameter: 2 mm, crimp range: 0.25 mm² ... 1 mm²     Crimp contact - SF-20KS022 - 1621577 Crimp contact, turned, contact diameter: 2 mm, crimp range: 1.5 mm² ... 2.5 mm²     Crimp contact - SF-20KS023 - 1621578 Crimp contact, turned, contact diameter: 2 mm, crimp range: 2.5 mm² ... 4 mm²     Crimp contact - ST-10KS010 - 1618239 Crimp contact, turned, Single contact, contact diameter: 1 mm, crimp range: 0.06 mm² ... 0.25 mm²     Crimp contact - ST-10KS035 - 1618464 Crimp contact, turned, contact diameter: 1 mm, crimp range: 0.25 mm² ... 1 mm²     Mounting material 06/05/2020   Page 7 / 8 https://www.phoenixcontact.com/us/products/1628488 Device connector, front mounting - M23-7ES198AA600S - 1628488 Accessories Screw - M23-Z0001 - 1035117 Anchor screw, self-tapping, for M23-PRO series angled device connectors     Protective cover Protective cap - RC-Z2058 - 1604223 Plastic protection cap for connectors with M23 knurled nut     Metal protective cap - SC-Z2319 - 1605456 Metal protection cap for power connectors with M23 external thread     Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 06/05/2020   Page 8 / 8
