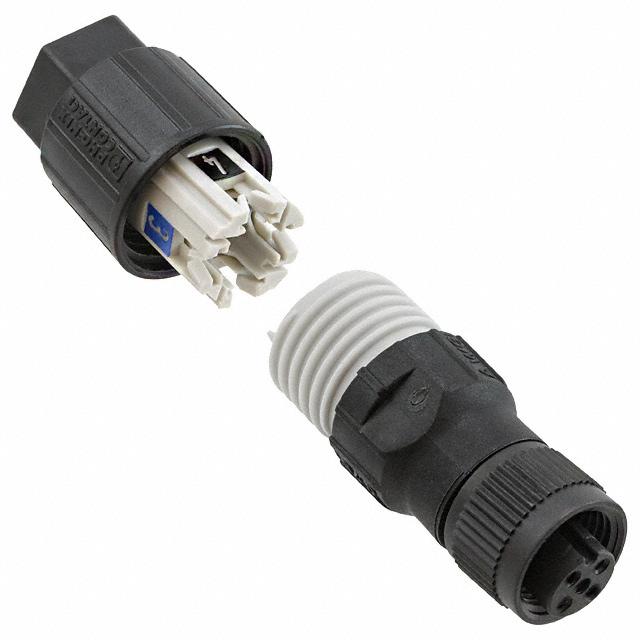

Extract from the online catalog     SACC-M12FS-4QO-0,75 Order No.: 1641756 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1641756   Sensor/actuator connector, socket, straight, 4-pos., M12, A-coded, QUICKON-ONE, plastic knurl, cable diameter max. 8 mm   Product notes WEEE/RoHS-compliant since: 12/01/2005 Commercial data GTIN (EAN) 4 017918 921873 sales group D121 Pack 1 pcs. Customs tariff 85366990 Catalog page information Page 48 (PC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data General data Rated current at 40°C 4A Rated voltage 250 V Number of positions 4 Volume resistance ≤ 5 mΩ PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 1 / 4 Jan 18, 2011 SACC-M12FS-4QO-0,75 Order No.: 1641756 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1641756 Insulation resistance ≥ 100 MΩ Ambient temperature (operation) -25 °C ... 80 °C (Male connector / female connector) General characteristics Standards/regulations M12 connector IEC 61076-2-101 Coding A - standard Surge voltage category II Pollution degree 3 Degree of protection IP65/67 Contact material CuSn Contact surface material Ni/Au Contact carrier material PA 66 Material of grip body PA 66 Material, knurls Plastic Sealing material NBR Type of connection QUICKON fast connection Conductor cross section stranded min. 0.34 mm² Conductor cross section stranded max. 0.75 mm² Conductor cross section AWG/kcmil min. 22 Conductor cross section AWG/kcmil max 18 Wire diameter including insulation 1.3 mm ... 2.6 mm Frequency of connections between conductors of the same cross section 10 External cable diameter 4 mm ... 8 mm Wire insulation material PVC/PE/PP Tightening torque, union nut 1.2 Nm Wrench size, union nut 15 mm Structure of individual litz in acc. with VDE 0295 / smallest wire diameter Class 2-6 Status display No Certificates / Approvals Certification PHOENIX CONTACT Inc., USA http://www.phoenixcon.com CUL, GOST, UL Page 2 / 4 Jan 18, 2011 SACC-M12FS-4QO-0,75 Order No.: 1641756 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1641756 Accessories Item Designation Description 1641992 QSS 15 Allen wrench, for loosening and fastening the QUICKON union nut, WAF 15 mm 1208432 SAC BIT M12-D15 Nut for assembling sensor/actuator cables with M12 connector and for M12 connectors with QUICKON fast connection technology, for 4 mm hexagonal drive 1208429 TSD 04 SAC Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors 1212224 TSD-M 1,2NM Torque screw driver, accuracy as per EN ISO 6789 standard, adjustable from 0.3 ‑ 1.2 Nm Tools Diagrams/Drawings Dimensioned drawing M12 x 1 female connector, straight Schematic diagram Pin assignment M12 socket, 4-pos., A-coded, view female side PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 3 / 4 Jan 18, 2011 SACC-M12FS-4QO-0,75 Order No.: 1641756 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1641756 Address PHOENIX CONTACT Inc., USA 586 Fulling Mill Road Middletown, PA 17057,USA Phone (800) 888-7388 Fax (717) 944-1625 http://www.phoenixcon.com © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 4 / 4 Jan 18, 2011
