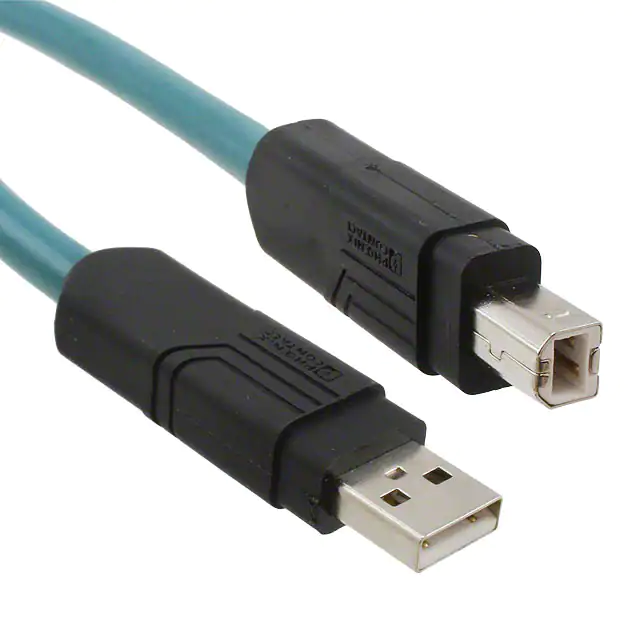

Extract from the online catalog     VS-04-2X2X26C7/7-SDA/SDB/1,0 Order No.: 1654853 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1654853   Assembled USB cable, shielded, color: RAL 5021 (water blue), PUR outer sheath, USB type A/standard on USB type B/standard, length: 1 m   Product notes WEEE/RoHS-compliant since: 08/29/2006 Commercial data GTIN (EAN) 4 017918 984199 sales group D532 Pack 1 pcs. Customs tariff 85444290 Catalog page information Page 311 (PC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data Mechanical characteristics Number of positions 4 Shielded Yes Insertion/withdrawal cycles ≥ 500 External cable diameter 6.7 mm PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 1 / 5 Feb 24, 2011 VS-04-2X2X26C7/7-SDA/SDB/1,0 Order No.: 1654853 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1654853 Cable diameter 6.70 mm Cable structure 2x2xAWG26/7 + 2xAWG20/19; S/FTP Length of cable 1m Ambient temperature (operation) -20 °C ... 60 °C (cable, fixed installation) 0 °C ... 50 °C (cable, flexible installation) (Male connector / female connector) Material data Housing material PA Outer sheath, material PUR External sheath, color water blue RAL 5021 Degree of protection IP20 Electrical characteristics Rated voltage (III/3) 125 V Rated current 1A Transmission characteristics (category) USB 2.0 Line characteristics Cable type FireWire Conductor cross section 0.14 mm² (signal line) 0.5 mm² (Power supply) AWG signal line 26 Conductor structure signal line 7x 0.15 mm AWG power supply 20 Conductor structure, voltage supply 19x 0.20 mm Core diameter including insulation 1 mm (signal line) External cable diameter 6.70 mm Wire colors White-blue, white-orange, gray, black External sheath, color water blue RAL 5021 Insulation resistance 5 GΩ*km Conductor resistance 150 mΩ/m Transmission characteristics (category) CAT7, for USB 2.0 (480 Mbps) Working capacitance 42 pF Wave impedance 100 Ω ±5% (signal line) Signal speed 0.72 c Signal runtime 46 ns/m PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 2 / 5 Feb 24, 2011 VS-04-2X2X26C7/7-SDA/SDB/1,0 Order No.: 1654853 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1654853 Shield attenuation 60 dB (Up to 1000 MHz) Interference suppression 90 dB (Up to 1000 MHz) Nominal voltage, conductor 125 V Test voltage, conductor 1000 V Twisted pairs 2 cores to the pair Type of pair shielding Aluminum-lined polyester foil Overall twist Two pairs and two power supply wires to the core Shielding Braided shielding made of galvanized copper wires Optical shield covering 65 % Outer sheath, material PUR Material conductor insulation Cell PE (signal line) PVC (Power supply) Conductor material Bare Cu litz wires Cable weight 56 kg/km Smallest bending radius, fixed installation ≥ 35 mm Smallest bending radius, movable installation ≥ 35 mm Ambient temperature (operation) -20 °C ... 60 °C (cable, fixed installation) 0 °C ... 50 °C (cable, flexible installation) Diagrams/Drawings Dimensioned drawing USB plug connector, type A, Standard PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de USB plug connector, type B, standard Page 3 / 5 Feb 24, 2011 VS-04-2X2X26C7/7-SDA/SDB/1,0 Order No.: 1654853 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1654853 Circuit diagram Schematic diagram Pin assignment plug USB, type A Connector pin assignment plug USB, type B PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 4 / 5 Feb 24, 2011 VS-04-2X2X26C7/7-SDA/SDB/1,0 Order No.: 1654853 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1654853 Address PHOENIX CONTACT Deutschland GmbH Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 12000 Fax +49 5235 3 41200 http://www.phoenixcontact.de © 2011 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 5 / 5 Feb 24, 2011
