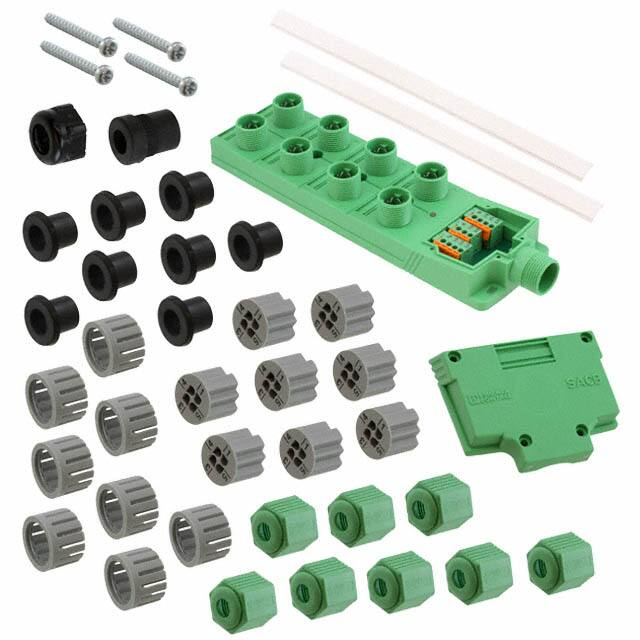

https://www.phoenixcontact.com/pi/products/1662955 Sensor/actuator box - SACB-8Q/4P-L-SC - 1662955 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator box, application: Standard, connection method: QUICKON, 0.34 mm² ... 0.75 mm², number of slots: 8, number of positions: 4, slot assignment: single, status display: yes, pnp; master cable connection: Spring-cage connection 180°, shielding: no Your advantages  Safety in the field, thanks to molded housing and high degree of protection  Flexible, distributed bundling of signals in one master cable  Convenient: increased machine availability thanks to quick and easy diagnostics  Innovative and time-saving assembly with insulation displacement connection  Flexible: distributor box with connector hood for on-site assembly Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918137472 Sales Key 02 Technical data General Rated voltage 24 V DC Max. operating voltage Umax 30 V DC Current carrying capacity per I/O signal 4A Current carrying capacity per slot 4A Total rated current 12 A Number of positions 4 Number of slots 8 Flammability rating according to UL 94 V0 Sensor/actuator connection system QUICKON 12/17/2021   Page 1 / 8 https://www.phoenixcontact.com/pi/products/1662955 Sensor/actuator box - SACB-8Q/4P-L-SC - 1662955 Technical data General Note NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". Ambient conditions Degree of protection IP65 IP67 Ambient temperature (operation) -25 °C ... 60 °C Local diagnostics function Local diagnostics Supply voltage per module Green LED Status display I/O Yellow LED Master cable data/connection data Connection method Spring-cage connection Conductor cross section min. (signal) 0.14 mm² Conductor cross section max. (signal) 1 mm² Conductor cross section AWG min. (signal) 26 Conductor cross section AWG max. (signal) 17 Stripping length (signal) 10 mm Conductor cross section min. (energy) 0.2 mm² Conductor cross section max. (energy) 1.5 mm² Conductor cross section AWG min. (energy) 24 Conductor cross section AWG max. (energy) 16 External cable diameter min. 6.5 mm External cable diameter max. 9.5 mm Stripping length 70 mm (Master cable) Tightening torque, union nut 2.5 Nm Conductor data Structure of individual litz in acc. with VDE 0295 / smallest wire diameter Class 2-6 // 0.34 mm²: 0.1 mm; 0.5 - 0.75 mm²: 0.15 mm Wire insulation material PVC / PE Wire diameter including insulation ≤ 2.5 mm Minimum external conductor diameter 4 mm Maximum external conductor diameter 7.5 mm Tightening torque, union nut 2.5 Nm Wrench size, union nut 22 mm Note on the frequency of connections if the conductor is connected more than once, seal and cap may need to be replaced. Conductor cross section flexible min. 0.34 mm² Conductor cross section flexible max. 0.75 mm² Conductor cross section AWG min. 22 12/17/2021   Page 2 / 8 https://www.phoenixcontact.com/pi/products/1662955 Sensor/actuator box - SACB-8Q/4P-L-SC - 1662955 Technical data Conductor data Conductor cross section AWG max. 18 Insulation material Housing material PA Material of the moulding mass PUR Contact material Steel/copper Contact surface material Sn Contact carrier material PA 6.6 Material of contact, master cable side CuZn Material of contact surface, master cable side NiSn Material of the contact carrier on the master cable side PA 6.6 V0 Pin assignment Slot/position = Wire color or connection 1 / 4 (A) = 1 / 4 2 / 4 (A) = 2 / 4 3 / 4 (A) = 3 / 4 4 / 4 (A) = 4 / 4 5 / 4 (A) = 5 / 4 6 / 4 (A) = 6 / 4 7 / 4 (A) = 7 / 4 8 / 4 (A) = 8 / 4 1-8 / 1 (+ 24 V) = UN 1-8 / 3 (0 V) = 0 V 1-8 / 5 (PE) = PE Standards and Regulations Connection in acc. with standard CUL Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings Schematic diagram 5 1 Circuit diagram - 1/4 2/4 4/4 5/4 6/4 7/4 8/4 + 3 4 4 QUICKON connection, 4-pos. 3 4 1 3 5 5 1 4 1 3 5 2 4 1 3 5 4 4 1 3 5 5 4 1 3 5 6 4 1 3 1 5 7 8 12/17/2021   Page 3 / 8 https://www.phoenixcontact.com/pi/products/1662955 Sensor/actuator box - SACB-8Q/4P-L-SC - 1662955 Classifications eCl@ss eCl@ss 10.0.1 27440111 eCl@ss 4.0 27140800 eCl@ss 4.1 27140800 eCl@ss 5.0 27143400 eCl@ss 5.1 27250300 eCl@ss 6.0 27279200 eCl@ss 7.0 27279219 eCl@ss 9.0 27440108 ETIM ETIM 2.0 EC000200 ETIM 3.0 EC001856 ETIM 4.0 EC002585 ETIM 6.0 EC002585 ETIM 7.0 EC002585 UNSPSC UNSPSC 6.01 31261501 UNSPSC 7.0901 31261501 UNSPSC 11 31261501 UNSPSC 12.01 31261501 UNSPSC 13.2 31251501 UNSPSC 19.0 31251501 UNSPSC 20.0 31251501 UNSPSC 21.0 31251501 Approvals Approvals Approvals UL Recognized / cUL Recognized / EAC / EAC / EAC / cULus Recognized Ex Approvals Approval details 12/17/2021   Page 4 / 8 https://www.phoenixcontact.com/pi/products/1662955 Sensor/actuator box - SACB-8Q/4P-L-SC - 1662955 Approvals UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 24 V mm²/AWG/kcmil 22-16 cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 24 V mm²/AWG/kcmil 22-16  FILE E 118976  FILE E 118976     RU CDE.AI30.B.01102 EAC      EAC-Zulassung EAC      RU CDE.BL08.B.00511 cULus Recognized       EAC  Accessories Accessories Cable by the meter Master cable ring - SACB- 8X0,34/ 3X0,75-50,0 PUR - 1503344 Master cable for sensor/actuator boxes, with PE conductor, unshielded, material PUR/PVC, 11-pos., 8 x 0.34 mm² and 3 x 0.75 mm²     12/17/2021   Page 5 / 8 https://www.phoenixcontact.com/pi/products/1662955 Sensor/actuator box - SACB-8Q/4P-L-SC - 1662955 Accessories Labeled terminal marker Marker for terminal blocks - UC-TMF 16 CUS - 0824678 Marker for terminal blocks, can be ordered: by sheet, white, labeled according to customer specifications, mounting type: snap into flat marker groove, for terminal block width: 16 mm, lettering field size: 15.45 x 5.1 mm, Number of individual labels: 32     Marker for terminal blocks - UC-TMF 16 YE CUS - 0824684 Marker for terminal blocks, can be ordered: by sheet, yellow, labeled according to customer specifications, mounting type: snap into flat marker groove, for terminal block width: 16 mm, lettering field size: 15.45 x 5.1 mm, Number of individual labels: 32     Pressure nut Screw connection set - Q SET-11/4 COD1 SACB-Q - 1670743 QUICKON set for replacement purposes, consisting of pressure nut, cap, line seal and splice ring     Screwdriver tools Philips screwdriver - SZK PZ1 VDE - 1206450 Screwdriver, PZ crosshead, VDE insulated, size: PZ 1 x 80 mm, 2-component grip, with non-slip grip     Tool - SAC BIT HOOD-W 24 - 1212486 Nut for assembling pressure nuts with 24 mm wrench size, for 4 mm hexagonal drive     12/17/2021   Page 6 / 8 https://www.phoenixcontact.com/pi/products/1662955 Sensor/actuator box - SACB-8Q/4P-L-SC - 1662955 Accessories Screw insert - SF-BIT-PZ 1-50 - 1212591 Screw bit, PZ crosshead, E6.3-1/4" drive, size: PZ 1 x 50 mm, hardened, suitable for holder according to DIN 3126F6.3/ISO 1173     Seal Seal - SACB-D PG 13,5 (4,0-6,5) YE - 1680377 Rubber seal for Pg13.5 screw connection, for 4.0 mm ... 6.5 mm cable diameter     Seal - SACB-D PG 13,5 (6,5-9,5) BK - 1680380 Rubber seal for Pg13.5 screw connection, for 6.5 mm ... 9.5 mm cable diameter     Seal - SACB-D PG 13,5 (9,0-13,0) RD - 1680393 Rubber seal for Pg13.5 screw connection, for 9.0 mm ... 13.0 mm cable diameter     Sealing plugs Filler plugs - Q-PROT 9/11 - 1670235 Closing cap for Pg9/Pg11 to close unoccupied connections     Socket spanner 12/17/2021   Page 7 / 8 https://www.phoenixcontact.com/pi/products/1662955 Sensor/actuator box - SACB-8Q/4P-L-SC - 1662955 Accessories Socket wrench - QSS 22 - 1670206 Allen wrench, for loosening and fastening the QUICKON union nut, WAF 22 mm     Terminal marking Marker for terminal blocks - UC-TMF 16 - 0819262 Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: snapped, for terminal block width: 16 mm, lettering field size: 15.45 x 5.1 mm, Number of individual labels: 32     Marker for terminal blocks - UC-TMF 16 YE - 0819259 Marker for terminal blocks, Sheet, yellow, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: snapped, for terminal block width: 16 mm, lettering field size: 15.45 x 5.1 mm, Number of individual labels: 32     Torque tool Torque screwdriver - TSD 25 SAC - 1212315 Torque screwdriver, with preset torque of 2.5 Nm and 4 mm hexagonal drive for the pressure nut of the connector hood     Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 12/17/2021   Page 8 / 8
