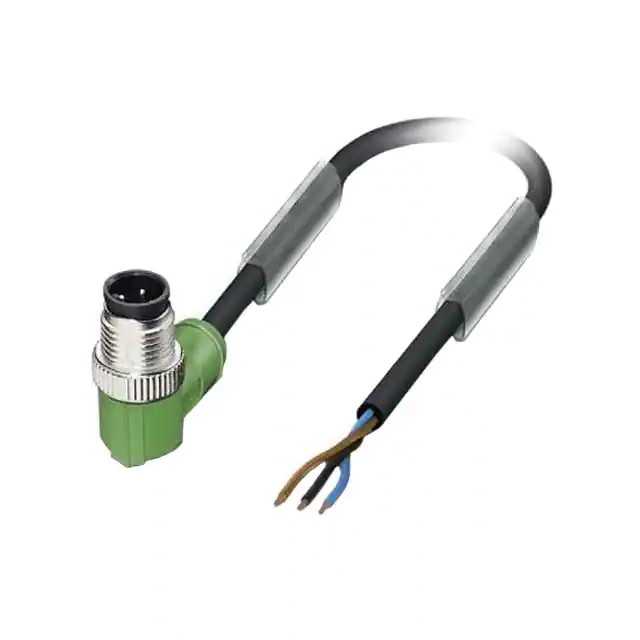

https://www.phoenixcontact.com/us/products/1668140 Sensor/Actuator cable - SAC-3P-M12MR/3,0-PUR - 1668140 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/Actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug angled M12, A-coded, on free cable end, Cable length: 3 m Product Features ■ ■ Easy and safe: 100% electrically tested plug-in components Our standard: robust halogen-free PUR cable Key Commercial Data Packing unit 1 pc Weight per Piece (excluding packing) 82.9 g Custom tariff number 85444290 Country of origin Germany Technical data Dimensions Length of cable 3m Stripping length of the free conductor end 50 mm Ambient conditions Ambient temperature (operation) -25 °C ... 90 °C (Plug / socket) Degree of protection IP65 IP67 IP68 General Rated current at 40°C 4A Rated voltage 250 V Number of positions 3 Insulation resistance ≥ 100 MΩ 03/31/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1668140 Sensor/Actuator cable - SAC-3P-M12MR/3,0-PUR - 1668140 Technical data General Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Protective circuit/component Unwired Overvoltage category II Degree of pollution 3 Insertion/withdrawal cycles ≥ 100 Torque 0.4 Nm (M12 connector) Material Flammability rating according to UL 94 HB Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, nickel-plated Sealing material NBR Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 HB Cable Cable type PUR halogen-free black Cable type (abbreviation) PUR Cable abbreviation Li9Y11Y UL AWM style 20549 Conductor cross section 3x 0.34 mm² (Signal line) AWG signal line 22 Conductor structure signal line 42x 0.10 mm Core diameter including insulation 1.27 mm ±0.02 mm (Signal line) Thickness, insulation ≥ 0.21 mm (Core insulation) Wire colors brown, blue, black Overall twist 3 wires, twisted External sheath, color black-gray RAL 7021 Outer sheath thickness approx. 0.8 mm External cable diameter D 4.4 mm ±0.15 mm Smallest bending radius, fixed installation 22 mm 03/31/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1668140 Sensor/Actuator cable - SAC-3P-M12MR/3,0-PUR - 1668140 Technical data Cable Smallest bending radius, movable installation 44 mm Number of bending cycles 4000000 Bending radius 44 mm Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Cable weight 26 kg/km Outer sheath, material PUR Material conductor insulation PP Conductor material Bare Cu litz wires Insulation resistance ≥ 100 GΩ*km (at 20 °C) Conductor resistance max. 58 Ω/km (at 20 °C) Nominal voltage, cable ≤ 300 V Test voltage, cable ≥ 3000 V Special properties Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Flame resistance in accordance with DIN UL-Style 20549 Halogen-free in accordance with DIN VDE 0472 part 815 Resistance to oil in accordance with DIN EN 60811-2-1 Other resistance Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant partly UV-resistant in accordance with DIN EN ISO 4892-2-A Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -25 °C ... 80 °C (cable, flexible installation) Classifications eCl@ss eCl@ss 4.0 27060306 eCl@ss 4.1 27060306 eCl@ss 5.0 27061801 eCl@ss 5.1 27061801 eCl@ss 6.0 27061801 eCl@ss 7.0 27061801 eCl@ss 8.0 27279218 03/31/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1668140 Sensor/Actuator cable - SAC-3P-M12MR/3,0-PUR - 1668140 Classifications ETIM ETIM 2.0 EC000830 ETIM 3.0 EC001855 ETIM 4.0 EC001855 ETIM 5.0 EC001855 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Listed / cUL Listed / EAC / cULus Listed Ex Approvals Approvals submitted Approval details UL Listed      Nominal current IN 4A Nominal voltage UN 300 V 03/31/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1668140 Sensor/Actuator cable - SAC-3P-M12MR/3,0-PUR - 1668140 Approvals cUL Listed      Nominal current IN 4A Nominal voltage UN 300 V EAC  cULus Listed  Drawings Schematic diagram 4 Cable cross section 3 1 Pin assignment M12 plug, 3-pos., A-coded, view male side PUR halogen-free black [PUR] Dimensional drawing Circuit diagram Ø14,8 1 BN 4 BK 3 BU Ø11 30,2 M12 34,5 Contact assignment of the M12 plug M12 x 1 male plug, angled Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/31/2016   Page 5 / 5
