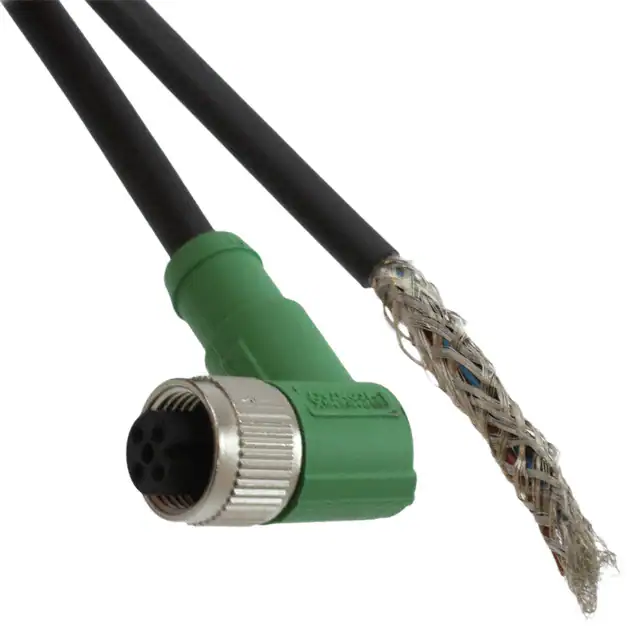

Extract from the online catalog     SAC-4P- 5,0-PUR/M12FR SH Order No.: 1682922 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1682922   Sensor/Actuator cable, 4-position, PUR, halogen-free, Black-gray RAL 7021, shielded, Free conductor end, on Socket, angled M12, A-coded, Cable length: 5 m   Product notes WEEE/RoHS-compliant since: 11/17/2006 Commercial data EAN 4017918169206 Pack 1 pcs. Customs tariff 85444290 Weight/Piece 0.2511 KG Catalog page information Page 85 (PC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data General data Nominal current IN 4A Nominal voltage UN 250 V Number of positions 4 Volume resistance ≤ 5 mΩ PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 1 / 6 Feb 23, 2010 SAC-4P- 5,0-PUR/M12FR SH Order No.: 1682922 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1682922 Insulation resistance ≥ 100 MΩ Length of cable 5m Stripping length of the free conductor end 50 mm General characteristics Coding A - standard Surge voltage category II Pollution degree 3 Degree of protection IP65/IP67/IP69K Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, (nickel-plated) Sealing material NBR Status display No Conductor data Cable type PUR halogen-free black shielded Cable type (abbreviation) PUR Cable abbreviation Li9Y-V1-C-V1-11Y Conductor cross section 0.34 mm² AWG signal line 22 Conductor structure, signal line 42x 0.10 mm Core diameter including insulation 1.27 mm ±0.02 mm Thickness, insulation ≥ 0.21 mm (Core insulation) Approx. 1 mm (Outer cable sheath) External cable diameter 5.90 mm Wire colors Brown, white, blue, black External sheath, color Black-gray RAL 7021 Insulation resistance ≥ 100 GΩ*km Conductor resistance max. 58 Ω/km Nominal voltage, conductor ≤ 300 V Test voltage, conductor ≥ 3000 V Overall twist 4 wires, twisted Shielding Braided shielding made of tin-plated copper wires PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 2 / 6 Feb 23, 2010 SAC-4P- 5,0-PUR/M12FR SH Order No.: 1682922 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1682922 Optical shield covering 85 % Outer sheath, material PUR Material conductor insulation PP Conductor material Bare Cu litz wires Cable weight 47 kg/km Smallest bending radius, fixed installation 59 mm Smallest bending radius, movable installation 59 mm Number of bending cycles 4000000 Bending radius 50 mm Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (cable, flexible installation) Special properties Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Flame resistance As per UL-Style 20549 Freedom from halogen As per DIN VDE 0472 part 815 Resistance to oil complying with DIN EN 60811-2-1 Other resistance Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant Certificates / Approvals Certification PHOENIX CONTACT Inc., USA http://www.phoenixcon.com CUL Listed, GOST, UL Listed Page 3 / 6 Feb 23, 2010 SAC-4P- 5,0-PUR/M12FR SH Order No.: 1682922 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1682922 Diagrams/Drawings Diagram Dimensioned drawing M12 x 1 female connector, angled, shielded Circuit diagram Contact assignment of the M12 socket PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 4 / 6 Feb 23, 2010 SAC-4P- 5,0-PUR/M12FR SH Order No.: 1682922 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1682922 Schematic diagram Pin assignment M12 socket, 4-pos., A-coded, view female side PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 5 / 6 Feb 23, 2010 SAC-4P- 5,0-PUR/M12FR SH Order No.: 1682922 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1682922 Address PHOENIX CONTACT Inc., USA 586 Fulling Mill Road Middletown, PA 17057,USA Phone (800) 888-7388 Fax (717) 944-1625 http://www.phoenixcon.com © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 6 / 6 Feb 23, 2010
