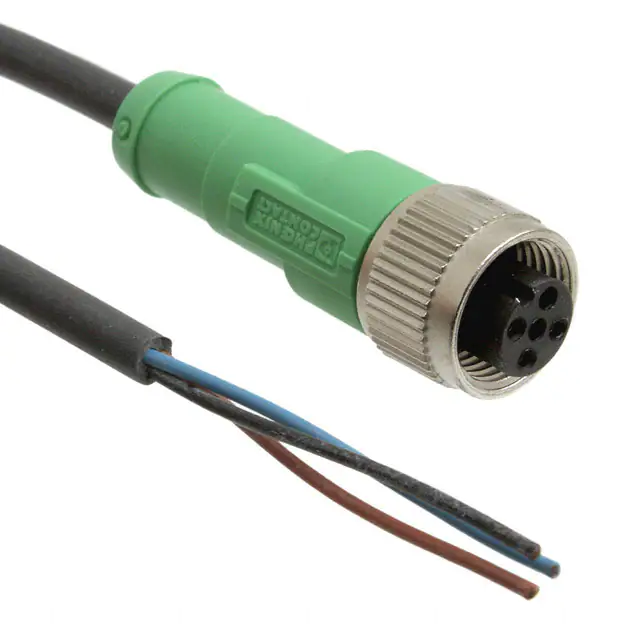

Extract from the online catalog     SAC-3P- 5,0-PUR/M12FS Order No.: 1683510 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1683510   Sensor/Actuator cable, 3-position, PUR, halogen-free, Black-gray RAL 7021, Free conductor end, on Socket, straight M12, A-coded, Cable length: 5 m   Product notes WEEE/RoHS-compliant since: 12/01/2005 Commercial data GTIN (EAN) 4 017918 185831 sales group D110 Pack 1 pcs. Customs tariff 85444290 Catalog page information Page 76 (PC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data General data Rated current at 40°C 4A Rated voltage 250 V Number of positions 3 Volume resistance ≤ 5 mΩ PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 1 / 5 Feb 15, 2011 SAC-3P- 5,0-PUR/M12FS Order No.: 1683510 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1683510 Insulation resistance ≥ 100 MΩ Length of cable 5m Stripping length of the free conductor end 50 mm Ambient temperature (operation) -25 °C ... 90 °C (Male connector / female connector) General characteristics Standards/regulations M12 connector IEC 61076-2-101 Coding A - standard Surge voltage category II Pollution degree 3 Degree of protection IP65/IP68/IP69K Insertion/withdrawal cycles ≥ 100 Contact material CuSn Contact surface material Ni/Au Contact carrier material TPU GF Material of grip body TPU, hardly inflammable, self-extinguishing Material, knurls Zinc die-cast, (nickel-plated) Sealing material NBR Status display No Conductor data Cable type PUR halogen-free black Cable type (abbreviation) PUR Cable abbreviation Li9Y11Y Conductor cross section 0.34 mm² AWG signal line 22 Conductor structure signal line 42x 0.10 mm Core diameter including insulation 1.27 mm ±0.02 mm Thickness, insulation ≥ 0.21 mm (Core insulation) ≥ 0.76 mm (Outer cable sheath) External cable diameter 4.40 mm Wire colors Brown, blue, black External sheath, color Black-gray RAL 7021 Insulation resistance ≥ 100 GΩ*km Conductor resistance ≤ 58 Ω/m Nominal voltage, conductor 300 V PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 2 / 5 Feb 15, 2011 SAC-3P- 5,0-PUR/M12FS Order No.: 1683510 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1683510 Test voltage, conductor 3000 V Overall twist 3 wires, twisted Outer sheath, material PUR Material conductor insulation PP Conductor material Bare Cu litz wires Cable weight 26 kg/km Smallest bending radius, movable installation 44 mm Number of bending cycles 4000000 Bending radius 44 mm Traversing path 10 m Traversing rate 3 m/s Acceleration 10 m/s² Ambient temperature (operation) -40 °C ... 80 °C (cable, fixed installation) -5 °C ... 80 °C (cable, flexible installation) Special properties Flexible cable conduit capable Silicone-free Free of substances which would hinder coating with paint or varnish Flame resistance in accordance with DIN UL-Style 20549 Halogen-free in accordance with DIN VDE 0472 part 815 Resistance to oil in accordance with DIN EN 60811-2-1 Other resistance Highly resistant to acids, alkaline solutions and solvents hydrolysis and microbe resistant Certificates / Approvals Certification PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de CUL Listed, UL Listed Page 3 / 5 Feb 15, 2011 SAC-3P- 5,0-PUR/M12FS Order No.: 1683510 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1683510 Diagrams/Drawings Dimensioned drawing M12 x 1 female connector, straight Circuit diagram Contact assignment of the M12 socket Schematic diagram Pin assignment M12 socket, 3-pos., A-coded, view female side PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 4 / 5 Feb 15, 2011 SAC-3P- 5,0-PUR/M12FS Order No.: 1683510 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1683510 Address PHOENIX CONTACT Deutschland GmbH Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 12000 Fax +49 5235 3 41200 http://www.phoenixcontact.de © 2011 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 5 / 5 Feb 15, 2011
