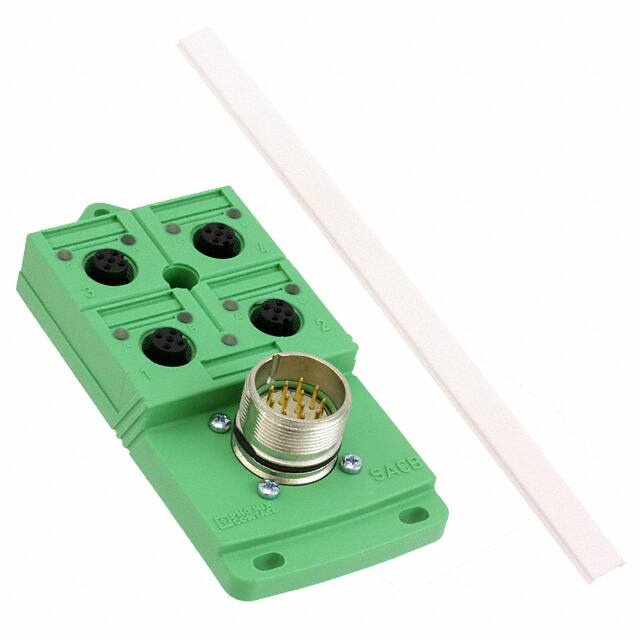

https://www.phoenixcontact.com/pi/products/1692404 Sensor/actuator box - SACB-4/ 4-L-M23 - 1692404 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator box, application: Standard, connection method: M12 socket Plastic, number of slots: 4, number of positions: 4, coding: A - standard, slot assignment: single, status display: yes, pnp; master cable connection: M23 plug connection 90°, shielding: no Your advantages  Safety in the field, thanks to molded housing and high degree of protection  Convenient: increased machine availability thanks to quick and easy diagnostics Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918177867 Sales Key 02 Technical data General Rated voltage 24 V DC Max. operating voltage Umax 30 V DC Current carrying capacity per I/O signal 2A Current carrying capacity per slot 4A Total rated current 12 A Number of positions 4 Number of slots 4 Flammability rating according to UL 94 V0 Sensor/actuator connection system M12 socket Note NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. 12/17/2021   Page 1 / 8 https://www.phoenixcontact.com/pi/products/1692404 Sensor/actuator box - SACB-4/ 4-L-M23 - 1692404 Technical data General Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". Ambient conditions Degree of protection IP65 IP67 Ambient temperature (operation) -20 °C ... 75 °C Local diagnostics function Local diagnostics Supply voltage Green LED Status display I/O Yellow LED Master cable data/connection data Connection method M23 plug connection Tightening torque slot sensor/actuator cable 0.4 Nm Insulation material Housing material PA Contact material CuSn Contact surface material Ni/Au Contact carrier material PA Material of contact, master cable side CU alloy Material of contact surface, master cable side gold-plated Material of threaded sleeve PA O-ring material NBR Pin assignment Slot/position = Wire color or connection 1 / 4 (A) = 1 2 / 4 (A) = 2 3 / 4 (A) = 3 4 / 4 (A) = 4 1-4 / 1 (+ 24 V) = 11 1-4 / 3 (0 V) = 9+10 1-4 / 5 (PE) = 12 Environmental Product Compliance REACh SVHC Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 years For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 12/17/2021   Page 2 / 8 https://www.phoenixcontact.com/pi/products/1692404 Sensor/actuator box - SACB-4/ 4-L-M23 - 1692404 Schematic diagram Schematic diagram 4 3 8 5 7 6 1 M12 slot, socket, 4-pos. 9 12 10 PO 11 5 4 1 2 3 M23 plug connection pin, 12-pos. Circuit diagram 0V 1/4 2/4 4 3 4 1 5 3 3 3 4 1 5 6 UN 8/4 4 1 5 2 7/4 4 1 5 1 6/4 3 1 5 7 8 Classifications eCl@ss eCl@ss 10.0.1 27440111 eCl@ss 11.0 27440111 eCl@ss 4.0 27140800 eCl@ss 4.1 27140800 eCl@ss 5.0 27143400 eCl@ss 5.1 27250300 eCl@ss 6.0 27279200 eCl@ss 7.0 27279219 eCl@ss 9.0 27440108 ETIM ETIM 2.0 EC000200 ETIM 3.0 EC001856 ETIM 4.0 EC002585 ETIM 6.0 EC002585 UNSPSC UNSPSC 6.01 31261501 UNSPSC 7.0901 31261501 UNSPSC 11 31261501 UNSPSC 12.01 31261501 12/17/2021   Page 3 / 8 https://www.phoenixcontact.com/pi/products/1692404 Sensor/actuator box - SACB-4/ 4-L-M23 - 1692404 Classifications UNSPSC UNSPSC 13.2 31251501 UNSPSC 19.0 31251501 UNSPSC 20.0 31251501 UNSPSC 21.0 31251501 Approvals Approvals Approvals UL Recognized / cUL Recognized / cULus Recognized Ex Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 24 V mm²/AWG/kcmil 22-16 cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     Nominal voltage UN 24 V mm²/AWG/kcmil 22-16 cULus Recognized      FILE E 118976  FILE E 118976   Accessories Accessories Circular connector (cable-side) 12/17/2021   Page 4 / 8 https://www.phoenixcontact.com/pi/products/1692404 Sensor/actuator box - SACB-4/ 4-L-M23 - 1692404 Accessories Cable connector - CA-12S1N8A8007 - 1619708 Cable connector, CA, straight, shielded: yes, Screw locking, M23, No. of pos.: 12, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 6 mm ... 10 mm, coding:N     Cable connector - CA-12S1N8A8008 - 1619645 Cable connector, CA, straight, shielded: yes, Screw locking, M23, No. of pos.: 12, Direction of rotation: Standard, type of contact: Socket, Crimp connection, cable diameter range: 10 mm ... 14.5 mm, coding:N     Device marking Zack marker strip - ZBN 18:UNBEDRUCKT - 2809128 Zack marker strip, Strip, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, PLOTMARK, mounting type: snapped, for terminal block width: 18 mm, lettering field size: 18 x 5 mm, Number of individual labels: 5     Master cable, assembled Master cable - RCK-TGUM/BL12/ 5,0PUR-U - 1684014 M23 socket, straight, 12-pos., with 5 m master cable, pin 9 and 10 bridged     Master cable - RCK-TGUM/BL12/10,0PUR-U - 1684027 M23 socket, straight, 12-pos., with 10 m master cable, pin 9 and 10 bridged     12/17/2021   Page 5 / 8 https://www.phoenixcontact.com/pi/products/1692404 Sensor/actuator box - SACB-4/ 4-L-M23 - 1692404 Accessories Master cable - RCK-TWUM/BL12/ 5,0PUR-U - 1684030 M23 socket, angled, 12-pos., with 5 m master cable, pin 9 and 10 bridged     Master cable - RCK-TWUM/BL12/10,0PUR-U - 1684043 M23 socket, angled, 12-pos., with 10 m master cable, pin 9 and 10 bridged     Female connector - V-RC/TGUM 11/KVD 11/LBL 12 - 1000041 M23 socket, 12-pos., straight, freely configurable, with solder connection, for external cable diameter of 8 mm ... 12 mm     Female connector - V-RC/TWUM 11/KVD 11/LBL 12 - 1000043 M23 socket, 12-pos., angled, freely configurable, with solder connection, for external cable diameter of 8 mm ... 12 mm     Plug for cable screw gland Screw plug - PROT-M12 - 1680539 An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors     Protective cap 12/17/2021   Page 6 / 8 https://www.phoenixcontact.com/pi/products/1692404 Sensor/actuator box - SACB-4/ 4-L-M23 - 1692404 Accessories Protective cap - MSK 1 - 1665897 M23 metal sealing cap, for unoccupied M23 connectors, without steel wire     Protective cap - MSK 2 - 1665907 M23 metal sealing cap, for unoccupied M23 connectors, with steel wire     Sealing cap - KSK 1 - 1685013 Plastic sealing cap, for unoccupied M23 connectors     Screwdriver tools Tool - SAC BIT M12-D15 - 1208432 Nut for assembling sensor/actuator cables with M12 connector and M12 connectors for assembly, with a knurl diameter of 15 mm, for 4 mm hexagonal drive     Tool - SACC BIT M12-D20 - 1208445 Nut for assembling M12 connectors for assembly with a knurl diameter of 20 mm, for 4 mm hexagonal drive     T-distributor 12/17/2021   Page 7 / 8 https://www.phoenixcontact.com/pi/products/1692404 Sensor/actuator box - SACB-4/ 4-L-M23 - 1692404 Accessories Housing - RC-T 12/1BU2ST - 1685107 M23 T-distributor, 12-pos., with one M23 socket and two M23 plugs; position 9 and 10 bridged     Torque tool Torque screwdriver - TSD 04 SAC - 1208429 Torque screwdriver, with preset torque of 0.4 Nm and 4 mm hexagonal drive for M12 connectors     Pipe spanner - PLUSCON-RCS - 1665062 Special pipe spanner, tool for mounting the M23 connector housing (with assembly), for coupling and sleeve housing     Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 12/17/2021   Page 8 / 8
