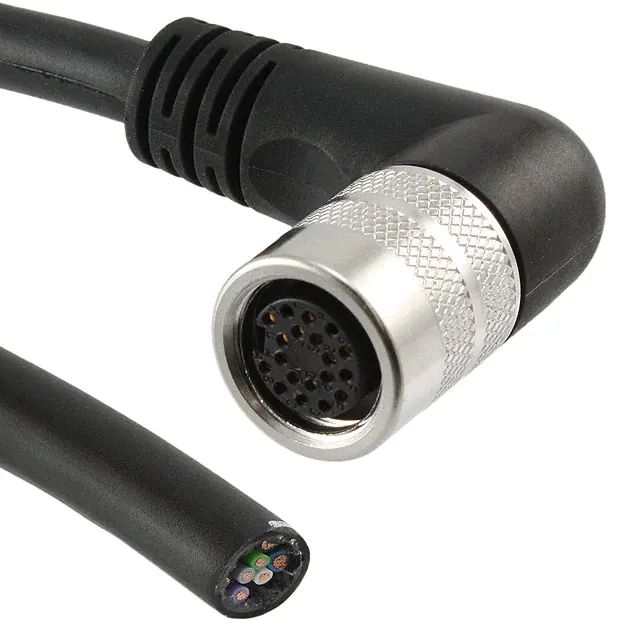

Extract from the online catalog     SAC-12P-10,0-PUR/M16FR Order No.: 1693733 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1693733   Master cable, Number of slots: 8, Number of positions: 12, Status indication: No, PUR/PVC, Cable length: 10 m, Shielding: No   Product notes WEEE/RoHS-compliant since: 12/14/2006 Commercial data GTIN (EAN) 4 017918 189075 sales group D192 Pack 1 pcs. Customs tariff 85444290 Catalog page information Page 126 (PC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data General data Rated voltage 125 V AC 150 V DC PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 1 / 4 Jan 4, 2011 SAC-12P-10,0-PUR/M16FR Order No.: 1693733 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1693733 Number of positions 12 Number of slots 8 Degree of protection IP67 Ambient temperature (operation) -25 °C ... 90 °C (Male connector / female connector) Master cable data Type of connection M16 plug connection Length of cable 10 m Cable type Master cable suitable for flexible cable conduit Signal line cross section 8x 0.34 mm² AWG signal line 22 Conductor structure signal line 42x 0.10 mm Power supply cross section 2x 0.75 mm² AWG power supply 18 Conductor structure, voltage supply 96x 0.10 mm External diameter 8.7 mm Max. bending cycles 1500000 Bending radius 100 mm Traversing path 2m Traversing rate 2 m/s Ambient temperature (operation) -40 °C ... 90 °C (for fixed installation) -5 °C ... 80 °C (for flexible installation) Insulation material Housing material PUR Material of contact, master cable side CU alloy Material of contact surface, master cable side Gold-plated Material of the contact carrier on the master cable side TPU Material of threaded sleeve Cu alloy Material of threaded sleeve surface Nickel-plated Sealing material NBR Connection assignment Slot/position = pin = conductor color PHOENIX CONTACT Inc., USA http://www.phoenixcon.com 1 / 4 (A) = P = WH Page 2 / 4 Jan 4, 2011 SAC-12P-10,0-PUR/M16FR Order No.: 1693733 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1693733 2 / 4 (A) = J = GN 3 / 4 (A) = T = YE 4 / 4 (A) = S = GY 5 / 4 (A) = G = PK 6 / 4 (A) = R = RD 7 / 4 (A) = E = BK 8 / 4 (A) = O = VT 1-8 / 3 (0 V) = L+U = BU Certificates / Approvals Certification GOST Diagrams/Drawings Circuit diagram PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 3 / 4 Jan 4, 2011 SAC-12P-10,0-PUR/M16FR Order No.: 1693733 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1693733 Address PHOENIX CONTACT Inc., USA 586 Fulling Mill Road Middletown, PA 17057,USA Phone (800) 888-7388 Fax (717) 944-1625 http://www.phoenixcon.com © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 4 / 4 Jan 4, 2011
