1694363

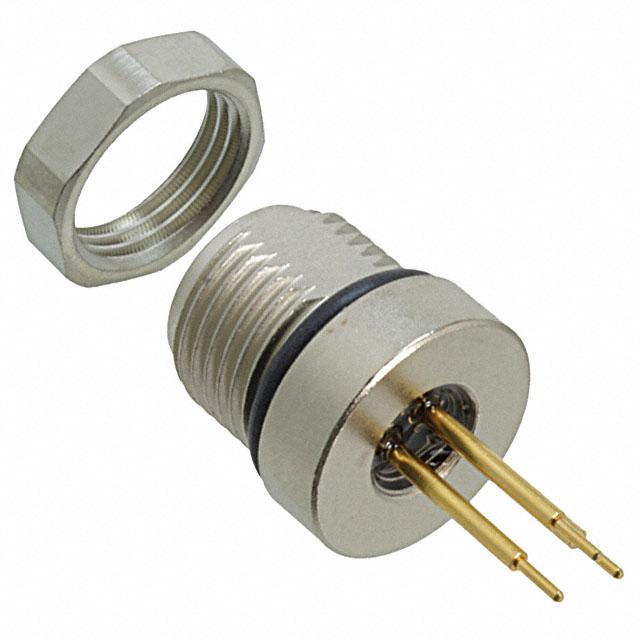

https://www.phoenixcontact.com/us/produkte/1694363 Flush-type connector - SACC-DSI-M8FS-3CON-L180 - 1694363 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Sensor/actuator flush-type connector, female, 3-pos., M8, rear/screw mounting with M12 thread, with straight solder connection   Key commercial data Packing unit 1 Minimum order quantity 20 Catalog page Page 38 (PC-2011) GTIN Custom tariff number 85366990 Country of origin GERMANY Technical data General data Rated current at 40°C 4A Rated voltage 60 V Number of positions 3 Volume resistance ≤ 3 mΩ Insulation resistance ≥ 100 MΩ Ambient temperature (operation) -25 °C ... 85 °C General characteristics Standards/regulations M8 plug-in connector IEC 61076-2-104 Coding A - standard Surge voltage category II Pollution degree 3 Degree of protection IP67 Contact material CuSn Contact surface material Au Contact carrier material PA 66 Material, knurls Nickel-plated brass Sealing material NBR 05.10.2012   Page 1 / 4 https://www.phoenixcontact.com/us/produkte/1694363 Flush-type connector - SACC-DSI-M8FS-3CON-L180 - 1694363 Technical data General characteristics Mounting type Rear mounting M12 x 1 With locking nut Connection method Solder pins Status display No Classifications eclass eCl@ss 4.0 27140815 eCl@ss 4.1 27140815 eCl@ss 5.0 27143423 eCl@ss 5.1 27143423 eCl@ss 6.0 27143423 eCl@ss 7.0 27449001 etim ETIM 2.0 EC001297 ETIM 3.0 EC002061 ETIM 4.0 EC002061 unspsc UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 31251501 Approvals Approvals Approvals UL Recognized / cUL Recognized / GOST / GOST / cULus Recognized Ex Approvals Approvals submitted Approval details 05.10.2012   Page 2 / 4 https://www.phoenixcontact.com/us/produkte/1694363 Flush-type connector - SACC-DSI-M8FS-3CON-L180 - 1694363 Approvals UL Recognized      Nominal current IN 4A Nominal voltage UN 125 V cUL Recognized      Nominal current IN 4A Nominal voltage UN 125 V GOST  GOST  cULus Recognized  Drawings Dimensioned drawing Schematic diagram max.4,0 Ø12,2 +0,1 4 10+0,1 3 1 Pin assignment M8 socket, 3-pos., view female side Housing cutout for M8 flush-type connector, socket, one-section 05.10.2012   Page 3 / 4 https://www.phoenixcontact.com/us/produkte/1694363 Flush-type connector - SACC-DSI-M8FS-3CON-L180 - 1694363 Dimensioned drawing 1,75 14,5 9,5 4,5 10 Ø12 3,5 3 Ø0,8 max. 4,5 +0,05 M8 flush-type socket 14 Drilling diagram M8 flush-type socket © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 05.10.2012   Page 4 / 4
