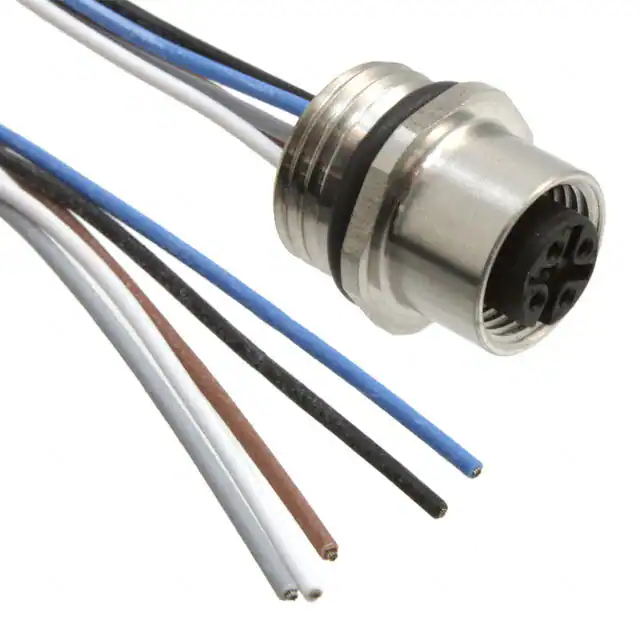

https://www.phoenixcontact.com/us/products/1699863 Panel feed-through - SACC-E-M12FS-5CON-PG9/0,5 VA - 1699863 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Sensor/actuator flush-type socket, 5-pos., M12, A-coded, front/screw mounting with Pg9 thread, with 0.5 m TPE litz wire, 5 x 0.34 mm², stainless steel version Your advantages  Pre-assembled with litz wires for immediate use  Customer-specific assemblies and litz wire lengths available  Sealed on the litz wire side for optimum leak-tightness  For high transmission safety: shield connection to the housing with optional EMC nut Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918571931 Weight per Piece (excluding packing) 20.000 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length of cable 0.5 m Ambient conditions Ambient temperature (operation) -25 °C ... 85 °C (Plug / socket) -40 °C ... 85 °C (without mechanical actuation) Degree of protection IP67 08/28/2019   Page 1 / 5 https://www.phoenixcontact.com/us/products/1699863 Panel feed-through - SACC-E-M12FS-5CON-PG9/0,5 VA - 1699863 Technical data General Note The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Rated current at 40°C 4A Rated voltage 60 V Rated surge voltage 1.5 kV Number of positions 5 Insulation resistance > 100 MΩ Coding A - standard Standards/regulations M12 connector IEC 61076-2-101 Status display No Overvoltage category II Degree of pollution 3 Connection method Individual wires Insertion/withdrawal cycles > 100 Torque 3 Nm ... 4 Nm (Installation-side) Material Flammability rating according to UL 94 V0 Contact material CuZn Contact surface material Au Contact carrier material PA66 GF Material, knurls Stainless steel Sealing material FKM Cable Cable type TPE litz wire Conductor cross section 0.34 mm² AWG signal line 22 Conductor structure signal line 7x 0.25 mm Core diameter including insulation 1.2 mm ±0.07 mm Thickness, insulation 0.21 mm Wire colors Black, brown,blue, white, gray Material conductor insulation TPE Conductor material Tin-plated Cu litz wires Standards/specifications M12 connector IEC 61076-2-101 Insulation resistance ≥ 20 MΩ*km Conductor resistance ≤ 57.6 Ω/km 08/28/2019   Page 2 / 5 https://www.phoenixcontact.com/us/products/1699863 Panel feed-through - SACC-E-M12FS-5CON-PG9/0,5 VA - 1699863 Technical data Cable Nominal voltage, cable 300 V Test voltage, cable 2000 V AC Ambient temperature (operation) -40 °C ... 85 °C (cable, fixed installation) -25 °C ... 85 °C (cable, flexible installation) Standards and Regulations Standard designation M12 connector Standards/regulations IEC 61076-2-101 Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Classifications eCl@ss eCl@ss 5.1 27143400 eCl@ss 6.0 27279200 eCl@ss 7.0 27440103 eCl@ss 8.0 27440103 eCl@ss 9.0 27440102 ETIM ETIM 2.0 EC001297 ETIM 3.0 EC002061 ETIM 4.0 EC002062 ETIM 5.0 EC002061 ETIM 6.0 EC002061 UNSPSC UNSPSC 6.01 31251501 UNSPSC 7.0901 31251501 UNSPSC 11 31251501 UNSPSC 12.01 31251501 UNSPSC 13.2 39121413 Approvals Approvals 08/28/2019   Page 3 / 5 https://www.phoenixcontact.com/us/products/1699863 Panel feed-through - SACC-E-M12FS-5CON-PG9/0,5 VA - 1699863 Approvals Approvals EAC / cULus Recognized Ex Approvals Approval details EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E221474-20140616     Nominal voltage UN 60 V Nominal current IN 4A mm²/AWG/kcmil 22-20 Accessories Accessories Protective cap Screw plug - PROT-M12 - 1680539 An M12 screw plug for the unoccupied M12 sockets of the sensor/actuator cable, boxes and flush-type connectors     Screw plug - PROT-M12 SH - 1503302 An M12 screw plug for the unoccupied M12 sockets of the shielded sensor/actuator cable, boxes and flush-type connectors     08/28/2019   Page 4 / 5 https://www.phoenixcontact.com/us/products/1699863 Panel feed-through - SACC-E-M12FS-5CON-PG9/0,5 VA - 1699863 Accessories Screw plug - PROT-M12 FB - 1555538 M12 high-grade steel screw plug, for unoccupied M12 sockets of the sensor/actuator cables, boxes and flush-type connectors for the food industry     Seal Flat gasket - SACC-PG9-SEAL CLM - 1556320 Pg9 flat gasket for the rear mounting of M12 flush-type connectors with Pg9 fastening threads     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 08/28/2019   Page 5 / 5
