1702473

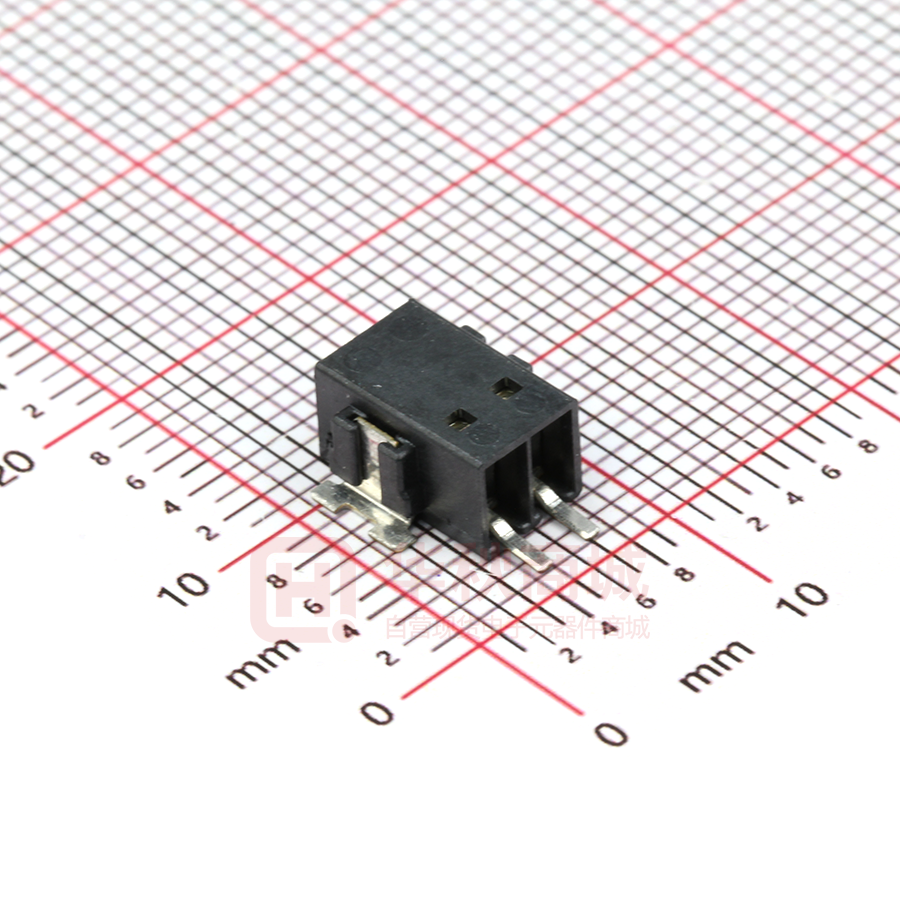

https://www.phoenixcontact.com/us/products/1702473 PCB terminal block - PTSM 0,5/ 2-2,5-H SMD R24 - 1702473 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, Nominal current: 6 A, Nom. voltage: 160 V, Pitch: 2.5 mm, Number of positions: 2, Connection method: Push-in spring connection, Mounting: SMD soldering, Conductor/PCB connection direction: 0 °, Color: black The illustration shows the 3-pos. version Product Features ■ ■ ■ ■ ■ Compact low-profile SMD PCB terminal block with 2.5 mm pitch High current carrying capacity for high power transmission Supplied in tape-on-reel packing according to IEC 60286-3 for automated mounting Rugged solder anchor for secure, mechanical fixing to the surface Specifically designed for use in dedicated SMT processes Key Commercial Data Packing unit 1 pc Minimum order quantity 770 pc Weight per Piece (excluding packing) 1.12 g Custom tariff number 85369010 Country of origin India Technical data Dimensions Length 9 mm Pitch 2.50 mm Dimension a 2.5 mm Height 5 mm Length of the solder pin 2 mm Pin spacing 2.5 mm 04/04/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1702473 PCB terminal block - PTSM 0,5/ 2-2,5-H SMD R24 - 1702473 Technical data General Range of articles PTSM 0,5/..-H-SMD Insulating material group IIIa Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 32 V Rated voltage (III/2) 160 V Rated voltage (II/2) 160 V Connection in acc. with standard EN-VDE Nominal current IN 6A Nominal cross section 0.5 mm² Maximum load current 6A Insulating material LCP Solder pin surface Sn Flammability rating according to UL 94 V0 Stripping length 6 mm Number of positions 2 Connection data Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 0.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 0.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 0.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 20 Standards and Regulations Connection in acc. with standard EN-VDE UL Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 27141109 eCl@ss 4.1 27141109 04/04/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1702473 PCB terminal block - PTSM 0,5/ 2-2,5-H SMD R24 - 1702473 Classifications eCl@ss eCl@ss 5.0 27141190 eCl@ss 5.1 27141190 eCl@ss 6.0 27261101 eCl@ss 7.0 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002637 UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals UL Recognized / UL Recognized / EAC / EAC Ex Approvals Approvals submitted Approval details UL Recognized  04/04/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1702473 PCB terminal block - PTSM 0,5/ 2-2,5-H SMD R24 - 1702473 Approvals UL Recognized    B mm²/AWG/kcmil 26-18 Nominal current IN 5A Nominal voltage UN 150 V EAC  EAC  Drawings Drilling diagram Diagram Current strength [A] M 5,6 6,6 3,4 2,5 12 10 8 1 6 4 1 = 0,75 mm 2 2 = 0,5 mm 2 2 2 0 0 1,4 Dimension M: 7.7 mm 2,3 20 40 60 80 100 Ambient temperature [°C] Type: PTSM 0,5/...-2,5-H- SMD R44 Test according to DIN EN 60512-5-2:2003-01 Reduction factor = 1 Number of positions: 5 04/04/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1702473 PCB terminal block - PTSM 0,5/ 2-2,5-H SMD R24 - 1702473 Dimensional drawing 1,95 a+3 2 Dimensional drawing 9 24 1,5 1,5 5 5,3 16 2,5 4 2 a 0,8 5,7 5 0,3 22,25 Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 04/04/2016   Page 5 / 5
