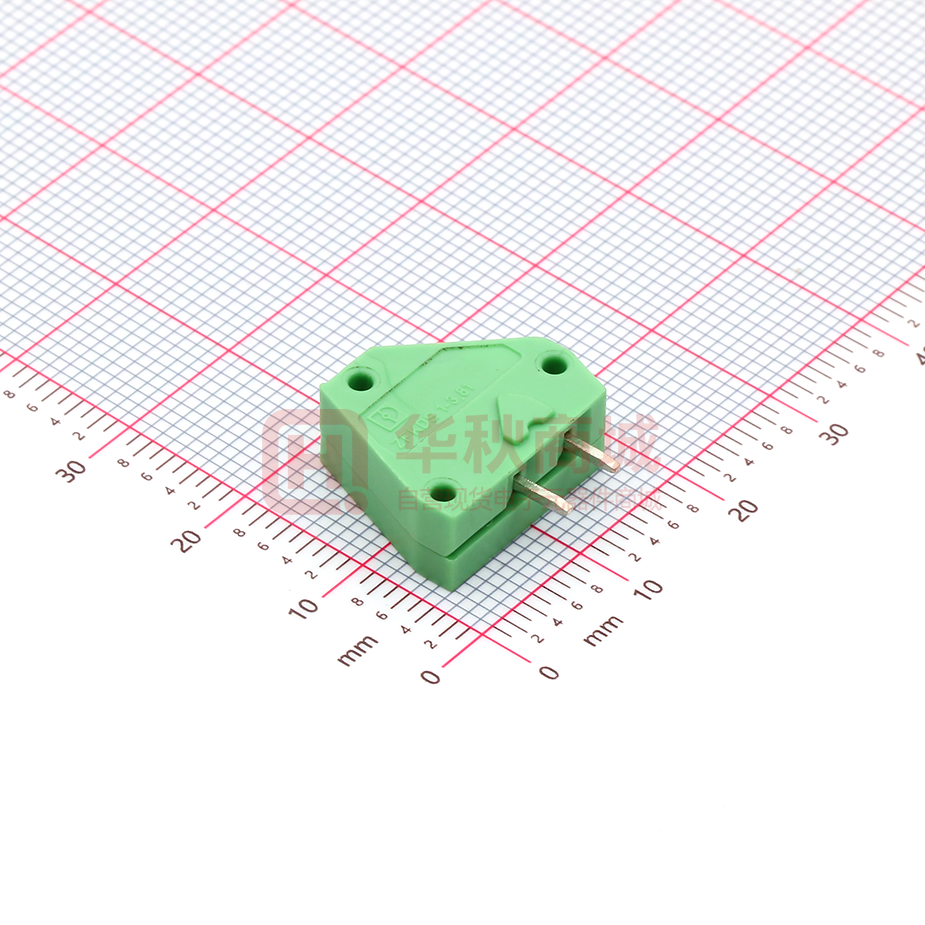

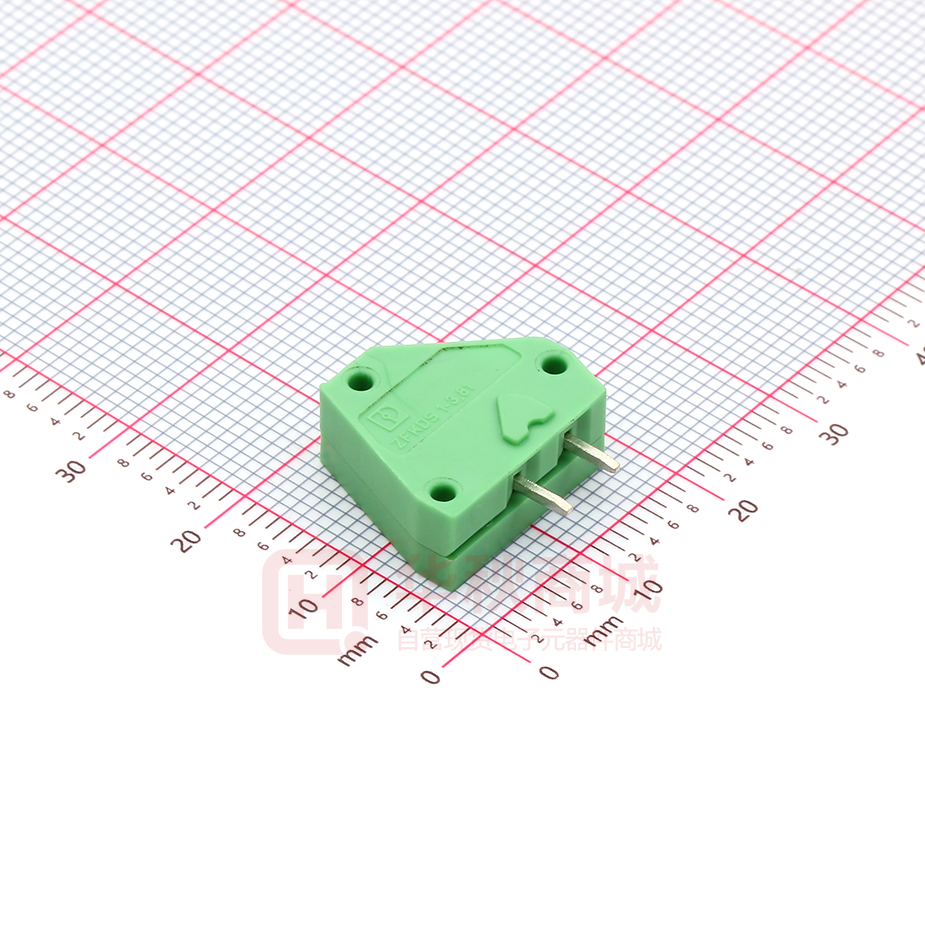

PCB terminal block - ZFKDSA 1-6,35 - 1704981
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
PC terminal block, Nominal current: 12 A, Nom. voltage: 320 V, Pitch: 3.81 mm, Number of positions:
1, Connection method: Spring-cage conn., Mounting: Soldering, Conductor/PCB connection
direction: 45 °, Color: green, The article can be aligned to create different nos. of positions!
Why buy this product
Pitch: 3.81 mm
Modular design enables blocking for larger numbers of positions
Two solder pins for a high level of stability on the PCB
W type with orange opening lever, enables tool-free actuation of the terminal point
Single-level PCB single terminal blocks with spring-cage connection
Key commercial data
Packing unit
1
Minimum order quantity
50
Catalog page
Page 121 (CC-2011)
GTIN
Custom tariff number
85369010
Country of origin
POLAND
Technical data
Dimensions / positions
Length
16.9 mm
Pitch
3.81 mm
Number of positions
1
Pin dimensions
0,7 x 0,8 mm
Hole diameter
1.2 mm
Technical data
Range of articles
ZFKDS(A) 1
Insulating material group
I
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/3)
250 V
Rated voltage (III/2)
320 V
19.10.2012 Page 1 / 5
https://www.phoenixcontact.com/us/produkte/1704981
PCB terminal block - ZFKDSA 1-6,35 - 1704981
Technical data
Technical data
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
12 A
Nominal cross section
1 mm²
Maximum load current
12 A (with 1.5 mm2 conductor cross section)
Insulating material
PA
Inflammability class according to UL 94
V0
Stripping length
7.5 mm
Nominal voltage, UL/CUL Use Group B
250 V
Nominal current, UL/CUL Use Group B
10 A
Nominal voltage, UL/CUL Use Group D
300 V
Nominal current, UL/CUL Use Group D
10 A
Connection data
Conductor cross section solid min.
0.14 mm²
Conductor cross section solid max.
1.5 mm²
Conductor cross section stranded min.
0.14 mm²
Conductor cross section stranded max.
1 mm²
Conductor cross section stranded, with ferrule without plastic
sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule without plastic
sleeve max.
0.5 mm²
Conductor cross section stranded, with ferrule with plastic sleeve
min.
0.25 mm²
Conductor cross section stranded, with ferrule with plastic sleeve
max.
0.5 mm²
Conductor cross section AWG/kcmil min.
26
Conductor cross section AWG/kcmil max
16
2 conductors with same cross section, stranded min.
0.14 mm²
2 conductors with same cross section, stranded max.
0.5 mm²
Minimum AWG according to UL/CUL
26
Maximum AWG according to UL/CUL
16
Classifications
eclass
eCl@ss 4.0
27141109
eCl@ss 4.1
27141109
eCl@ss 5.0
27141190
eCl@ss 5.1
27141190
eCl@ss 6.0
27261101
eCl@ss 7.0
27440401
19.10.2012 Page 2 / 5
https://www.phoenixcontact.com/us/produkte/1704981
PCB terminal block - ZFKDSA 1-6,35 - 1704981
Classifications
etim
ETIM 3.0
EC001121
ETIM 4.0
EC002637
ETIM 5.0
EC002643
unspsc
UNSPSC 6.01
30211801
UNSPSC 7.0901
39121432
UNSPSC 11
39121432
UNSPSC 12.01
39121432
UNSPSC 13.2
39121432
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
B
D
mm²/AWG/kcmil
26-16
26-16
Nominal current IN
10 A
10 A
Nominal voltage UN
250 V
300 V
B
D
mm²/AWG/kcmil
26-16
26-16
Nominal current IN
10 A
10 A
Nominal voltage UN
250 V
300 V
cUL Recognized
