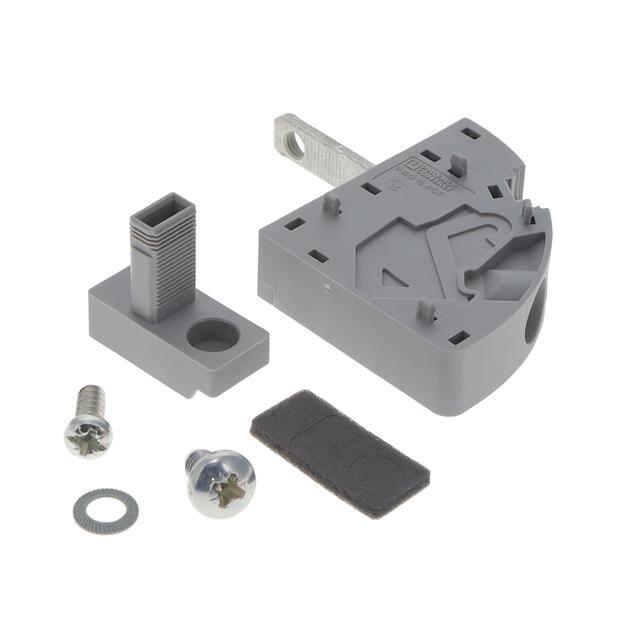

https://www.phoenixcontact.com/us/products/1705654 Panel feed-through terminal block - PWO 16-POT/S - 1705654 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Panel feed-through terminal block, Connection method: Push-in spring connection, Cable lug connection, Number of positions: 1, Load current : 76 A, Cross section: 1.5 mm² - 16 mm², AWG 14 - 4, Width: 12.1 mm, Color: gray Key Commercial Data Packing unit 1 STK GTIN GTIN 4046356790857 Weight per Piece (excluding packing) 29.200 g Custom tariff number 85369010 Country of origin China Technical data General Number of levels 1 Number of connections 2 Nominal cross section 16 mm² Color gray Insulating material PA Flammability rating according to UL 94 V0 Maximum load current 76 A Rated surge voltage 8 kV Degree of pollution 3 Overvoltage category III Insulating material group I 02/21/2017   Page 1 / 4 https://www.phoenixcontact.com/us/products/1705654 Panel feed-through terminal block - PWO 16-POT/S - 1705654 Technical data General Ambient temperature (operation) -40 °C (Depending on the current carrying capacity/derating curve) Ambient temperature (storage/transport) -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (actuation) -5 °C ... 100 °C Connection in acc. with standard IEC 60947-7-1 Nominal current IN 76 A Maximum load current 76 A Nominal voltage UN 1000 V Open side panel No Number of positions 1 Dimensions Width 12.1 mm Plate thickness 1 mm ... 6 mm Connection data Connection side Outside Connection method Push-in spring connection Conductor cross section solid min. 1.5 mm² Conductor cross section solid max. 16 mm² Conductor cross section flexible min. 1.5 mm² Conductor cross section flexible max. 16 mm² Conductor cross section AWG min. 14 Conductor cross section AWG max. 4 Conductor cross section flexible, with ferrule without plastic sleeve min. 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 16 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 1.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 16 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic 1.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 4 mm² sleeve, max. Stripping length 18 mm Connection side Inside Connection method Cable lug connection Standards and Regulations Connection in acc. with standard UL IEC 60947-7-1 02/21/2017   Page 2 / 4 https://www.phoenixcontact.com/us/products/1705654 Panel feed-through terminal block - PWO 16-POT/S - 1705654 Technical data Standards and Regulations Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Approvals Approvals Approvals UL Recognized / VDE Gutachten mit Fertigungsüberwachung / EAC Ex Approvals Approval details UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B C mm²/AWG/kcmil 14-4 14-4 Nominal current IN 66 A 66 A Nominal voltage UN 600 V 600 V VDE Gutachten mit Fertigungsüberwachung    http://www.vde.com/en/Institute/OnlineService/ VDE-approved-products/Pages/Online-Search.aspx     mm²/AWG/kcmil 1.5-16 Nominal current IN 76 A Nominal voltage UN 1000 V EAC      FILE E 60425  40039989  B.01742 02/21/2017   Page 3 / 4 https://www.phoenixcontact.com/us/products/1705654 Phoenix Contact 2017 © - all rights reserved http://www.phoenixcontact.com 02/21/2017   Page 4 / 4
