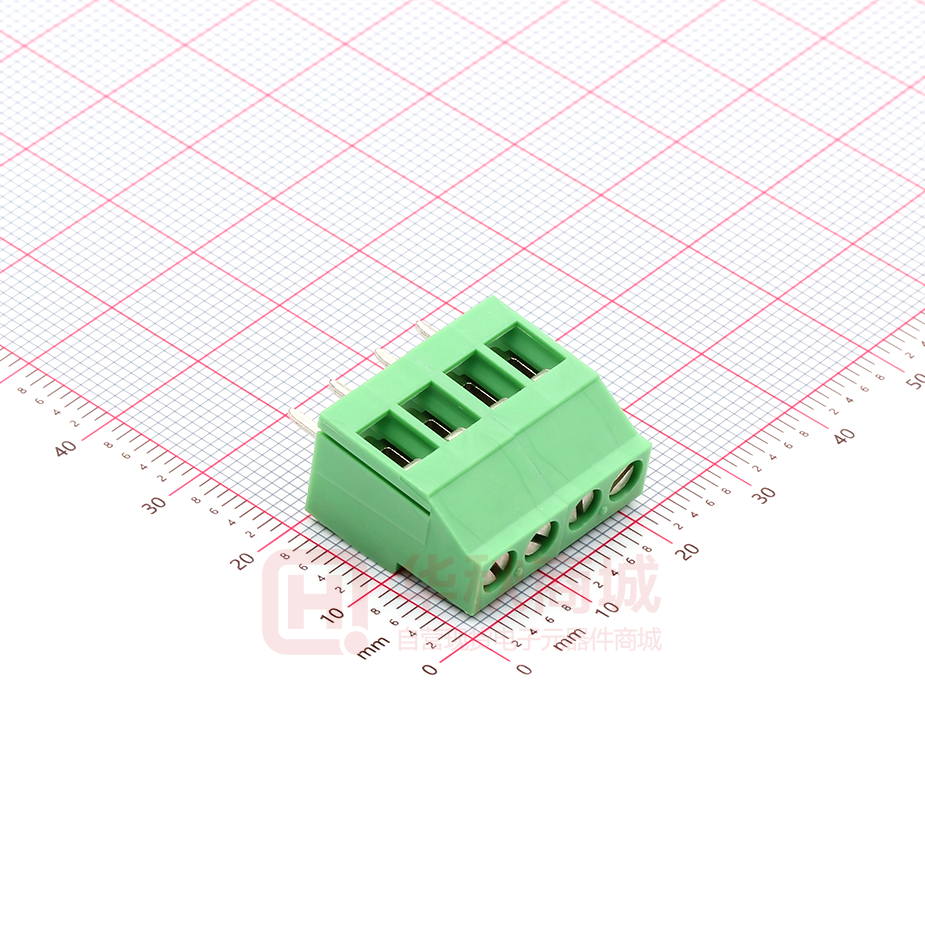

https://www.phoenixcontact.com/us/products/1712805 PCB terminal block - MKDS 3/ 4-5,08 - 1712805 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, nominal current: 24 A, pitch: 5.08 mm, number of positions: 4, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green. The article can be aligned to create different nos. of positions! The figure shows a 4-position version Your advantages  Well-known connection principle allows worldwide use  Low temperature rise, thanks to maximum contact force  Allows connection of two conductors  Integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve  The latching on the side enables various numbers of positions to be combined Key Commercial Data Packing unit 1 pc Minimum order quantity 50 pc GTIN GTIN 4017918023867 Weight per Piece (excluding packing) 8.190 g Custom tariff number 85369010 Country of origin Germany Technical data Dimensions Length [ l ] 11.2 mm Pitch 5.08 mm Dimension a 15.24 mm 11/08/2019   Page 1 / 10 https://www.phoenixcontact.com/us/products/1712805 PCB terminal block - MKDS 3/ 4-5,08 - 1712805 Technical data Dimensions Width [ w ] 20.32 mm Height 18 mm Height [ h ] 23 mm Solder pin [P] 5 mm Pin spacing 15.24 mm Hole diameter 1.3 mm General Range of articles MKDS 3 Insulating material group I Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 400 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 24 A Nominal cross section 2.5 mm² Maximum load current 28 A (with 4 mm² conductor cross section) Insulating material PA Flammability rating according to UL 94 V0 Internal cylindrical gage A3 Stripping length 8 mm Number of positions 4 Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 4 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 2.5 mm² 11/08/2019   Page 2 / 10 https://www.phoenixcontact.com/us/products/1712805 PCB terminal block - MKDS 3/ 4-5,08 - 1712805 Technical data Connection data Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 2 conductors with same cross section, solid min. 0.2 mm² 2 conductors with same cross section, solid max. 1.5 mm² 2 conductors with same cross section, stranded min. 0.2 mm² 2 conductors with same cross section, stranded max. 1.5 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 0.75 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 1.5 mm² sleeve, max. Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 11/08/2019   Page 3 / 10 https://www.phoenixcontact.com/us/products/1712805 PCB terminal block - MKDS 3/ 4-5,08 - 1712805 Drilling diagram 11/08/2019   Page 4 / 10 https://www.phoenixcontact.com/us/products/1712805 PCB terminal block - MKDS 3/ 4-5,08 - 1712805 Diagram Type: MKDS 3/2 and MKDS 3/3 Test following DIN EN 60512-5-2:2003-01 Reduction factor = 1 No. of positions: 5 11/08/2019   Page 5 / 10 https://www.phoenixcontact.com/us/products/1712805 PCB terminal block - MKDS 3/ 4-5,08 - 1712805 Dimensional drawing Classifications eCl@ss eCl@ss 4.0 27141100 eCl@ss 4.1 27141100 eCl@ss 5.0 27141100 eCl@ss 5.1 27261100 eCl@ss 6.0 27261100 eCl@ss 7.0 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 ETIM 6.0 EC002643 ETIM 7.0 EC002643 11/08/2019   Page 6 / 10 https://www.phoenixcontact.com/us/products/1712805 PCB terminal block - MKDS 3/ 4-5,08 - 1712805 Classifications UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals DNV GL / CSA / CCA / SEV / EAC / cULus Recognized Ex Approvals Approval details DNV GL    https://approvalfinder.dnvgl.com/  TAE00001EV CSA    http://www.csagroup.org/services-industries/product-listing/  13631   B D Nominal voltage UN 300 V 300 V Nominal current IN 10 A 10 A mm²/AWG/kcmil 28-12 28-12 CCA        Nominal voltage UN 250 V mm²/AWG/kcmil 4  IK-3249 11/08/2019   Page 7 / 10 https://www.phoenixcontact.com/us/products/1712805 PCB terminal block - MKDS 3/ 4-5,08 - 1712805 Approvals SEV    https://www.electrosuisse.ch/de/meta/shop/produktezertifikate.html     Nominal voltage UN 250 V Nominal current IN 28 A mm²/AWG/kcmil 4  IK-4199 EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E60425-19770427   B D Nominal voltage UN 300 V 300 V Nominal current IN 15 A 10 A mm²/AWG/kcmil 30-12 30-12 Accessories Accessories Bridge Insertion bridge - EBP 2- 5 - 1733169     Insertion bridge - EBP 3- 5 - 1733172     11/08/2019   Page 8 / 10 https://www.phoenixcontact.com/us/products/1712805 PCB terminal block - MKDS 3/ 4-5,08 - 1712805 Accessories Insertion bridge - EBP 4- 5 - 1733185     Labeled terminal marker Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293 Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100, mounting type: adhesive, for terminal block width: 5.08 mm, lettering field size: 5.08 x 3.8 mm     Marker for terminal blocks - SK 5,08/3,8: 0-9 - 0804303 Marker for terminal blocks, Card, white, labeled, Horizontal: consecutive numbers 0 ... 9, mounting type: adhesive, for terminal block width: 5.08 mm, lettering field size: 5.08 x 3.8 mm     Marker pen Marker pen - B-STIFT - 1051993 Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm     Pitch spacer 11/08/2019   Page 9 / 10 https://www.phoenixcontact.com/us/products/1712805 PCB terminal block - MKDS 3/ 4-5,08 - 1712805 Accessories Pitch spacer - RZ 1,25-MKDS 3 - 1703047 Pitch spacer, for adjusting the pitches between MKDS and GMKDS terminal blocks in mixed rows, 1.25 mm thick     Screwdriver tools Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Terminal marking Marker card - SK 5,08/3,8:UNBEDRUCKT - 0805412 Marker card, Card, white, unlabeled, can be labeled with: Marker pen, mounting type: adhesive, for terminal block width: 5.08 mm, lettering field size: 5.08 x 3.8 mm     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 11/08/2019   Page 10 / 10
