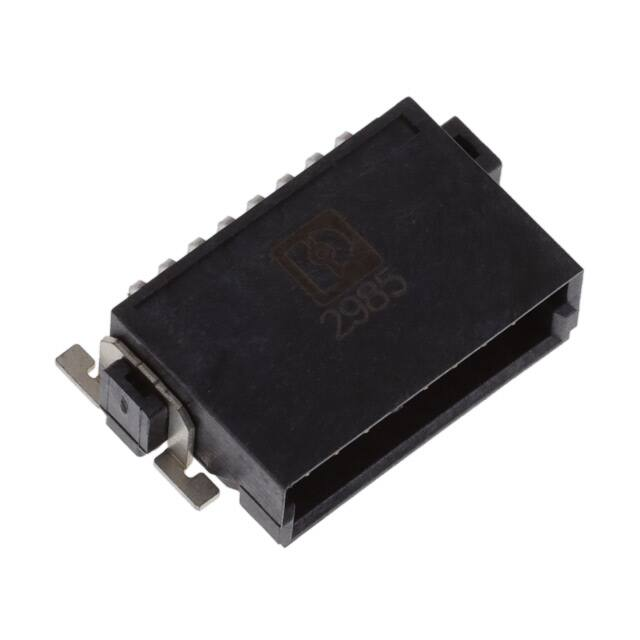

2019-08-20 Product version 01 Data sheet Document revision 01 Order No.: 1714914 Type: FP 1,27/ 16-MH SMD male connector, Reflow soldering The figure shows a 12-pos. version with 12 contacts No. of pos. Test voltage Color Pitch 16 500 V AC black (9005) 1.27 mm     Nominal current Mounting type Connection direction Type of packaging 1.4 A SMD soldering 0° 32 mm wide tape       Main features   1 Your advantages   Gold-plated contacts ensure transfer quality remains stable over the long term Compact, high-position board-to-board or wire-to-board connectors for space-saving device designs Stacked, coplanar or orthogonal PCB connections enable maximum flexibility in the device Male and female connectors of different height can be combined – for individual PCB spacing of 8 mm ... 13.8 mm Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1714914 © PHOENIX CONTACT 2019 2 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH Document revision 01 Table of contents 1 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 General Technical Data ........................................................................................................... 4 5.1 item properties .................................................................................................................... 4 5.2 Material data ...................................................................................................................... 4 6 Dimensions.............................................................................................................................. 5 6.1 Dimensions for the product .................................................................................................... 5 6.2 Dimensions for the application ................................................................................................ 5 7 Series drawing......................................................................................................................... 6 8 Packaging information ............................................................................................................. 7 9 Blister drawing ......................................................................................................................... 8 10 Application............................................................................................................................... 9 11 Application drawing ............................................................................................................... 10 11.1 Temperature limit values ..................................................................................................... 11 12 General tests ......................................................................................................................... 12 12.1 Specification..................................................................................................................... 12 13 Mechanical tests.................................................................................................................... 13 13.1 Insertion and withdrawal force per contact ............................................................................... 13 13.2 Service life ....................................................................................................................... 13 14 Electrical tests ....................................................................................................................... 14 14.1 Electrical data ................................................................................................................... 14 14.2 Air and creepage distances .................................................................................................. 14 15 Current carrying capacity/derating curves ............................................................................. 15 15.1 Insulation resistance ........................................................................................................... 15 15.2 forward resistance ............................................................................................................. 15 15.3 Vibration test .................................................................................................................... 15 16 Approvals .............................................................................................................................. 15 17 Commercial Data................................................................................................................... 16 18 Combination tests.................................................................................................................. 17 REF 1714912 PHOENIX CONTACT 2 / 17 © PHOENIX CONTACT 2019       3 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2019       4 Document revision 01 REF 1714912 PHOENIX CONTACT 3 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 5 General Technical Data 5.1 item properties Document revision 01 Order No. 1714914 Type FP 1,27/ 16-MH Plug-in system Fine Pitch 1,27 mm Product type SMD male connector Type of contact Male connector Range of articles FP 1,27/...-MH Pitch 1.27 mm Range of positions 12...80 Number of positions 16 Number of levels 2 Number of potentials 16 Type of locking without Mounting type SMD soldering Connection direction of the connector to the PCB 0° Pin layout Linear pad geometry 5.2 Material data Material of metal parts WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Surface contact area Nickel (Ni), Palladium nickel (PdNi) , Gold (Au) Surface characteristics Selective coating Insulating material data Housing Insulating material LCP   Note IIIa CTI according to IEC 60112 175 Flammability rating according to UL 94 V0 Color black (9005) © PHOENIX CONTACT 2019     Insulating material group REF 1714912 PHOENIX CONTACT 4 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 6 Dimensions 6.1 Dimensions for the product Document revision 01 Length 7.2 mm Width 15.25 mm Total height 5 mm Height 4.2 mm Positioning pin geometry ø 1.5-0.05 mm, Length of positioning pin: 0.75 mm Coplanarity ≤ 0.1 mm 6.2 Dimensions for the application Contact cover 0.9 mm Overlap length 1.5 mm ± 0.7 mm in longitudinal and transverse direction Angular tolerance ± 4 ° in longitudinal direction Angular tolerance ± 2 ° in transverse direction © PHOENIX CONTACT 2019       Medium offset REF 1714912 PHOENIX CONTACT 5 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH Series drawing © PHOENIX CONTACT 2019       7 Document revision 01 REF 1714912 PHOENIX CONTACT 6 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 8 Document revision 01 Packaging information Type of packaging 32 mm wide tape Note on packaging Tape-on-reel packaging in accordance with standard DIN EN 60286-3 and EIA481 Pieces per package 560 Outer packaging type Transparent-Bag [W] tape width 32 mm [A] coil diameter 330 mm [W2] coil overall dimension 38.4 mm Number of products per coil 560 W2 A © PHOENIX CONTACT 2019       W REF 1714912 PHOENIX CONTACT 7 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH Blister drawing © PHOENIX CONTACT 2019       9 Document revision 01 REF 1714912 PHOENIX CONTACT 8 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH Application © PHOENIX CONTACT 2019       10 Document revision 01 REF 1714912 PHOENIX CONTACT 9 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH Application drawing © PHOENIX CONTACT 2019       11 Document revision 01 REF 1714912 PHOENIX CONTACT 10 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 11.1 Document revision 01 Temperature limit values -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -55 °C ... 125 °C © PHOENIX CONTACT 2019       Ambient temperature (storage/transport) REF 1714912 PHOENIX CONTACT 11 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 12 General tests 12.1 Specification Board-to-board connectors © PHOENIX CONTACT 2019       Brief description Document revision 01 REF 1714912 PHOENIX CONTACT 12 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 13 Mechanical tests 13.1 Insertion and withdrawal force per contact Insertion and withdrawal force per contact 13.2 Document revision 01 approx. 0.5 N Service life IEC 60512-9-1:2010-03 (following) Service life 500 Insertion/withdrawal cycles, Performance level 1 © PHOENIX CONTACT 2019       Specification REF 1714912 PHOENIX CONTACT 13 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 14 Electrical tests 14.1 Electrical data Document revision 01 Nominal current at 20 °C 1.4 A IEC 60512-5-2:2002-02 (50-pos.) Test voltage 500 V AC IEC 60512-4-1:2003 14.2 Air and creepage distances 0.4 mm © PHOENIX CONTACT 2019       Minimum value for clearance and creepage distance REF 1714912 PHOENIX CONTACT 14 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 15 Document revision 01 Current carrying capacity/derating curves Specification IEC 60512-5-2:2002-02 Note Representation based on IEC 60512-5-2:2002-02 Reduction factor 0.8 Number of positions See diagram Current strength [A] Type: FP 1,27/...-FH with FP 1,27/...-MH 2,5 2,0 1,5 1,0 0,5 0 0 20 40 60 80 100 120 140 Ambient temperature [°C] 15.1 Insulation resistance Insulation resistance 15.2 ≥ 10 GΩ, (IEC 60512-3-1:2002-02) forward resistance ≤25 mΩ, (IEC 60512-2-1:2002-02)   Contact resistance 15.3 Vibration test IEC 60068-2-6:2007-12 Result Test passed Frequency 10 - 2000 - 10 Hz Sweep speed 1 octave/min Amplitude 1.5 mm (10 - 60.1 Hz) Acceleration 20g (60.1 - 2000 Hz) Test duration per axis 2.5 h Test directions X-, Y- and Z-axis     Specification Note 16 Approvals © PHOENIX CONTACT 2019 cULus Recognized  REF 1714912 PHOENIX CONTACT 15 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 17 Document revision 01 Commercial Data Order No. 1714914 Type FP 1,27/ 16-MH Pieces per package 560 Net weight 1.453 g GTIN 4055626402925 Information that applies locally, see link on page 1 Information that applies locally, see link on page 1 © PHOENIX CONTACT 2019       Country of origin REF 1714912 PHOENIX CONTACT 16 / 17 2019-08-20 Product version 01 1714914 FP 1,27/ 16-MH 18 Document revision 01 Combination tests FP 1,27/...-MH FP 1,27/...-FH FP 1,27/...-FWL approx. 0.5 N / 0.5 N approx. 0.5 N / 0.5 N Contact resistance R1 25 mΩ 10 mΩ Insertion/withdrawal cycles 500 500 Contact resistance R2 25 mΩ 10 mΩ Test voltage 500 V AC 500 V AC Tested number of positions 50 50 Test current 1.4 A 1.4 A Mechanical tests Insertion/withdrawal force per position Durability tests © PHOENIX CONTACT 2019       Thermal tests REF 1714912 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com PHOENIX CONTACT 17 / 17
