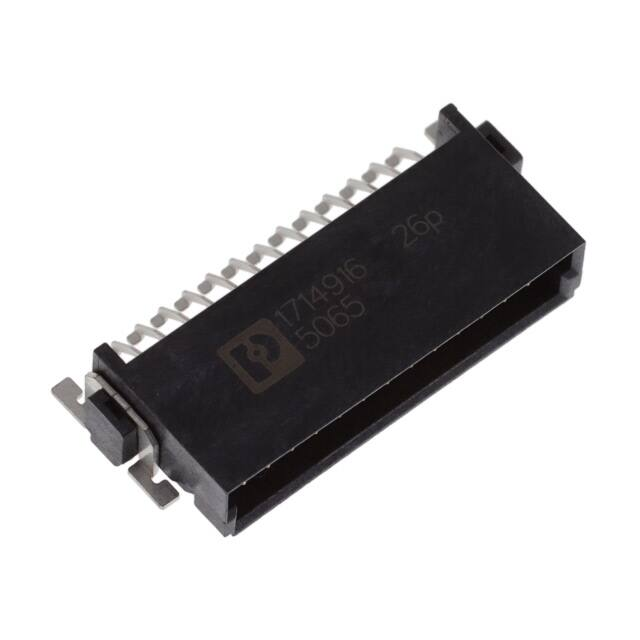

https://www.phoenixcontact.com/pi/products/1714916 SMD male connectors - FP 1,27/ 26-MH - 1714916 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) SMD male connector, Nominal current at 20 °C: 1.4 A, Test voltage: 500 V AC, number of positions: 26, pitch: 1.27 mm, color: black, contact surface: Gold, type of contact: Male connector, mounting: SMD soldering The figure shows a 12-pos. version with 12 contacts Your advantages  Gold-plated contacts ensure transfer quality remains stable over the long term  Compact, high-position board-to-board or wire-to-board connectors for space-saving device designs  Stacked, coplanar or orthogonal PCB connections enable maximum flexibility in the device  Male and female connectors of different height can be combined – for individual PCB spacing of 8 mm ... 13.8 mm Key Commercial Data Packing unit 560 pc Minimum order quantity 560 pc GTIN GTIN 4055626402949 Technical data Item properties Brief article description SMD male connectors Connector system FINEPITCH 1,27 Type of contact Male connector Range of articles FP 1,27/...-MH Pitch 1.27 mm Number of positions 26 Mounting type SMD soldering Pin layout Linear pad geometry Number of rows 2 Number of potentials 26 12/21/2021   Page 1 / 7 https://www.phoenixcontact.com/pi/products/1714916 SMD male connectors - FP 1,27/ 26-MH - 1714916 Technical data Electrical data Nominal current at 20 °C 1.4 A IEC 60512-5-2:2002-02 (50-pos.) Test voltage 500 V AC IEC 60512-4-1:2003 Contact resistance ≤25 mΩ, (IEC 60512-2-1:2002-02) Insulation resistance ≥ 10 GΩ, (IEC 60512-3-1:2002-02) Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/ JEDEC JESD 201 Contact material Cu alloy Surface characteristics Selective coating Metal surface contact area (top layer) Gold (Au) Metal surface contact area (middle layer) Nickel (Ni) Palladium nickel, (PdNi) Metal surface soldering area (top layer) Tin (Sn) Material data - housing Housing color black (9005) Insulating material LCP Insulating material group IIIa CTI according to IEC 60112 175 Flammability rating according to UL 94 V0 Dimensions for the product Caption Schematische Abbildung - weitere Details siehe Produktfamilienzeichnung im Download Center Length [ l ] 7.2 mm Width [ w ] 21.6 mm Height [ h ] 5 mm Pitch 1.27 mm Height (without solder pin) 4.2 mm Pin spacing 1.27 mm Coplanarity ≤ 0.1 mm Dimensions for PCB design Pin spacing 1.27 mm Pad geometry 0.8 x 0.8 mm Dimensions for the application Contact cover 0.9 mm Wipe length 1.5 mm Center offset ± 0.7 mm in longitudinal and transverse direction Angular tolerance ± 4 ° in longitudinal direction ± 2 ° in transverse direction Packaging information Type of packaging 44 mm wide tape 12/21/2021   Page 2 / 7 https://www.phoenixcontact.com/pi/products/1714916 SMD male connectors - FP 1,27/ 26-MH - 1714916 Technical data Packaging information Pieces per package 560 Denomination packing units Pcs. [W] tape width 44 mm [A] coil diameter 330 mm [W2] coil overall dimension 50.4 mm Outer packaging type Transparent-Bag ESD level (D) electrostatically conductive Specification DIN EN 61340-5-1 (VDE 0300-5-1): 2008-07 General product information Type of note Notes on operation Note The permissible voltage during operation depends on the application, taking into consideration the air clearances and creepage distances within the scope of insulation requirements in accordance with IEC 60664-1. Processing notes Process Reflow soldering Specification Following IPC/JEDEC J-STD-020E:2014-12 Moisture Sensitive Level MSL 1 Classification temperature Tc 260 °C Ambient conditions Ambient temperature (storage/transport) -40 °C ... 70 °C Relative humidity (storage/transport) 30 % ... 70 % Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -55 °C ... 125 °C Mechanical tests Insertion and withdrawal force per contact 0.5 N Air clearances and creepage distances Air clearances and creepage distances min. 0.4 mm Current carrying capacity / derating curves Caption Type: FP 1,27/...-FH with FP 1,27/...-MH Service life Service life 500 Insertion/withdrawal cycles, Performance level 1 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 12/21/2021   Page 3 / 7 https://www.phoenixcontact.com/pi/products/1714916 SMD male connectors - FP 1,27/ 26-MH - 1714916 Current strength [A] Diagram 2,5 2,0 1,5 1,0 0,5 0 0 20 40 60 80 100 120 140 Ambient temperature [°C] Type: FP 1,27/...-FH with FP 1,27/...-MH Classifications eCl@ss eCl@ss 10.0.1 27440402 eCl@ss 11.0 27460201 eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440402 eCl@ss 9.0 27440402 ETIM ETIM 6.0 EC002637 ETIM 7.0 EC002637 UNSPSC UNSPSC 18.0 39121409 UNSPSC 19.0 39121409 UNSPSC 20.0 39121409 UNSPSC 21.0 39121409 Approvals Approvals Approvals cULus Recognized Ex Approvals 12/21/2021   Page 4 / 7 https://www.phoenixcontact.com/pi/products/1714916 SMD male connectors - FP 1,27/ 26-MH - 1714916 Approvals Approval details cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E118976-20170331 Accessories Additional products SMD female connectors - FP 1,27/ 26-FV 9,05 - 1714882 SMD female connector, Nominal current at 20 °C: 1.4 A, Test voltage: 500 V AC, number of positions: 26, pitch: 1.27 mm, color: black, contact surface: Gold, type of contact: Female connector, mounting: SMD soldering     SMD female connectors - FP 1,27/ 26-FV 6,25 - 1714894 SMD female connector, Nominal current at 20 °C: 1.4 A, Test voltage: 500 V AC, number of positions: 26, pitch: 1.27 mm, color: black, contact surface: Gold, type of contact: Female connector, mounting: SMD soldering     SMD female connectors - FP 1,27/ 26-FH - 1714873 SMD female connector, Nominal current at 20 °C: 1.4 A, Test voltage: 500 V AC, number of positions: 26, pitch: 1.27 mm, color: black, contact surface: Gold, type of contact: Female connector, mounting: SMD soldering     IDC female connectors - FP 1,27/ 26-FWL - 1714905 IDC female connector, Nominal current at 20 °C: 1.2 A, Test voltage: 500 V AC, number of positions: 26, pitch: 1.27 mm, Number of rows: 1, color: black, contact surface: Gold, type of contact: Female connector, For pre-assembled samples, see the “Accessories” tab.     12/21/2021   Page 5 / 7 https://www.phoenixcontact.com/pi/products/1714916 SMD male connectors - FP 1,27/ 26-MH - 1714916 Accessories Preassembled IDC female connector - FP 1,27/ 26-FWL-10/.../... - 1010256 Assembled IDC female connector, rated current: 1.2 A, cable length: Free input (0.05 ... 0.95 m), Cable type:Flatribbon conductor, Flat-ribbon conductor. For pre-assembled samples, see the “Accessories” tab.     Preassembled IDC female connector - FP 1,27/ 26-FWL-11/.../... - 1010248 Assembled IDC female connector, rated current: 1.2 A, cable length: Free input (0.05 ... 0.95 m), Cable type:Flatribbon conductor, Flat-ribbon conductor. For pre-assembled samples, see the “Accessories” tab.     Preassembled IDC female connector - FP 1,27/ 26-FWL-12/.../... - 1010239 Assembled IDC female connector, rated current: 1.2 A, cable length: Free input (0.05 ... 0.95 m), Cable type:Flatribbon conductor, Flat-ribbon conductor. For pre-assembled samples, see the “Accessories” tab.     Preassembled IDC female connector - FP 1,27/ 26-FWL-20/.../... - 1010230 Assembled IDC female connector, rated current: 1.2 A, cable length: Free input (0.05 ... 0.95 m), Cable type:Flatribbon conductor, Flat-ribbon conductor. For pre-assembled samples, see the “Accessories” tab.     Preassembled IDC female connector - FP 1,27/ 26-FWL-21/.../... - 1010211 Assembled IDC female connector, rated current: 1.2 A, cable length: Free input (0.05 ... 0.95 m), Cable type:Flatribbon conductor, Flat-ribbon conductor. For pre-assembled samples, see the “Accessories” tab.     12/21/2021   Page 6 / 7 https://www.phoenixcontact.com/pi/products/1714916 Phoenix Contact 2021 © - all rights reserved http://www.phoenixcontact.com PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg Germany Tel. +49 5235 300 Fax +49 5235 3 41200 http://www.phoenixcontact.com 12/21/2021   Page 7 / 7
