2019-05-06
Product version 00
Data sheet
Document revision 00
Order No.: 1714934
Type: FP 1,27/ 12-MV 1,75
SMD male connector, Reflow soldering

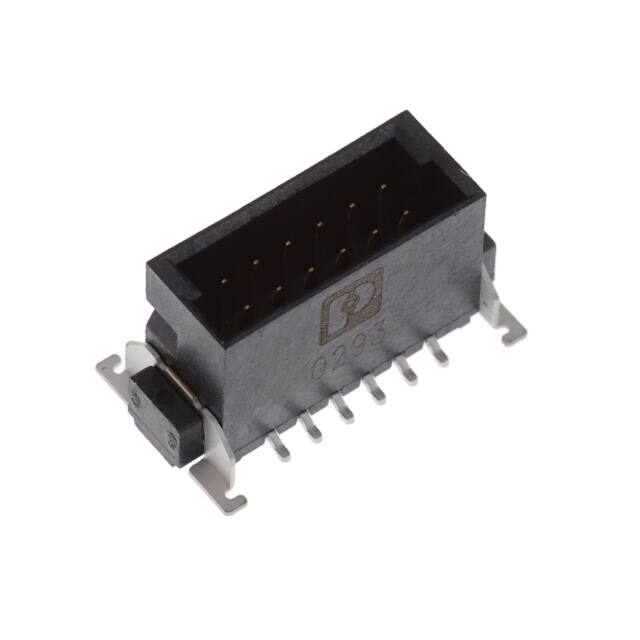

The figure shows a 12-pos. version with 12 contacts
No. of pos.
Test voltage
Color
Pitch
12
500 V AC
black (9005)
1.27 mm
Nominal current
Mounting type
Connection direction
Type of packaging
1.4 A
SMD soldering
90 °
24 mm wide tape
Main features
1
Your advantages
Gold-plated contacts ensure transfer quality remains stable over the long term
Compact, high-position board-to-board or wire-to-board connectors for space-saving device designs
Stacked, coplanar or orthogonal PCB connections enable maximum flexibility in the device
Male and female connectors of different height can be combined – for individual PCB spacing of 8 mm ... 13.8 mm
Make sure you always use the latest documentation.
It can be downloaded at: phoenixcontact.net/product/1714934
© PHOENIX CONTACT 2019
2
2019-05-06
Product version 00
Main features........................................................................................................................... 1
2
Your advantages ..................................................................................................................... 1
3
Table of contents ..................................................................................................................... 2
4
3D model in PDF can be activated (Acrobat Reader only)....................................................... 3
5
General Technical Data ........................................................................................................... 4
5.1
item properties .................................................................................................................... 4
5.2
Material data ...................................................................................................................... 4
6
Dimensions.............................................................................................................................. 5
6.1
Dimensions for the product .................................................................................................... 5
6.2
Dimensions for the application ................................................................................................ 5
7
Series drawing......................................................................................................................... 6
8
Packaging information ............................................................................................................. 7
9
Blister drawing ......................................................................................................................... 8
10
Application............................................................................................................................... 9
10.1 Temperature limit values ....................................................................................................... 9
11
General tests ......................................................................................................................... 10
11.1 Specification..................................................................................................................... 10
12
Mechanical tests.................................................................................................................... 11
12.1 Insertion and withdrawal force per contact ............................................................................... 11
12.2 Service life ....................................................................................................................... 11
13
Electrical tests ....................................................................................................................... 12
13.1 Electrical data ................................................................................................................... 12
13.2 Air and creepage distances .................................................................................................. 12
14
Current carrying capacity/derating curves ............................................................................. 13
14.1 Insulation resistance ........................................................................................................... 13
14.2 forward resistance ............................................................................................................. 14
14.3 Vibration test .................................................................................................................... 14
15
Approvals .............................................................................................................................. 14
16
Commercial Data................................................................................................................... 15
17
Combination tests.................................................................................................................. 16
Table of contents
1
© PHOENIX CONTACT 2019
3
Document revision 00
1714934 FP 1,27/ 12-MV 1,75
REF 1714934
PHOENIX CONTACT 2 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
3D model in PDF can be activated (Acrobat Reader only)
© PHOENIX CONTACT 2019
4
Document revision 00
REF 1714934
PHOENIX CONTACT 3 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
5
General Technical Data
5.1
item properties
Document revision 00
Order No.
1714934
Type
FP 1,27/ 12-MV 1,75
Plug-in system
Fine Pitch 1,27 mm
Product type
SMD male connector
Type of contact
Male connector
Range of articles
FP 1,27/...-MV 1,75
Pitch
1.27 mm
Range of positions
12...80
Number of positions
12
Number of levels
2
Number of potentials
12
Type of locking
without
Mounting type
SMD soldering
Connection direction of the connector to the PCB
90 °
Pin layout
Linear pad geometry
5.2
Material data
Material of metal parts
WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201
Contact material
Cu alloy
Surface contact area
Nickel (Ni), Palladium nickel (PdNi) , Gold (Au)
Surface characteristics
Selective coating
Insulating material data
Housing
Insulating material
LCP
Note
IIIa
CTI according to IEC 60112
175
Flammability rating according to UL 94
V0
Color
black (9005)
© PHOENIX CONTACT 2019
Insulating material group
REF 1714934
PHOENIX CONTACT 4 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
6
Dimensions
6.1
Dimensions for the product
Document revision 00
Length
6 mm
Width
12.71 mm
Total height
7.45 mm
Height
6.7 mm
Base height
1.75 mm
Positioning pin geometry
ø 1.5-0.05 mm, Length of positioning pin: 0.75 mm
Coplanarity
≤ 0.1 mm
6.2
Dimensions for the application
Contact cover
0.9 mm
Overlap length
1.5 mm
Medium offset
± 0.7 mm in longitudinal and transverse direction
Angular tolerance
± 4 ° in longitudinal direction
± 2 ° in transverse direction
Stacking height
8 mm Tolerance: +1,5 mm (in combination with Range of articles:FP 1,27/...-FV
6,25)
Stacking height
10.8 mm Tolerance: +1,5 mm (in combination with Range of articles:FP 1,27/...FV 9,05)
© PHOENIX CONTACT 2019
Angular tolerance
REF 1714934
PHOENIX CONTACT 5 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
Series drawing
© PHOENIX CONTACT 2019
7
Document revision 00
REF 1714934
PHOENIX CONTACT 6 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
8
Document revision 00
Packaging information
Type of packaging
24 mm wide tape
Note on packaging
Tape-on-reel packaging in accordance with standard DIN EN 60286-3 and EIA481
Pieces per package
280
Outer packaging type
Transparent-Bag
[W] tape width
24 mm
[A] coil diameter
330 mm
[W2] coil overall dimension
30.4 mm
Number of products per coil
280
W2
A
© PHOENIX CONTACT 2019
W
REF 1714934
PHOENIX CONTACT 7 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
Blister drawing
© PHOENIX CONTACT 2019
9
Document revision 00
REF 1714934
PHOENIX CONTACT 8 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
10
Application
10.1
Temperature limit values
Document revision 00
-40 °C ... 70 °C
Ambient temperature (assembly)
-5 °C ... 100 °C
Ambient temperature (operation)
-55 °C ... 125 °C
© PHOENIX CONTACT 2019
Ambient temperature (storage/transport)
REF 1714934
PHOENIX CONTACT 9 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
11
General tests
11.1
Specification
Board-to-board connectors
© PHOENIX CONTACT 2019
Brief description
Document revision 00
REF 1714934
PHOENIX CONTACT 10 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
12
Mechanical tests
12.1
Insertion and withdrawal force per contact
Insertion and withdrawal force per contact
12.2
Document revision 00
approx. 0.5 N
Service life
IEC 60512-9-1:2010-03 (following)
Service life
500 Insertion/withdrawal cycles, Performance level 1
© PHOENIX CONTACT 2019
Specification
REF 1714934
PHOENIX CONTACT 11 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
13
Electrical tests
13.1
Electrical data
Document revision 00
Nominal current at 20 °C
1.4 A IEC 60512-5-2:2002-02 (50-pos.)
Test voltage
500 V AC IEC 60512-4-1:2003
13.2
Air and creepage distances
0.4 mm
© PHOENIX CONTACT 2019
Minimum value for clearance and creepage distance
REF 1714934
PHOENIX CONTACT 12 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
14
Document revision 00
Current carrying capacity/derating curves
Specification
IEC 60512-5-2:2002-02
Note
Representation based on IEC 60512-5-2:2002-02
Reduction factor
0.8
Number of positions
See diagram
Current strength [A]
Type: FP 1,27/...-FH with FP 1,27/...-MV 1,75
2,5
2,0
1,5
1,0
0,5
0
0
20
40
60
80
100
120
140
Ambient temperature [°C]
2,5
2,0
1,5
1,0
Current strength [A]
Type: FP 1,27/...-FV 6,25 with FP 1,27/...-MV 1,75
0,5
0
0
20
40
60
80
100
120
140
Ambient temperature [°C]
2,5
Current strength [A]
Type: FP 1,27/...-FV 9,05 with FP 1,27/...-MV 1,75
2,0
1,5
1,0
0,5
0
20
40
60
80
100
120
140
© PHOENIX CONTACT 2019
0
Ambient temperature [°C]
14.1
Insulation resistance
Insulation resistance
REF 1714934
≥ 10 GΩ, (IEC 60512-3-1:2002-02)
PHOENIX CONTACT 13 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
14.2
forward resistance
Contact resistance
14.3
Document revision 00
≤25 mΩ, (IEC 60512-2-1:2002-02)
Vibration test
Specification
IEC 60068-2-6:2007-12
Result
Test passed
Frequency
10 - 2000 - 10 Hz
Sweep speed
1 octave/min
Amplitude
1.5 mm (10 - 60.1 Hz)
Acceleration
20g (60.1 - 2000 Hz)
Test duration per axis
2.5 h
Test directions
X-, Y- and Z-axis
Note
15
Approvals
© PHOENIX CONTACT 2019
cULus Recognized
REF 1714934
PHOENIX CONTACT 14 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
16
Document revision 00
Commercial Data
Order No.
1714934
Type
FP 1,27/ 12-MV 1,75
Pieces per package
280
Net weight
1.93 g
GTIN
4055626403083
Information that applies locally, see link on page 1
Information that applies locally, see link on page 1
© PHOENIX CONTACT 2019
Country of origin
REF 1714934
PHOENIX CONTACT 15 / 16
2019-05-06
Product version 00
1714934 FP 1,27/ 12-MV 1,75
17
Document revision 00
Combination tests
FP 1,27/...-MV 1,75
FP 1,27/...-FH
FP 1,27/...-FV 6,25 FP 1,27/...-FV 9,05 FP 1,27/...-FWL
approx. 0.5 N / 0.5 N
approx. 0.5 N / 0.5 N
approx. 0.5 N / 0.5 N
approx. 0.5 N / 0.5 N
Contact resistance R1
25 mΩ
25 mΩ
25 mΩ
10 mΩ
Insertion/withdrawal cycles
500
500
500
500
Contact resistance R2
25 mΩ
25 mΩ
25 mΩ
10 mΩ
Test voltage
500 V AC
500 V AC
500 V AC
500 V AC
Tested number of positions
50
50
50
50
Test current
1.4 A
1.4 A
1.4 A
1.4 A
Mechanical tests
Insertion/withdrawal force per position
Durability tests
© PHOENIX CONTACT 2019
Thermal tests
REF 1714934
PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany
phoenixcontact.com
PHOENIX CONTACT 16 / 16
