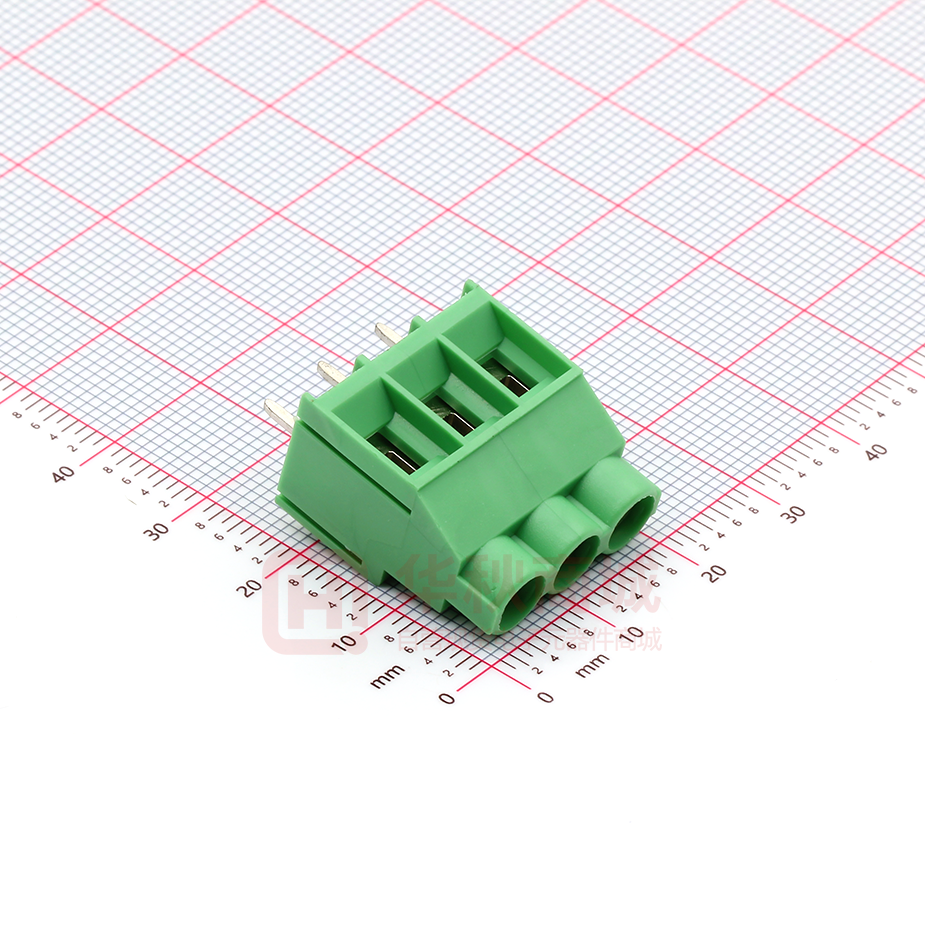

https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, nominal current: 32 A, pitch: 6.35 mm, number of positions: 3, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green. The article can be aligned to create different nos. of positions! Your advantages  Well-known connection principle allows worldwide use  Low temperature rise, thanks to maximum contact force  Allows connection of two conductors  The latching on the side enables various numbers of positions to be combined Key Commercial Data Packing unit 1 pc Minimum order quantity 50 pc GTIN GTIN 4017918024109 Weight per Piece (excluding packing) 8.350 g Custom tariff number 85369010 Country of origin Germany Technical data Dimensions Length [ l ] 12.5 mm Pitch 6.35 mm Dimension a 12.7 mm Width [ w ] 19.05 mm Height 21.5 mm 09/10/2019   Page 1 / 11 https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Technical data Dimensions Height [ h ] 26.6 mm Solder pin [P] 5.1 mm Hole diameter 1.3 mm General Range of articles MKDS 5 Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 500 V Rated voltage (III/2) 630 V Rated voltage (II/2) 1000 V Connection in acc. with standard EN-VDE Nominal current IN 32 A Nominal cross section 4 mm² Maximum load current 32 A Insulating material PA Flammability rating according to UL 94 V0 Internal cylindrical gage A4 Stripping length 8 mm Number of positions 3 Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 6 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 4 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 4 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 10 2 conductors with same cross section, solid min. 0.2 mm² 09/10/2019   Page 2 / 11 https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Technical data Connection data 2 conductors with same cross section, solid max. 1.5 mm² 2 conductors with same cross section, stranded min. 0.2 mm² 2 conductors with same cross section, stranded max. 1.5 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 0.75 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 2.5 mm² sleeve, max. Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 09/10/2019   Page 3 / 11 https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Drilling diagram 09/10/2019   Page 4 / 11 https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Diagram Type: MKDS 5/2-6,35 and MKDS 5/3-6,35 Test following DIN EN 60512-5-2:2003-01 Reduction factor = 1 No. of positions: 5 09/10/2019   Page 5 / 11 https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Diagram Derating diagram for 5 pins;reduction factor=1 09/10/2019   Page 6 / 11 https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Dimensional drawing Classifications eCl@ss eCl@ss 4.0 27141100 eCl@ss 4.1 27141100 eCl@ss 5.0 27141100 eCl@ss 5.1 27261100 eCl@ss 6.0 27261100 eCl@ss 7.0 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 ETIM 6.0 EC002643 ETIM 7.0 EC002643 09/10/2019   Page 7 / 11 https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Classifications UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals DNV GL / CSA / RS / CCA / SEV / EAC / cULus Recognized Ex Approvals Approval details DNV GL    https://approvalfinder.dnvgl.com/  TAE00001EV CSA    http://www.csagroup.org/services-industries/product-listing/  13631   B D Nominal voltage UN 300 V 300 V Nominal current IN 10 A 10 A mm²/AWG/kcmil 28-10 28-10 RS    http://www.rs-head.spb.ru/en/index.php  17.00014.272    IK-3249 CCA      Nominal voltage UN 450 V 09/10/2019   Page 8 / 11 https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Approvals     mm²/AWG/kcmil 4 SEV    https://www.electrosuisse.ch/de/meta/shop/produktezertifikate.html     Nominal voltage UN 450 V Nominal current IN 32 A mm²/AWG/kcmil 4  IK-4199 EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E60425-19770427   B D Nominal voltage UN 300 V 300 V Nominal current IN 30 A 10 A mm²/AWG/kcmil 30-10 30-10 Accessories Accessories Labeled terminal marker Marker card - SK 6,2/3,8:FORTL.ZAHLEN - 0804374 Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100, mounting type: adhesive, for terminal block width: 6.2 mm, lettering field size: 6.2 x 3.8 mm     09/10/2019   Page 9 / 11 https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Accessories Marker card - SK 3,8 REEL P6,2 WH CUS - 0825126 Marker card, can be ordered: By card, white, labeled according to customer specifications, mounting type: adhesive, for terminal block width: 6.2 mm, lettering field size: continuous x 3.8 mm     Screwdriver tools Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Terminal marking Marker strip - SK 5,0 WH:REEL - 0805221 Marker strip, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: adhesive, for terminal block width: 5 mm, lettering field size: continuous x 5 mm, Number of individual labels: 90000     Marker strip - SK 3,8 WH:REEL - 0805218 Marker strip, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: adhesive, for terminal block width: 90000 mm, lettering field size: continuous x 3.8 mm, Number of individual labels: 210000     Additional products 09/10/2019   Page 10 / 11 https://www.phoenixcontact.com/us/products/1714968 PCB terminal block - MKDS 5/ 3-6,35 - 1714968 Accessories PCB terminal block - MKDS 5/ 2-6,35 - 1714955 PCB terminal block, nominal current: 32 A, pitch: 6.35 mm, number of positions: 2, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green. The article can be aligned to create different nos. of positions!     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 09/10/2019   Page 11 / 11
