PCB terminal block - MKDS 5/ 3-9,5 - 1714984
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

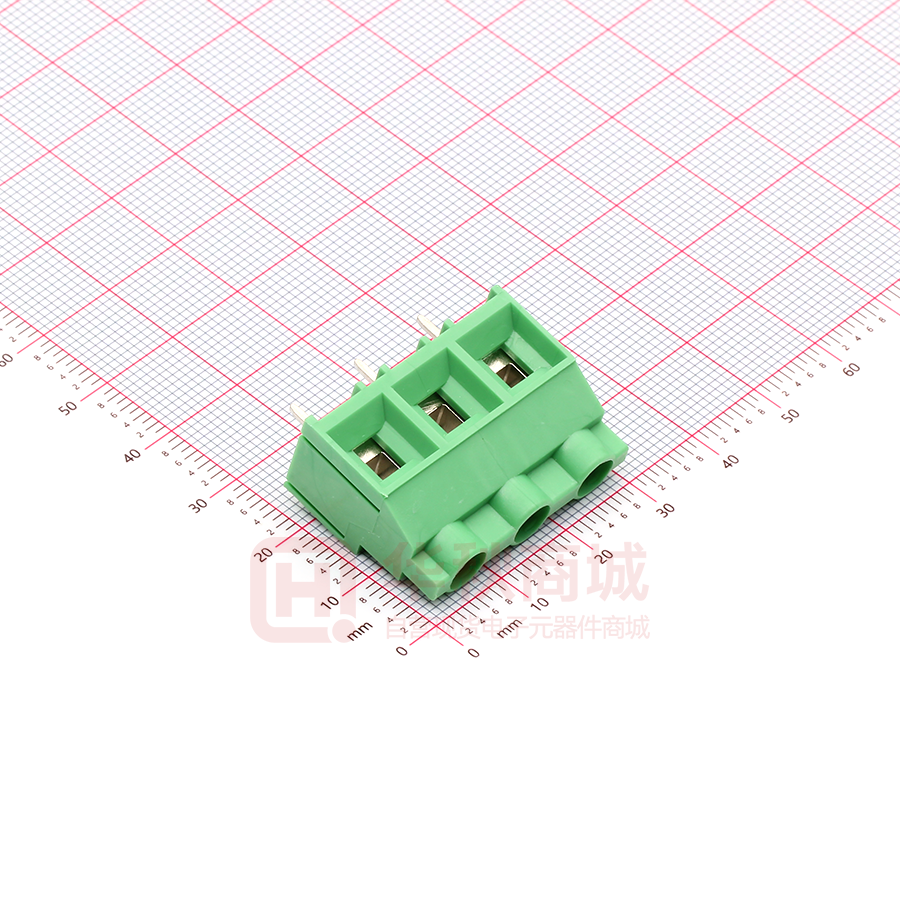

PCB terminal block, Nominal current: 32 A, Nom. voltage: 1000 V, Pitch: 9.52 mm, Number of positions:
3, Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB
connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
Why buy this product
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Key Commercial Data
Packing unit
50 STK
Minimum order quantity
50 STK
GTIN
GTIN
4017918024123
Weight per Piece (excluding packing)
8.760 g
Custom tariff number
85369010
Country of origin
Germany
Technical data
Dimensions
Length
19.05 mm
Pitch
9.52 mm
Dimension a
19.04 mm
Constructional height
22 mm
Height
21.5 mm
Length of the solder pin
5 mm
Pin dimensions
0,9 x 0,9 mm
Hole diameter
1.3 mm
General
12/22/2016 Page 1 / 5
https://www.phoenixcontact.com/gb/products/1714984
PCB terminal block - MKDS 5/ 3-9,5 - 1714984
Technical data
General
Range of articles
MKDS 5
Insulating material group
I
Rated surge voltage (III/3)
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/3)
690 V
Rated voltage (III/2)
1000 V
Rated voltage (II/2)
1000 V
Connection in acc. with standard
EN-VDE
Nominal current IN
32 A
Nominal cross section
4 mm²
Maximum load current
32 A
Insulating material
PA
Solder pin surface
Sn
Flammability rating according to UL 94
V0
Internal cylindrical gage
A4
Stripping length
8 mm
Number of positions
3
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Connection data
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
6 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.
4 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
10
2 conductors with same cross section, solid min.
0.2 mm²
2 conductors with same cross section, solid max.
1.5 mm²
2 conductors with same cross section, stranded min.
0.2 mm²
2 conductors with same cross section, stranded max.
1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.75 mm²
12/22/2016 Page 2 / 5
https://www.phoenixcontact.com/gb/products/1714984
PCB terminal block - MKDS 5/ 3-9,5 - 1714984
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2.5 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Drilling diagram
Dimensional drawing
a
12,5
a+9,52
21,5
4,8
5
1,3
4,6
9,52
4,6
4,76
9,52
a
Classifications
eCl@ss
eCl@ss 4.0
27141109
eCl@ss 4.1
27141109
eCl@ss 5.0
27141190
eCl@ss 5.1
27141190
eCl@ss 6.0
27261101
eCl@ss 7.0
27440401
eCl@ss 8.0
27440401
eCl@ss 9.0
27440401
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002643
ETIM 5.0
EC002643
ETIM 6.0
EC002643
12/22/2016 Page 3 / 5
https://www.phoenixcontact.com/gb/products/1714984
PCB terminal block - MKDS 5/ 3-9,5 - 1714984
Classifications
UNSPSC
UNSPSC 6.01
30211801
UNSPSC 7.0901
39121432
UNSPSC 11
39121432
UNSPSC 12.01
39121432
UNSPSC 13.2
39121432
Approvals
Approvals
Approvals
CSA / SEV / RS / CCA / EAC / cULus Recognized / DNV GL
Ex Approvals
Approval details
CSA
http://www.csagroup.org/services/testingand-certification/certified-product-listing/
B
C
mm²/AWG/kcmil
28-10
28-10
Nominal current IN
30 A
30 A
Nominal voltage UN
300 V
300 V
SEV
https://www.electrosuisse.ch/en/meta/shop/product-certificates.html
mm²/AWG/kcmil
6
Nominal current IN
32 A
Nominal voltage UN
690 V
RS
13631
IK-3248
http://www.rs-head.spb.ru/en/index.php
10.04059.250
IK-3249
CCA
mm²/AWG/kcmil
6
12/22/2016 Page 4 / 5
https://www.phoenixcontact.com/gb/products/1714984
PCB terminal block - MKDS 5/ 3-9,5 - 1714984
Approvals
Nominal voltage UN
690 V
EAC
cULus Recognized
B.01742
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19770427
B
C
D
mm²/AWG/kcmil
30-10
30-10
30-10
Nominal current IN
30 A
30 A
5A
Nominal voltage UN
300 V
300 V
600 V
DNV GL
https://www.dnvgl.com/
TAE00001EV
Accessories
Accessories
Screwdriver tools
Screwdriver - SZS 0,6X3,5 - 1205053
Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100
mm, 2-component grip, with non-slip grip
Additional products
PCB terminal block - MKDS 5/ 2-9,5 - 1714971
PCB terminal block, Nominal current: 32 A, Nom. voltage: 1000 V, Pitch: 9.52 mm, Number of positions: 2,
Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB connection
direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!
