1715022

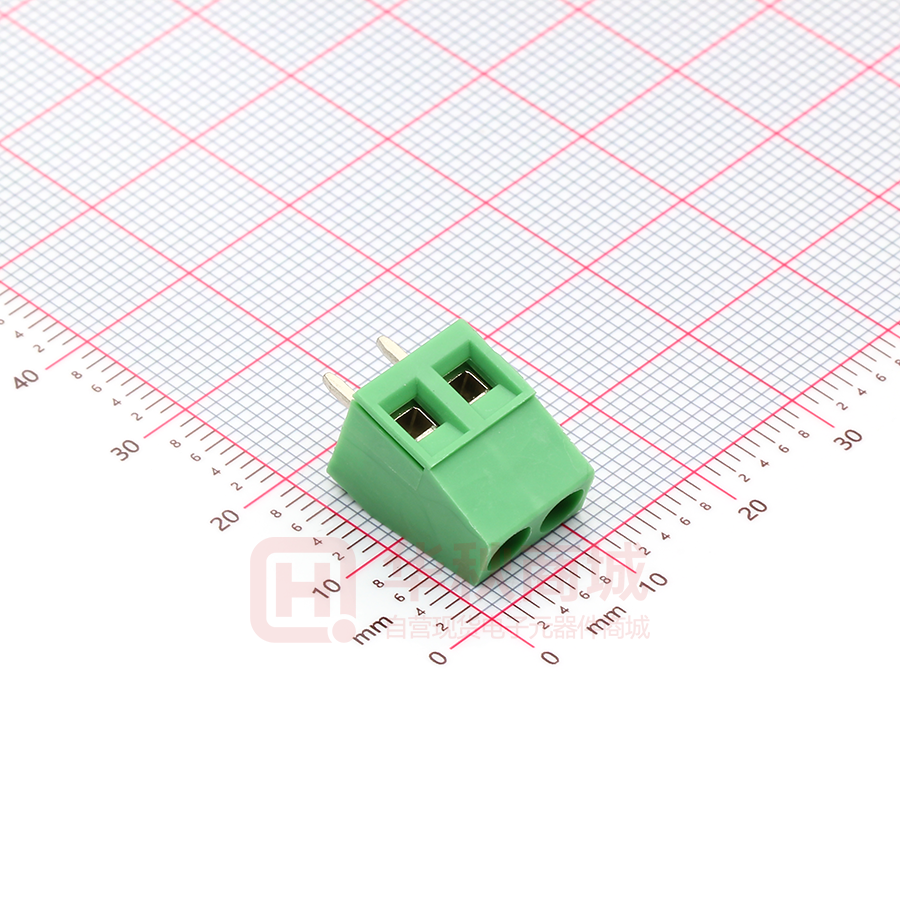

Extract from the online catalog     MKDS 1,5/ 2 Order No.: 1715022 The figure shows a 10-position version of the product http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1715022   PC terminal block, Nominal current: 17.5 A, Nom. voltage: 250 V, Pitch: 5 mm, Number of positions: 2, Type of connection: Screw connection, Assembly: Soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!   Product notes WEEE/RoHS-compliant since: 01/01/2003 Commercial data EAN 4017918024147 Pack 50 pcs. Customs tariff 85369010 Weight/Piece 0.00291 KG Catalog page information Page 63 (CC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data Dimensions / positions Length 9.8 mm Pitch 5 mm Dimension a 5 mm PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 1 / 6 Feb 23, 2010 MKDS 1,5/ 2 Order No.: 1715022 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1715022 Number of positions 2 Pin dimensions 0,9 x 0,9 mm Pin spacing 5 mm Hole diameter 1.3 mm Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Technical data Insulating material group I Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/2) 400 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 17.5 A Nominal voltage UN 250 V Nominal cross section 1.5 mm² Maximum load current 22 A (with 2.5 mm conductor cross section) Insulating material PA Inflammability class acc. to UL 94 V0 Internal cylindrical gage A1 Stripping length 7 mm 2 Connection data Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section stranded min. 0.14 mm² Conductor cross section stranded max. 1.5 mm² Conductor cross section stranded, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule without plastic sleeve max. 1.5 mm² Conductor cross section stranded, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule with plastic sleeve max. 1.5 mm² PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 2 / 6 Feb 23, 2010 MKDS 1,5/ 2 Order No.: 1715022 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1715022 Conductor cross section AWG/kcmil min. 26 Conductor cross section AWG/kcmil max 14 2 conductors with same cross section, solid min. 0.14 mm² 2 conductors with same cross section, solid max. 1 mm² 2 conductors with same cross section, stranded min. 0.14 mm² 2 conductors with same cross section, stranded max. 0.75 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 0.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. 0.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. 1 mm² Certificates / Approvals Certification CCA, CSA, CUL, GL, GOST, SEV, UL CSA Nominal voltage UN 300 V Nominal current IN 10 A AWG/kcmil 28-14 CUL Nominal voltage UN 300 V Nominal current IN 10 A AWG/kcmil 30-14 UL Nominal voltage UN 300 V Nominal current IN 10 A AWG/kcmil 30-14 PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 3 / 6 Feb 23, 2010 MKDS 1,5/ 2 Order No.: 1715022 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1715022 Accessories Item Designation Description RZ 1,25-MKDS 1,5 Pitch spacer, for adjusting the pitches between MKDS and GMKDS terminal blocks in mixed rows, 1.25 mm thick EBP 2- 5 Insertion bridge, fully insulated, for plug connectors with 5.0 or 5.08 mm pitch, no. of positions: 2 SK 5/3,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 12 identical decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for 120 terminal blocks SZS 0,6X3,5 Screwdriver, bladed, matches all screw terminal blocks up to 4.0 mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE approval Assembly 1702048 General 1733169 Marking 0804183 Tools 1205053 Diagrams/Drawings Drilling plan/solder pad geometry PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 4 / 6 Feb 23, 2010 MKDS 1,5/ 2 Order No.: 1715022 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1715022 Diagram Dimensioned drawing PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 5 / 6 Feb 23, 2010 MKDS 1,5/ 2 Order No.: 1715022 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1715022 Address PHOENIX CONTACT Deutschland GmbH Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 12000 Fax +49 5235 3 41200 http://www.phoenixcontact.de © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 6 / 6 Feb 23, 2010
