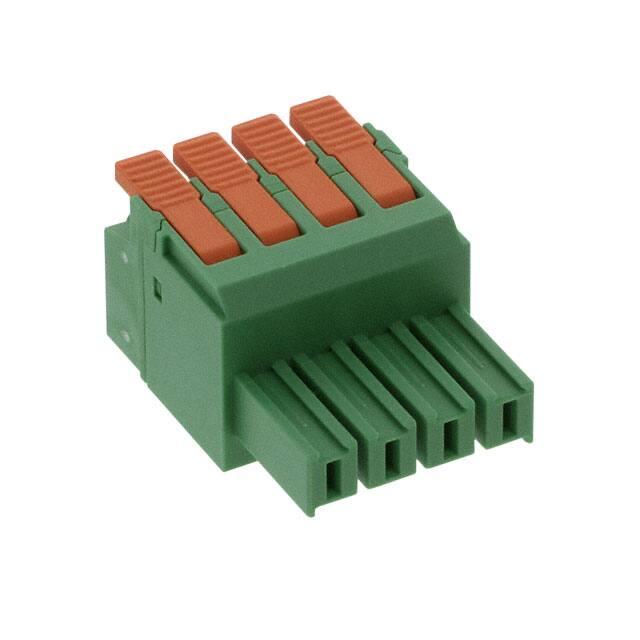

2018-12-14 Product version 00 Data sheet Document revision 00 Order No.: 1716923 Type: LPC 6/ 4-ST-7,62 PCB connector, Push-in spring connection Main features      No. of pos. Conductor cross section Color Pitch Connection method 4 6 mm² green (6021) 7.62 mm Push-in spring connection     Nominal current Nominal voltage Connection direction Type of packaging 41 A 1000 V 0° packed in cardboard   1   The figure shows the 4-position version Your advantages   Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules Clear lever positions provide reliable feedback on opened or closed clamping spaces Defined contact force ensures that contact remains stable over the long term Time-saving push-in connection when lever is closed Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1716923 © PHOENIX CONTACT 2018 2 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 Document revision 00 Table of contents 1 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 item properties......................................................................................................................... 4 6 Dimensions.............................................................................................................................. 6 7 Series drawing......................................................................................................................... 7 8 Packaging information ............................................................................................................. 8 9 Application............................................................................................................................... 8 10 General tests ........................................................................................................................... 9 11 Mechanical tests...................................................................................................................... 9 12 Electrical tests ....................................................................................................................... 11 13 Current carrying capacity/derating curves ............................................................................. 12 14 Environmental and durability tests ......................................................................................... 13 15 Classification for connectors.................................................................................................. 13 16 Approvals .............................................................................................................................. 13 17 Commercial Data................................................................................................................... 14 18 corresponding headers.......................................................................................................... 14 19 Accessories ........................................................................................................................... 14 20 Combination tests.................................................................................................................. 15 © PHOENIX CONTACT 2018       3 REF 1716921 PHOENIX CONTACT 2 / 15 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2018       4 Document revision 00 REF 1716921 PHOENIX CONTACT 3 / 15 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 5 Document revision 00 item properties Order No. 1716923 Type LPC 6/ 4-ST-7,62 Plug-in system POWER COMBICON 6 Product type PCB connector Type of contact Female connector Range of articles LPC 6/..-ST Pitch 7.62 mm Range of positions 2...6 Number of positions 4 Number of levels 1 Number of connections 4 Number of potentials 4 Connection method Push-in spring connection Type of locking without without Connection direction of the connector to the PCB Solder pins per potential 5.1 1 Connection capacity Conductor cross section, solid 0.75 mm² ... 10 mm² 0.75 mm² ... 6 mm² Conductor cross section flexible, with ferrule without plastic sleeve 0.75 mm² ... 6 mm² Conductor cross section flexible, with ferrule with plastic sleeve 0.75 mm² ... 6 mm²   Conductor cross section, flexible Cylindrical gauge a x b / diameter 4.3 mm x 4.0 mm / 4.0 mm Stripping length 18 mm Connection capacity AWG   5.2 Conductor cross section AWG Material data   5.3 18 ... 8 Material of metal parts Note WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Terminal point surface Tin (4 - 8 µm Sn) Tin (4 - 8 µm Sn) Surface characteristics Tin-plated Insulating material data Housing Actuation element Insulating material PA GF PA Insulating material group I I CTI according to IEC 60112 600 600 Flammability rating according to UL 94 V0 V0 Color green (6021) REF 1716921 © PHOENIX CONTACT 2018 Surface contact area PHOENIX CONTACT 4 / 15 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 Document revision 00 Housing Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-2-13 775 Temperature for the ball pressure test according to EN 60695-10-2 125 °C Actuation element © PHOENIX CONTACT 2018       Insulating material data REF 1716921 PHOENIX CONTACT 5 / 15 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 6 Dimensions 6.1 Dimensions for the product Document revision 00 48 mm Width 32.48 mm Total height 35.65 mm Dimension a 22.86 mm © PHOENIX CONTACT 2018       Length REF 1716921 PHOENIX CONTACT 6 / 15 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 Series drawing © PHOENIX CONTACT 2018       7 Document revision 00 REF 1716921 PHOENIX CONTACT 7 / 15 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 8 Document revision 00 Packaging information Type of packaging packed in cardboard Pieces per package 25 9 Application 9.1 Temperature limit values -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C (dependent on the derating curve) © PHOENIX CONTACT 2018       Ambient temperature (storage/transport) REF 1716921 PHOENIX CONTACT 8 / 15 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 10 General tests 10.1 Specification Document revision 00 Specification IEC 61984 Specification IEC 60999-1 11 Mechanical tests 11.1 Check for damage to conductor or loosening Result Test passed Specification IEC 60999-1:1999-11 11.2 Pull-out test Specification IEC 60999-1:1999-11 Result Test passed Conductor cross section/conductor type/tractive force actual value 0.75 mm² / solid / > 30 N Conductor cross section/conductor type/tractive force actual value 0.75 mm² / flexible / > 30 N Conductor cross section/conductor type/tractive force actual value 10 mm² / solid / > 90 N Conductor cross section/conductor type/tractive force actual value 6 mm² / flexible / > 80 N Repeated connection and disconnection   11.3 Specification IEC 60999-1:1999-11 Result Test passed Conductor connection   11.4 Specification IEC 60999-1:1999-11 Result Test passed   Mechanical test group A Specification IEC 61984:2008-10 Visual examination Test passed Specification IEC 60512-1-1:2002-02 Dimensional test Test passed Specification IEC 60512-1-2:2002-02 Resistance of marking Test passed Specification IEC 60068-2-70:1995-12 Insertion and withdrawal force Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 25 Insertion strength per pos. approx. 11 N Withdraw strength per pos. approx. 10 N Polarization and coding Test passed REF 1716921 © PHOENIX CONTACT 2018 11.5 PHOENIX CONTACT 9 / 15 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 Document revision 00 Specification IEC 60512-13-5:2006-02 Test force 20 N Contact retention in insert Test passed IEC 60512-15-1:2008-05 Test force per pos. 20 N © PHOENIX CONTACT 2018       Specification REF 1716921 PHOENIX CONTACT 10 / 15 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 12 Electrical tests 12.1 Electrical data Rated current / conductor cross section Document revision 00 41 A / 6 mm² Rated insulation voltage (III/2) 1000 V Rated surge voltage (III/2) 8 kV Contact resistance 0.5 mΩ Degree of pollution 2 12.2 Air and creepage distances Component PCB connector Specification IEC 60664-1:2007-04 Mains type unearthed mains Insulating material group I Comparative tracking index (IEC 60112:2003-01) CTI 600 Rated insulation voltage 800 V 1000 V 1000 V Rated surge voltage 8 kV 8 kV 6 kV Degree of pollution 3 2 2 Overvoltage category III III II Minimum clearance case A (inhomogeneous field) 8 mm 8 mm 5.5 mm Minimum value of the creepage path requirement in acc. with table 10 mm 5 mm 5 mm Electrical function Specification IEC 60999-1:1999-11 Result Test passed Voltage drop Voltage drop (U) after the load ≤ 15 mV Conductor cross section, flexible 0.75 mm² ... 6 mm² Conductor cross section, solid 0.75 mm² ... 10 mm² Temperature cycles   12.4     12.3 Specification Test passed Voltage drop (U) after the load ≤ 22.5 mV or 1.5 x U after 24 h The small value is to be used. Test current (minimum cross section) 9 A DC Test current (maximum cross section) 41 A DC Temperature cycles 192 Conductor cross section, flexible 0.75 mm² ... 6 mm² Conductor cross section, solid 0.75 mm² ... 10 mm² REF 1716921 © PHOENIX CONTACT 2018 Result Voltage drop PHOENIX CONTACT 11 / 15 2018-12-14 Product version 00 1716923 LPC 6/ 4-ST-7,62 13 Document revision 00 Current carrying capacity/derating curves Specification IEC 61984:2008-10 Note Representation based on IEC 60512-5-2:2002-02 Reduction factor 0.8 Number of positions See diagram Conductor cross section 6 mm² Current strength [A] Typ: LPC 6/...-ST-7,62 mit PC 6/...-G-7,62 80 72 64 56 48 40 32 24 16 8 0

= ∑20 N Test passed Test passed Test passed Contact holder in insert Requirements >20 N Test passed Test passed Test passed Durability tests (B) Contact resistance R1 0.5 mΩ 0.5 mΩ 0.5 mΩ Insertion/withdrawal cycles 25 25 25 Contact resistance R2 0.5 mΩ 0.5 mΩ 0.5 mΩ Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 7.3 kV 7.3 kV 7.3 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 3.31 kV 3.31 kV 3.31 kV Thermal tests (C) 4 4 4 Tested conductor cross section 6 mm² 6 mm² 6 mm²   Tested number of positions 41 A 41 A 41 A Upper limiting temperature Requirements < 100°C Test passed Test passed Test passed -40 °C/2 h -40 °C/2 h -40 °C/2 h Test sequence 2: heat storage 100 °C/168 h 100 °C/168 h 100 °C/168 h Test sequence 3: noxious gas storage (ISO 6988) 0.2 dm3 SO2 on 300 dm3/ 0.2 dm3 SO2 on 300 dm3/ 0.2 dm3 SO2 on 300 dm3/ 40 °C/1 cycle 40 °C/1 cycle 40 °C/1 cycle Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 7.3 kV 7.3 kV 7.3 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 3.31 kV 3.31 kV 3.31 kV   Test current Test sequence 1: low temperature storage   Climatic tests (D) Specification IEC 61984:2008-10 IEC 61984:2008-10 IEC 61984:2008-10 Degree of protection Finger safety with IP20 test finger Finger safety with IP20 test finger Finger safety with IP20 test finger REF 1716921 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com © PHOENIX CONTACT 2018 Environmental and endurance tests (E) PHOENIX CONTACT 15 / 15
