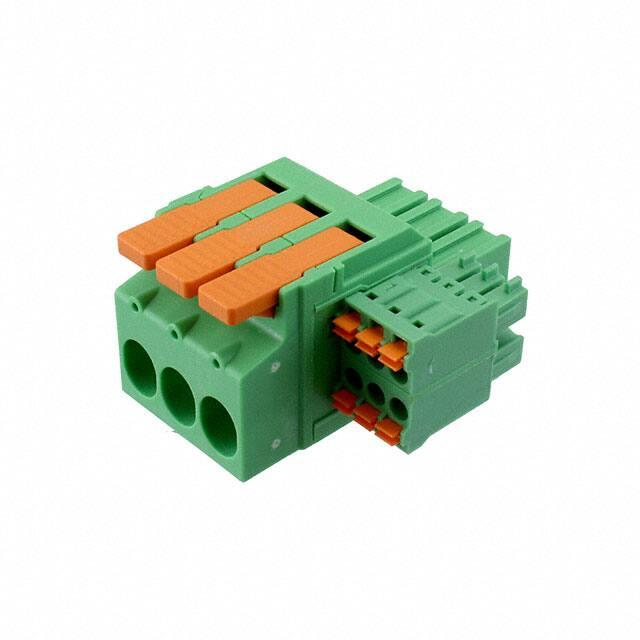

2019-03-15 Product version 00 Data sheet Document revision 00 Order No.: 1716954 Type: LPCH 6/ 3+6-ST-7,62 PCB hybrid connector, Push-in spring connection Main features      No. of pos. Conductor cross section Color Pitch Connection method 9 6 mm² green (6021) 7.62 mm Push-in spring connection     Nominal current Nominal voltage Connection direction Type of packaging 41 A 1000 V 0° packed in cardboard   1   Figure shows a 3+4-pos. version Your advantages   Tool-free lever principle enables time-saving connection and release of conductors with/without ferrules Clear lever positions provide reliable feedback on opened or closed clamping spaces Defined contact force ensures that contact remains stable over the long term Time-saving push-in connection when lever is closed Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1716954 © PHOENIX CONTACT 2019 2 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 Document revision 00 Table of contents 1 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 General Technical Data ........................................................................................................... 4 6 Material properties................................................................................................................... 5 7 Dimensions.............................................................................................................................. 6 8 Series drawing......................................................................................................................... 7 9 Packaging information ............................................................................................................. 8 10 Application............................................................................................................................... 8 11 General tests ........................................................................................................................... 9 12 Mechanical tests...................................................................................................................... 9 13 Electrical tests ....................................................................................................................... 11 14 Current carrying capacity/derating curves ............................................................................. 12 15 Environmental and durability tests ......................................................................................... 13 16 Classification for connectors.................................................................................................. 13 17 Approvals .............................................................................................................................. 13 18 Commercial Data................................................................................................................... 14 19 Accessories ........................................................................................................................... 14 20 Combination tests.................................................................................................................. 15 © PHOENIX CONTACT 2019       3 REF 1716952 PHOENIX CONTACT 2 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2019       4 Document revision 00 REF 1716952 PHOENIX CONTACT 3 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 5 General Technical Data 5.1 item properties Document revision 00 Order No. 1716954 Type LPCH 6/ 3+6-ST-7,62 Plug-in system POWER COMBICON 6 Hybrid Product type PCB hybrid connector Type of contact Female connector Range of articles LPCH 6/..-ST Number of positions 9 Number of connections 9 Number of potentials 9 Type of locking without without Connection direction of the connector to the PCB 0° Power Signal Pitch 7.62 mm 3.81 mm Connection method Push-in spring connection Push-in spring connection Number of levels 1 2 Number of positions 3 6 Number of connections 3 6 Number of potentials 3 6 Connection capacity   5.2 Power Signal Conductor cross section, solid 0.75 mm² ... 10 mm² 0.2 mm² ... 1.5 mm² 0.2 mm² ... 1.5 mm² 0.75 mm² ... 6 mm² 0.75 mm² ... 6 mm² 0.25 mm² ... 1.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve 0.75 mm² ... 6 mm² 0.25 mm² ... 1 mm² Cylindrical gauge a x b / diameter 4.3 mm x 4.0 mm / 4.0 mm 2.4 mm x 1.5 mm / 1.5 mm Stripping length 18 mm 10 mm Connection data AWG Power Signal Conductor cross section AWG 18 ... 8 24 ... 16   Conductor cross section, flexible Conductor cross section flexible, with ferrule without plastic sleeve   Connection capacity AWG © PHOENIX CONTACT 2019 5.3 REF 1716952 PHOENIX CONTACT 4 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 6 Material properties 6.1 RoHs/WEEE compliant Note 6.2 Document revision 00 WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Material of metal parts Contact material Power Signal Cu alloy Cu alloy Tin (4 - 8 µm Sn) Tin (4 - 8 µm Sn) Tin (4 - 8 µm Sn) Tin (4 - 8 µm Sn) Tin-plated hot-dip tin-plated Terminal point surface Surface contact area Surface characteristics 6.3 Material Kunststoffteile Insulating material Power Signal PA GF PA Insulating material group I I CTI according to IEC 60112 600 600 Flammability rating according to UL 94 V0 V0 Color green (6021) green (2003) 6.4 Insulation material specifications for actuating element Signal PA GF PBT Insulating material group I I CTI according to IEC 60112 600 600 Flammability rating according to UL 94 V0 V0 Color orange (2003) orange (2003) © PHOENIX CONTACT 2019       Power Insulating material REF 1716952 PHOENIX CONTACT 5 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 7 Dimensions 7.1 Dimensions for the product Document revision 00 48 mm Width 36.49 mm Total height 35.65 mm Dimension a 15.24 mm © PHOENIX CONTACT 2019       Length REF 1716952 PHOENIX CONTACT 6 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 Series drawing © PHOENIX CONTACT 2019       8 Document revision 00 REF 1716952 PHOENIX CONTACT 7 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 9 Document revision 00 Packaging information Type of packaging packed in cardboard Pieces per package 25 10 Application 10.1 Temperature limit values -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C (dependent on the derating curve) © PHOENIX CONTACT 2019       Ambient temperature (storage/transport) REF 1716952 PHOENIX CONTACT 8 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 11 General tests 11.1 Specification Document revision 00 Specification IEC 61984 Specification IEC 60999-1 Brief description PCB hybrid connector 12 Mechanical tests 12.1 Check for damage to conductor or loosening Result Test passed Specification IEC 60999-1:1999-11 12.2 Pull-out test Specification IEC 60999-1:1999-11 Result Test passed Conductor cross section/conductor type/tractive force actual value 0.75 mm² / solid / > 30 N Conductor cross section/conductor type/tractive force actual value 0.75 mm² / flexible / > 30 N Conductor cross section/conductor type/tractive force actual value 10 mm² / solid / > 90 N Conductor cross section/conductor type/tractive force actual value 6 mm² / flexible / > 80 N Repeated connection and disconnection   12.3 Specification IEC 60999-1:1999-11 Result Test passed Conductor connection   12.4 IEC 60999-1:1999-11 Result Test passed   Specification Mechanical test group A Specification IEC 61984:2008-10 Visual examination Test passed Specification IEC 60512-1-1:2002-02 Dimensional test Test passed Specification IEC 60512-1-2:2002-02 Resistance of marking Test passed Specification IEC 60068-2-70:1995-12 Insertion and withdrawal force Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 25 Insertion strength per pos. approx. 7N Withdraw strength per pos. approx. 4N REF 1716952 © PHOENIX CONTACT 2019 12.5 PHOENIX CONTACT 9 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 Polarization and coding Document revision 00 Test passed Specification IEC 60512-13-5:2006-02 Test force 20 N Contact retention in insert Test passed IEC 60512-15-1:2008-05 Test force per pos. 20 N © PHOENIX CONTACT 2019       Specification REF 1716952 PHOENIX CONTACT 10 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 13 Electrical tests 13.1 Electrical data Rated current / conductor cross section Document revision 00 41 A / 6 mm² Rated insulation voltage (III/2) 1000 V Rated surge voltage (III/2) 8 kV Contact resistance 0.42 mΩ Degree of pollution 2 13.2 Air and creepage distances Component PCB hybrid connector Specification IEC 60664-1:2007-04 Mains type unearthed mains Insulating material group I Comparative tracking index (IEC 60112:2003-01) CTI 600 Rated insulation voltage 800 V 1000 V 1000 V Rated surge voltage 8 kV 8 kV 6 kV Degree of pollution 3 2 2 Overvoltage category III III II Minimum clearance case A (inhomogeneous field) 8 mm 8 mm 5.5 mm Minimum value of the creepage path requirement in acc. with table 10 mm 5 mm 5 mm Electrical function Specification IEC 60999-1:1999-11 Result Test passed Voltage drop Voltage drop (U) after the load ≤ 15 mV Conductor cross section, flexible 0.75 mm² ... 6 mm² Conductor cross section, solid 0.75 mm² ... 10 mm² Temperature cycles   13.4     13.3 IEC 60999-1:1999-11 Result Test passed Voltage drop Voltage drop (U) after the load ≤ 22.5 mV or 1.5 x U after 24 h The small value is to be used. Test current (minimum cross section) 9 A DC Test current (maximum cross section) 41 A DC Temperature cycles 192 Conductor cross section, flexible 0.75 mm² ... 6 mm² Conductor cross section, solid 0.75 mm² ... 10 mm² REF 1716952 © PHOENIX CONTACT 2019 Specification PHOENIX CONTACT 11 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 14 Document revision 00 Current carrying capacity/derating curves Specification IEC 61984:2008-10 Note Representation based on IEC 60512-5-2:2002-02 Reduction factor 0.8 Number of positions See diagram Conductor cross section 6 mm² Current strength [A] Type: LPCH 6/...+...-ST-7,62 with PCH 6/...+...-G-7,62 80 72 64 56 48 40 32 24 16 8 0 = ∑ 5 MΩ © PHOENIX CONTACT 2019       Specification REF 1716952 PHOENIX CONTACT 12 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 15 Environmental and durability tests 15.1 Vibration test Document revision 00 Specification IEC 60068-2-6:2007-12 Result Test passed Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 5 g (60.1 - 150 Hz) Test duration per axis 2.5 h Test directions X-, Y- and Z-axis Note The connected conductor loops were guided to the test sample at a distance of approx. 10 cm. 16 Classification for connectors Specification IEC 61984:2008-10 Main features Connectors without switching capacity (COC) Construction form Fixed connectors Strain relief elements without strain relief Connection method Can be reconnected Protection against electric shock not encapsulated - back of hand safety when plugged in Protective conductor without PE no Connection method Screwless terminal points   Lock 16.1 Insulation resistance IEC 60512-3-1:2002-02 Result Test passed Insulation resistance, neighboring positions > 5 MΩ 17   Specification Approvals   cULus Recognized  Use group B1 F F1 mm²/AWG/kcmil 24-16 18-8 24-16 150 V 600 V 160 V Current 6A 35 A 6A © PHOENIX CONTACT 2019 Voltage REF 1716952 PHOENIX CONTACT 13 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 18 Document revision 00 Commercial Data Order No. 1716954 Type LPCH 6/ 3+6-ST-7,62 Pieces per package 25 Net weight 2.22 g GTIN 4055626522548 Information that applies locally, see link on page 1 Country of origin 19 Information that applies locally, see link on page 1 Accessories Description Order No. Type Coding profile, for plugging into the coding ribs of the plug at a later date, insulating material, color: Red 1701967 CP-PC RD 3200603 AI 6 -18 YE CRIMPFOX CENTRUS 6S Stripping tool, for cables and conductors from 0.02 - 10 mm², self-adjus1212150 ting, stripping length of up to 18 mm, cutting capacity of up to 10 mm² stranded/1.5 mm² solid, replaceable stripping blade WIREFOX 10 © PHOENIX CONTACT 2019       Crimping pliers, for uninsulated and insulated ferrules, DIN 46228 Part 1 1213144 and 4, from 0.14 mm²  6 mm², also for TWIN ferrules up to 2 x 4 mm², automatic cross section adjustment, lateral insertion, equipped with fall protection REF 1716952 PHOENIX CONTACT 14 / 15 2019-03-15 Product version 00 1716954 LPCH 6/ 3+6-ST-7,62 20 Document revision 00 Combination tests LPCH 6/..-ST PCH 6/..-G IEC 61984 IEC 61984 Mechanical tests (A) Insertion/withdrawal force per position approx. 7 N / 4 N Polarization when inserted Requirement >20 N Test passed Contact holder in insert Requirements >20 N Test passed Durability tests (B) Contact resistance R1 0.42 mΩ Insertion/withdrawal cycles 25 Contact resistance R2 0.46 mΩ Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 7.3 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 3.31 kV Thermal tests (C) 4 Tested conductor cross section 6 mm²   Tested number of positions 41 A Upper limiting temperature Requirements < 100°C Test passed   Test current Climatic tests (D) -40 °C/2 h Test sequence 2: heat storage 100 °C/168 h Test sequence 3: noxious gas storage (ISO 6988) 0.2 dm3 SO2 on 300 dm3/ 40 °C/1 cycle Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 7.3 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 3.31 kV   Test sequence 1: low temperature storage Specification IEC 61984:2008-10 Degree of protection Back of hand safety with IP10 access probe REF 1716952 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com © PHOENIX CONTACT 2019 Environmental and endurance tests (E) PHOENIX CONTACT 15 / 15
