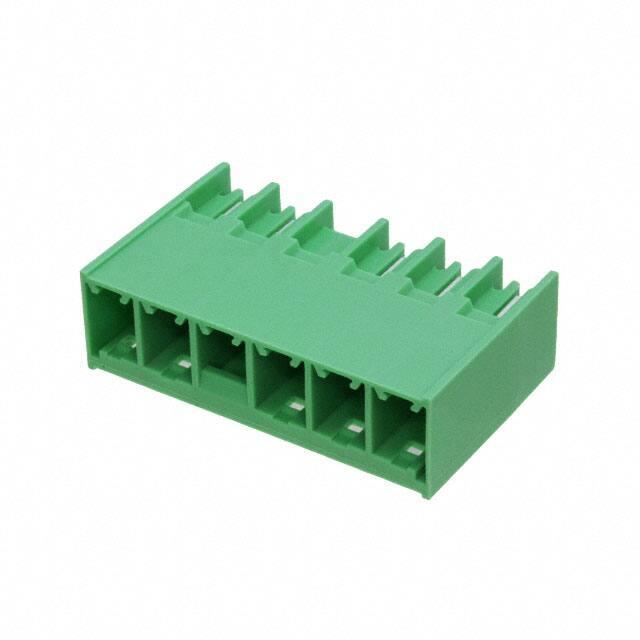

2019-03-15 Product version 01 Data sheet Document revision 00 Order No.: 1717036 Type: PC 6/ 5-GL3-7,62 PCB headers Figure shows a 4-pos. version with locking flange at position 3 No. of pos. Nominal cross section Color Pitch Mounting type 5 6 mm² black (9005) 7.62 mm Wave soldering     Nominal current Nominal voltage Connection direction Type of packaging 41 A 630 V 0°        Main features   1 Your advantages   Increased touch protection in the pin connector pattern for maximum safety even when not plugged in Easy PCB replacement thanks to plug-in modules Well-known mounting principle allows worldwide use Make sure you always use the latest documentation. It can be downloaded at: phoenixcontact.net/product/1717036 © PHOENIX CONTACT 2019 2 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 Document revision 00 Table of contents 1 Main features........................................................................................................................... 1 2 Your advantages ..................................................................................................................... 1 3 Table of contents ..................................................................................................................... 2 4 3D model in PDF can be activated (Acrobat Reader only)....................................................... 3 5 General Technical Data ........................................................................................................... 4 5.1 item properties .................................................................................................................... 4 6 Material properties................................................................................................................... 4 6.1 Material of metal parts........................................................................................................... 4 7 Dimensions.............................................................................................................................. 5 7.1 Dimensions for the product .................................................................................................... 5 8 Series drawing......................................................................................................................... 6 9 Application............................................................................................................................... 7 10 Packaging information ............................................................................................................. 7 10.1 Temperature limit values ....................................................................................................... 7 11 Mechanical tests...................................................................................................................... 8 12 Electrical tests ......................................................................................................................... 9 12.1 Electrical data ..................................................................................................................... 9 12.2 Air and creepage distances .................................................................................................... 9 13 Current carrying capacity/derating curves ............................................................................. 10 13.1 Vibration test .................................................................................................................... 10 14 Approvals .............................................................................................................................. 10 15 Commercial Data................................................................................................................... 11 16 corresponding plugs .............................................................................................................. 11 17 Accessories ........................................................................................................................... 11 18 Combination tests.................................................................................................................. 12 © PHOENIX CONTACT 2019       3 REF 1717025 PHOENIX CONTACT 2 / 12 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 3D model in PDF can be activated (Acrobat Reader only) © PHOENIX CONTACT 2019       4 Document revision 00 REF 1717025 PHOENIX CONTACT 3 / 12 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 5 General Technical Data 5.1 item properties Document revision 00 Order No. 1717036 Type PC 6/ 5-GL3-7,62 Plug-in system POWER COMBICON 6 Product type PCB headers Range of articles PC 6/..-GL Pitch 7.62 mm Range of positions 2...6 Number of positions 5 Number of levels 1 Number of connections 5 Number of potentials 5 Type of locking Snap-in locking Self-locking flange Mounting type Wave soldering Solder pins per potential 3 6 Material properties 6.1 Material of metal parts WEEE/RoHS-compliant, whisker-free acc. to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Nickel (1.3 - 3 µm Ni) , Tin (2 - 4 µm Sn) Soldering area surface Nickel (1.3 - 3 µm Ni) , Tin (3 - 5 µm Sn) Surface characteristics Tin-plated Housing PA GF Insulating material group I CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Color black (9005) © PHOENIX CONTACT 2019   Insulating material data Insulating material   Surface contact area   Note REF 1717025 PHOENIX CONTACT 4 / 12 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 7 Dimensions 7.1 Dimensions for the product Document revision 00 Length 28.2 mm Width 46.12 mm Height (without solder pin) 13.5 mm Total height 16.1 mm Solder pin [P] 2.6 mm © PHOENIX CONTACT 2019       Dimension a REF 1717025 PHOENIX CONTACT 5 / 12 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 Series drawing © PHOENIX CONTACT 2019       8 Document revision 00 REF 1717025 PHOENIX CONTACT 6 / 12 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 9 Application 10 Packaging information Pieces per package 10.1 Document revision 00 50 Temperature limit values -40 °C ... 70 °C Ambient temperature (assembly) -5 °C ... 100 °C Ambient temperature (operation) -40 °C (dependent on the derating curve) © PHOENIX CONTACT 2019       Ambient temperature (storage/transport) REF 1717025 PHOENIX CONTACT 7 / 12 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 11 Document revision 00 Mechanical tests Mechanical test group A Specification IEC 61984:2008-10 Visual examination Test passed Specification IEC 60512-1-1:2002-02 Dimensional test Test passed Specification IEC 60512-1-2:2002-02 Resistance of marking Test passed Specification IEC 60068-2-70:1995-12 Insertion and withdrawal force Test passed Specification IEC 60512-13-2:2006-02 No. of cycles 25 Insertion strength per pos. approx. 11 N Withdraw strength per pos. approx. 10 N Polarization and coding Test passed Specification IEC 60512-13-5:2006-02 Test force 20 N Contact retention in insert Test passed IEC 60512-15-1:2008-05 Test force per pos. 20 N © PHOENIX CONTACT 2019       Specification REF 1717025 PHOENIX CONTACT 8 / 12 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 12 Electrical tests 12.1 Electrical data Rated current / conductor cross section Document revision 00 41 A 6 mm² Rated insulation voltage (III/2) 630 V Rated surge voltage (III/2) 6 kV Contact resistance 0.5 mΩ Degree of pollution 2 12.2 Air and creepage distances Component Header Specification IEC 60664-1:2007-04 Mains type unearthed mains Insulating material group I CTI 600 Rated insulation voltage 630 V 630 V 1000 V Rated surge voltage 6 kV 6 kV 6 kV Degree of pollution 3 2 2 Overvoltage category III III II Minimum clearance case A (inhomogeneous field) 5.5 mm 5.5 mm 5.5 mm Minimum value of the creepage path requirement in acc. with table 8 mm 3.2 mm 5 mm © PHOENIX CONTACT 2019       Comparative tracking index (IEC 60112:2003-01) REF 1717025 PHOENIX CONTACT 9 / 12 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 13 Document revision 00 Current carrying capacity/derating curves Specification IEC 61984:2008-10 Note Representation based on IEC 60512-5-2:2002-02 Reduction factor 0.8 Number of positions See diagram Conductor cross section 6 mm² Current strength [A] Type: LPC 6/...-STL...-7,62 with PC 6/...-GL...-7,62 80 72 64 56 48 40 32 24 16 8 0

= ∑ 4 TΩ IEC 60068-2-6:2007-12 Test passed Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Acceleration 5 g (60.1 - 150 Hz)   Specification Result   Vibration test Test duration per axis 2.5 h Test directions X-, Y- and Z-axis Note The connected conductor loops were guided to the test sample at a distance of approx. 10 cm. 14   13.1 Approvals cULus Recognized  Use group F B C Voltage 600 V 300 V 300 V Current 35 A 35 A 35 A REF 1717025 © PHOENIX CONTACT 2019 mm²/AWG/kcmil PHOENIX CONTACT 10 / 12 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 15 Document revision 00 Commercial Data Order No. 1717036 Type PC 6/ 5-GL3-7,62 Pieces per package 50 Net weight 104 g GTIN 4055626529646 Information that applies locally, see link on page 1 Country of origin 16 Information that applies locally, see link on page 1 corresponding plugs Order No. Type 1716942 LPC 6/ 5-STL3-7,62 17 Accessories Order No. Type Coding profile, for plugging into the coding ribs of the plug at a later date, insulating material, color: Red 1701967 CP-PC RD © PHOENIX CONTACT 2019       Description REF 1717025 PHOENIX CONTACT 11 / 12 2019-03-15 Product version 01 1717036 PC 6/ 5-GL3-7,62 18 Document revision 00 Combination tests PC 6/..-GL LPC 6/..-STL2 IEC 61984 IEC 61984 Mechanical tests (A) Insertion/withdrawal force per position approx. 11 N / 10 N Polarization when inserted Requirement >20 N Test passed Contact holder in insert Requirements >20 N Test passed Durability tests (B) Contact resistance R1 0.5 mΩ Insertion/withdrawal cycles 25 Contact resistance R2 0.5 mΩ Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 7.3 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 3.31 kV Thermal tests (C) 4 Tested conductor cross section 6 mm²   Tested number of positions 41 A Upper limiting temperature Requirements < 100°C Test passed   Test current Climatic tests (D) -40 °C/2 h Test sequence 2: heat storage 100 °C/168 h Test sequence 3: noxious gas storage (ISO 6988) 0.2 dm3 SO2 on 300 dm3/ 40 °C/1 cycle Rated impulse voltage at sea level Voltage waveform ≥ (1.2/50 μs) 7.3 kV Power-frequency withstand voltage Voltage waveform ≥ (50/60 Hz) 3.31 kV   Test sequence 1: low temperature storage Specification IEC 61984:2008-10 Degree of protection Finger safety with IP20 test finger REF 1717025 PHOENIX CONTACT GmbH & Co. KG • 32823 Blomberg • Germany phoenixcontact.com © PHOENIX CONTACT 2019 Environmental and endurance tests (E) PHOENIX CONTACT 12 / 12
