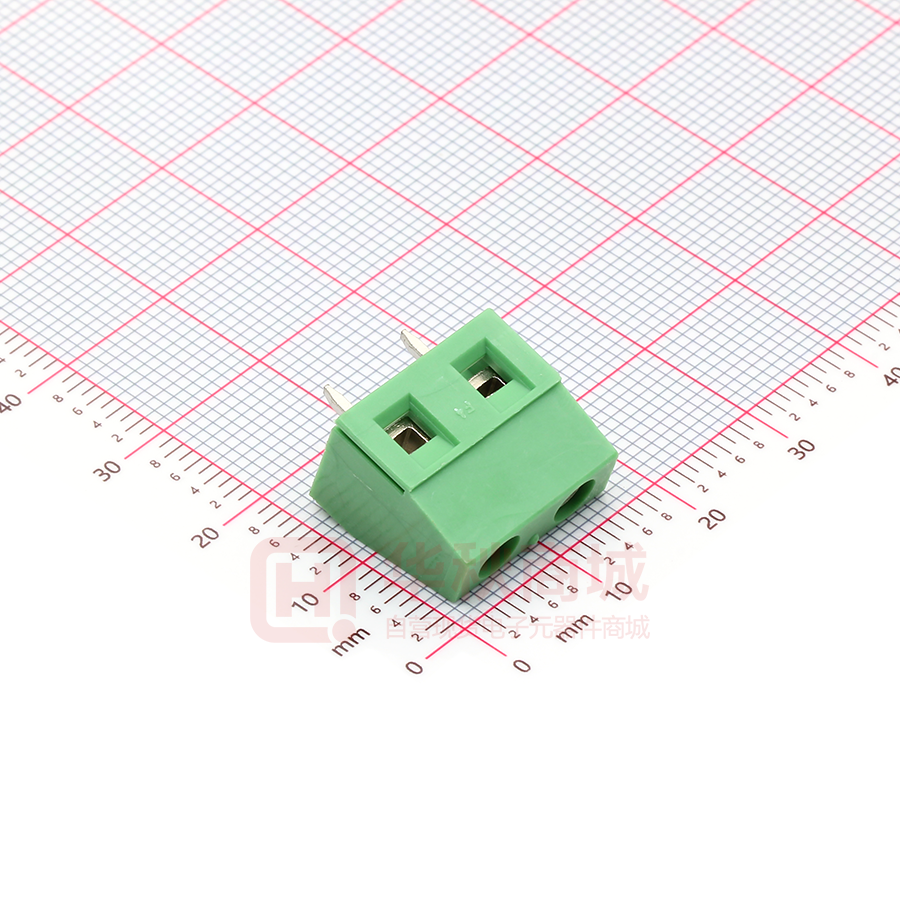

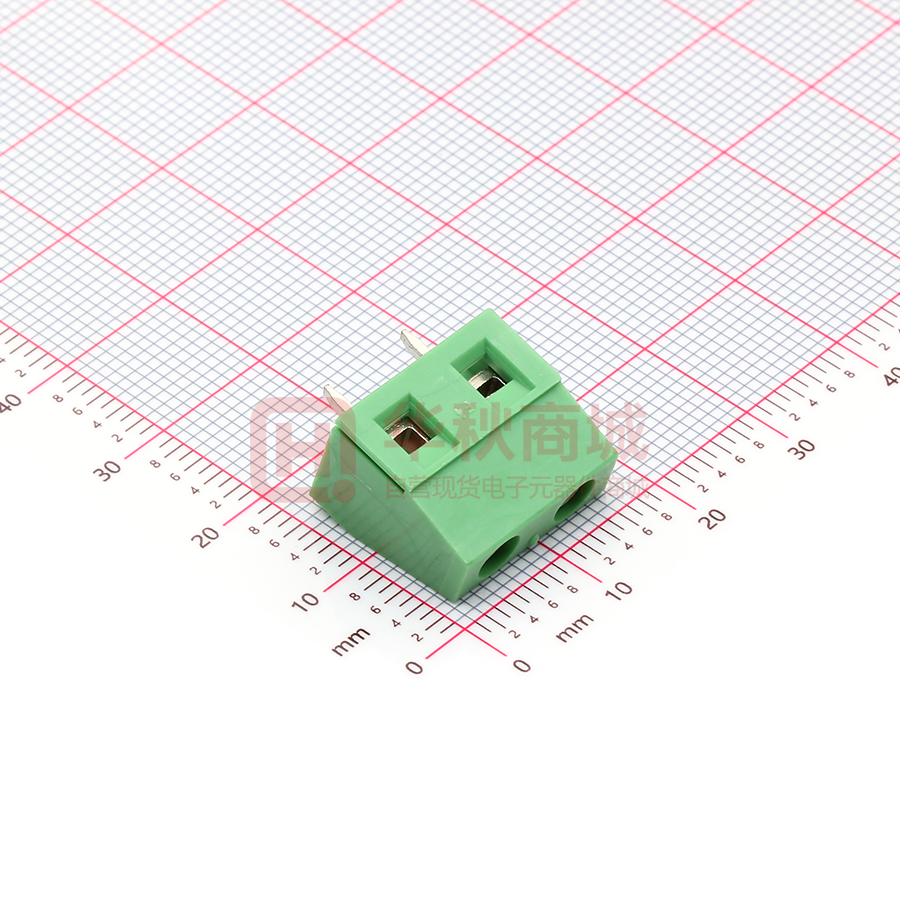

https://www.phoenixcontact.com/gb/products/1717729 PCB terminal block - GMKDS 1,5/ 2-7,62 - 1717729 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 630 V, Pitch: 7.62 mm, Number of positions: 2, Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions! Why buy this product  Well-known connection principle allows worldwide use  Low temperature rise, thanks to maximum contact force  Allows connection of two conductors  Larger pitch for increased voltage requirements  The latching on the side enables various numbers of positions to be combined Key Commercial Data Packing unit 250 STK GTIN GTIN 4017918024659 Weight per Piece (excluding packing) 3.090 g Custom tariff number 85369010 Country of origin Germany Technical data Dimensions Length 9.8 mm Pitch 7.62 mm Dimension a 7.62 mm Width 15.24 mm Constructional height 13.8 mm Height 17.4 mm Length of the solder pin 3.6 mm Pin dimensions 0,9 x 0,9 12/22/2016   Page 1 / 6 https://www.phoenixcontact.com/gb/products/1717729 PCB terminal block - GMKDS 1,5/ 2-7,62 - 1717729 Technical data Dimensions Hole diameter 1.3 mm General Range of articles GMKDS 1,5 Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 500 V Rated voltage (III/2) 630 V Rated voltage (II/2) 1000 V Connection in acc. with standard EN-VDE Nominal current IN 17.5 A Nominal cross section 1.5 mm² Maximum load current 17.5 A (with a 2.5 mm² conductor cross section) Insulating material PA Solder pin surface Sn Flammability rating according to UL 94 V0 Internal cylindrical gage A1 Stripping length 6.5 mm Number of positions 2 Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Connection data Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 1.5 mm² Conductor cross section flexible min. 0.14 mm² Conductor cross section flexible max. 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 1 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 1 mm² Conductor cross section AWG min. 26 Conductor cross section AWG max. 16 2 conductors with same cross section, solid min. 0.14 mm² 2 conductors with same cross section, solid max. 1 mm² 2 conductors with same cross section, stranded min. 0.14 mm² 2 conductors with same cross section, stranded max. 0.75 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 12/22/2016   Page 2 / 6 https://www.phoenixcontact.com/gb/products/1717729 PCB terminal block - GMKDS 1,5/ 2-7,62 - 1717729 Technical data Connection data 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 0.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. 0.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. 1 mm² Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings Drilling diagram Diagram Current carrying capacity [A] a 7,62 4,6 3,81 1,3 35 30 25 20 2 1,5 mm 15 10 5 0 0 20 40 60 80 100 Ambient temperature [°C] Type: GMKDS 1,5/2-7,62 and GMKDS 1,5/3-7,62 Tested according to DIN EN 60512-5-2:2003-01 Reduction factor = 1 Number of positions: 5 Dimensional drawing a+7,62 3,5 13,8 9,8 4,6 3,81 7,62 a 12/22/2016   Page 3 / 6 https://www.phoenixcontact.com/gb/products/1717729 PCB terminal block - GMKDS 1,5/ 2-7,62 - 1717729 Classifications eCl@ss eCl@ss 4.0 27141109 eCl@ss 4.1 27141109 eCl@ss 5.0 27141190 eCl@ss 5.1 27141190 eCl@ss 6.0 27261101 eCl@ss 7.0 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 ETIM 6.0 EC002643 UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals CSA / UL Recognized / SEV / cUL Recognized / CCA / EAC / DNV GL / cULus Recognized Ex Approvals Approval details CSA    http://www.csagroup.org/services/testingand-certification/certified-product-listing/   B D mm²/AWG/kcmil 28-14 28-14 Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V  13631 12/22/2016   Page 4 / 6 https://www.phoenixcontact.com/gb/products/1717729 PCB terminal block - GMKDS 1,5/ 2-7,62 - 1717729 Approvals UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B D mm²/AWG/kcmil 30-14 30-14 Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V SEV    https://www.electrosuisse.ch/en/meta/shop/product-certificates.html     mm²/AWG/kcmil 1.5 Nominal current IN 17.5 A Nominal voltage UN 500 V cUL Recognized   B D mm²/AWG/kcmil 30-14 30-14 Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V CCA   IK-3249    B.01742  https://www.dnvgl.com/  TAE00001EV  http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm     mm²/AWG/kcmil 1.5 Nominal voltage UN 500 V  DNV GL  cULus Recognized    FILE E 60425     EAC   IK-3248  http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm    FILE E 60425 Accessories Accessories Labeled terminal marker 12/22/2016   Page 5 / 6 https://www.phoenixcontact.com/gb/products/1717729 PCB terminal block - GMKDS 1,5/ 2-7,62 - 1717729 Accessories Marker card - SK 7,62/5:FORTL.ZAHLEN - 0804552 Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 100, Mounting type: Adhesive, for terminal block width: 7.62 mm, Lettering field: 7.62 x 5 mm     Marker pen Marker pen - B-STIFT - 1051993 Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm     Screwdriver tools Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 12/22/2016   Page 6 / 6
