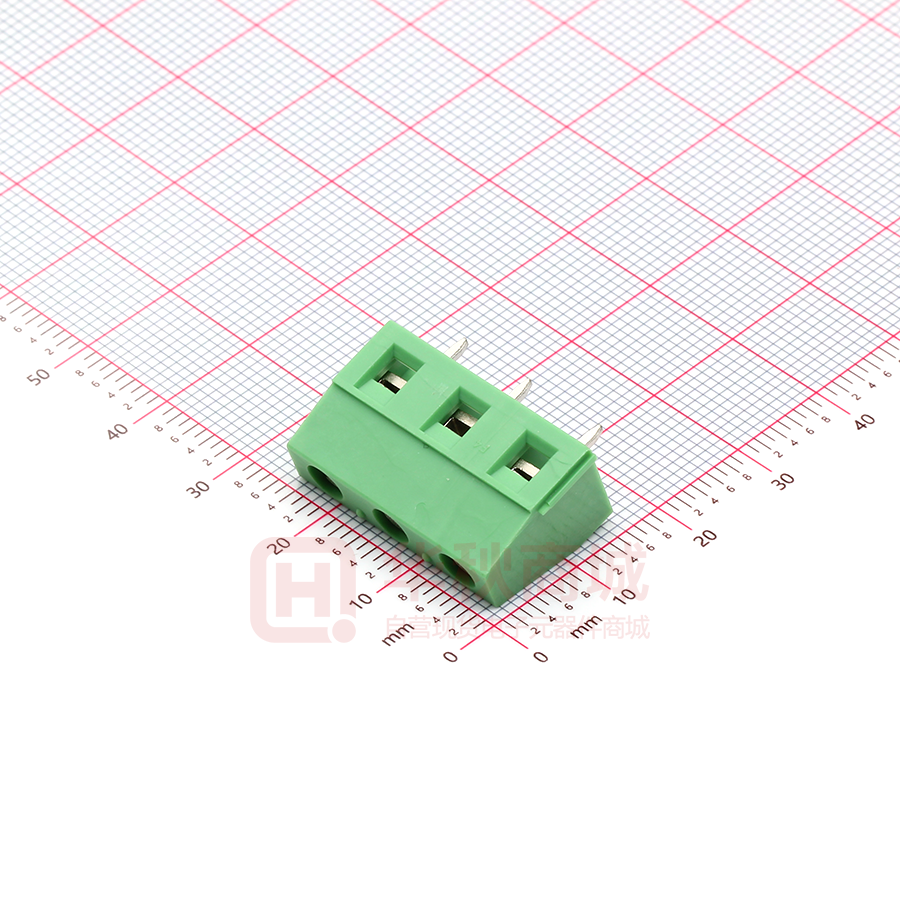

https://www.phoenixcontact.com/us/products/1717732 PCB terminal block - GMKDS 1,5/ 3-7,62 - 1717732 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, Nominal current: 17.5 A, Nom. voltage: 630 V, Pitch: 7.62 mm, Number of positions: 3, Connection method: Screw connection with tension sleeve, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions! The illustration shows an 10-position version Product Features ■ ■ Single-row PCB terminal blocks for 630 V applications with 7.62 mm pitch Can be consistently connected in series with the corresponding standard models of the MKDS 1,5 range Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 5.05 g Custom tariff number 85369010 Country of origin Germany Technical data Dimensions Length 9.8 mm Pitch 7.62 mm Dimension a 15.24 mm Constructional height 14 mm Length of the solder pin 3.5 mm Pin dimensions 0,9 x 0,9 mm Hole diameter 1.3 mm 03/15/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1717732 PCB terminal block - GMKDS 1,5/ 3-7,62 - 1717732 Technical data General Range of articles GMKDS 1,5 Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 500 V Rated voltage (III/2) 630 V Rated voltage (II/2) 1000 V Connection in acc. with standard EN-VDE Nominal current IN 17.5 A Nominal cross section 1.5 mm² Maximum load current 17.5 A (with a 2.5 mm² conductor cross section) Insulating material PA Solder pin surface Sn Flammability rating according to UL 94 V0 Internal cylindrical gage A1 Stripping length 6.5 mm Number of positions 3 Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Connection data Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 1.5 mm² Conductor cross section flexible min. 0.14 mm² Conductor cross section flexible max. 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 1 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 1 mm² Conductor cross section AWG min. 26 Conductor cross section AWG max. 16 2 conductors with same cross section, solid min. 0.14 mm² 2 conductors with same cross section, solid max. 1 mm² 2 conductors with same cross section, stranded min. 0.14 mm² 2 conductors with same cross section, stranded max. 0.75 mm² 03/15/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1717732 PCB terminal block - GMKDS 1,5/ 3-7,62 - 1717732 Technical data Connection data 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 0.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 1 mm² sleeve, max. Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 27141109 eCl@ss 4.1 27141109 eCl@ss 5.0 27141190 eCl@ss 5.1 27141190 eCl@ss 6.0 27261101 eCl@ss 7.0 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 03/15/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1717732 PCB terminal block - GMKDS 1,5/ 3-7,62 - 1717732 Approvals Approvals Approvals CSA / UL Recognized / SEV / cUL Recognized / GL / CCA / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B D mm²/AWG/kcmil 28-14 28-14 Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V   B D mm²/AWG/kcmil 30-14 30-14 Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V UL Recognized  SEV      mm²/AWG/kcmil 1.5 Nominal voltage UN 500 V 03/15/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1717732 PCB terminal block - GMKDS 1,5/ 3-7,62 - 1717732 Approvals cUL Recognized    B D mm²/AWG/kcmil 30-14 30-14 Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V GL  CCA      mm²/AWG/kcmil 1.5 Nominal voltage UN 500 V EAC  cULus Recognized  Drawings Drilling diagram Dimensional drawing a a+7,62 9,8 7,62 3,5 4,6 13,8 3,81 1,3 4,6 3,81 7,62 a Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/15/2016   Page 5 / 5
