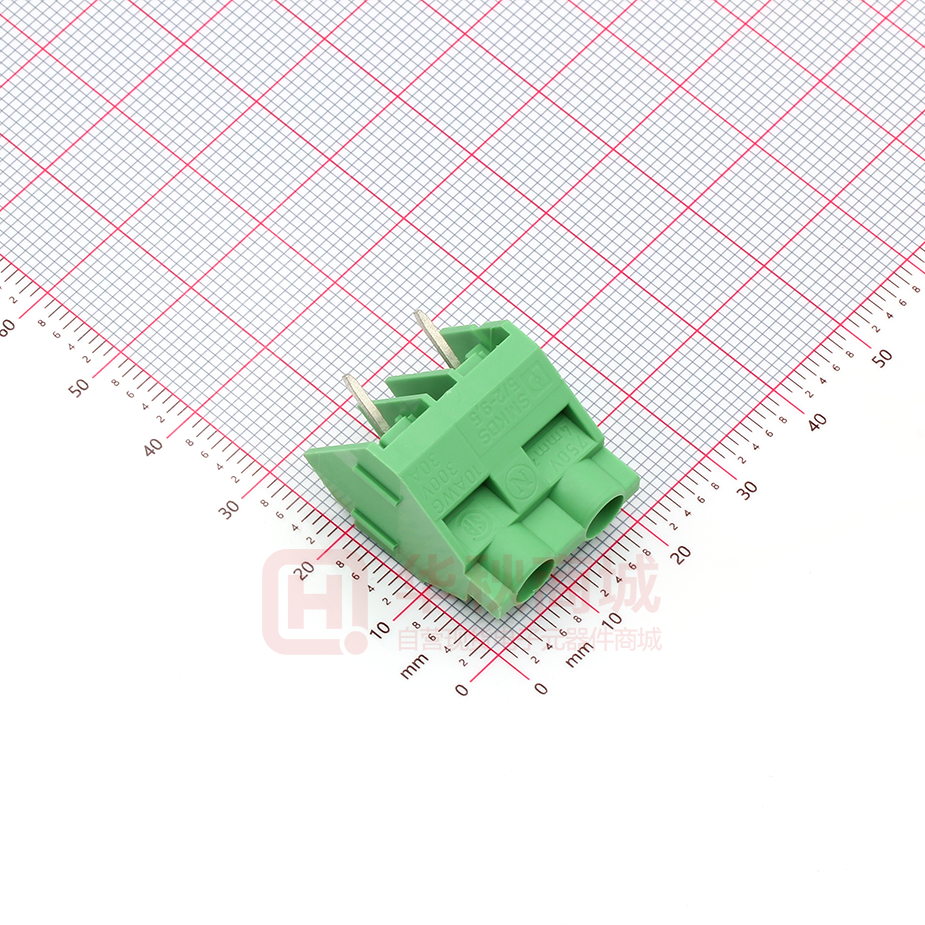

SMKDS 5/ 2-9,5
Order No.: 1720017
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1720017
PC terminal block, Nominal current: 32 A, Nom. voltage: 690 V,
Pitch: 9.52 mm, Number of positions: 2, Type of connection: Screw
connection, Assembly: Soldering, Conductor/PCB connection
direction: 35 °, The article can be aligned to create different nos. of
positions!
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Commercial data
EAN
4017918024970
Pack
50 pcs.
Customs tariff
85369010
Weight/Piece
0.006645 KG
Catalog page information
Page 319 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Pitch
9.52 mm
Dimension a
9.52 mm
Number of positions
2
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 5
Feb 24, 2010
SMKDS 5/ 2-9,5 Order No.: 1720017
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1720017
Pin dimensions
0,9 x 0,9 mm
Hole diameter
1.3 mm
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Technical data
Insulating material group
I
Rated surge voltage (III/3)
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/2)
1000 V
Rated voltage (II/2)
1000 V
Connection in acc. with standard
EN-VDE
Nominal current IN
32 A
Nominal voltage UN
690 V
Nominal cross section
4 mm²
Maximum load current
32 A (with 6 mm conductor cross section)
Insulating material
PA
Inflammability class acc. to UL 94
V2
Internal cylindrical gage
A4
Stripping length
8 mm
2
Connection data
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
6 mm²
Conductor cross section stranded min.
0.2 mm²
Conductor cross section stranded max.
4 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve max.
4 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve max.
4 mm²
Conductor cross section AWG/kcmil min.
24
Conductor cross section AWG/kcmil max
10
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 5
Feb 24, 2010
SMKDS 5/ 2-9,5 Order No.: 1720017
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1720017
2 conductors with same cross section, solid min.
0.2 mm²
2 conductors with same cross section, solid max.
1.5 mm²
2 conductors with same cross section, stranded
min.
0.2 mm²
2 conductors with same cross section, stranded
max.
1.5 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
0.25 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
0.75 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
0.5 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2.5 mm²
Certificates / Approvals
Certification
CCA, CSA, CUL, GOST, SEV, UL
CSA
Nominal voltage UN
300 V
Nominal current IN
30 A
AWG/kcmil
28-10
CUL
Nominal voltage UN
300 V
Nominal current IN
30 A
AWG/kcmil
30-10
UL
Nominal voltage UN
300 V
Nominal current IN
30 A
AWG/kcmil
30-10
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 5
Feb 24, 2010
SMKDS 5/ 2-9,5 Order No.: 1720017
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1720017
Accessories
Item
Designation
Description
SZS 0,6X3,5
Screwdriver, bladed, matches all screw terminal blocks up to 4.0
mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE
approval
Tools
1205053
Diagrams/Drawings
Drilling plan/solder pad geometry
Dimensioned drawing
