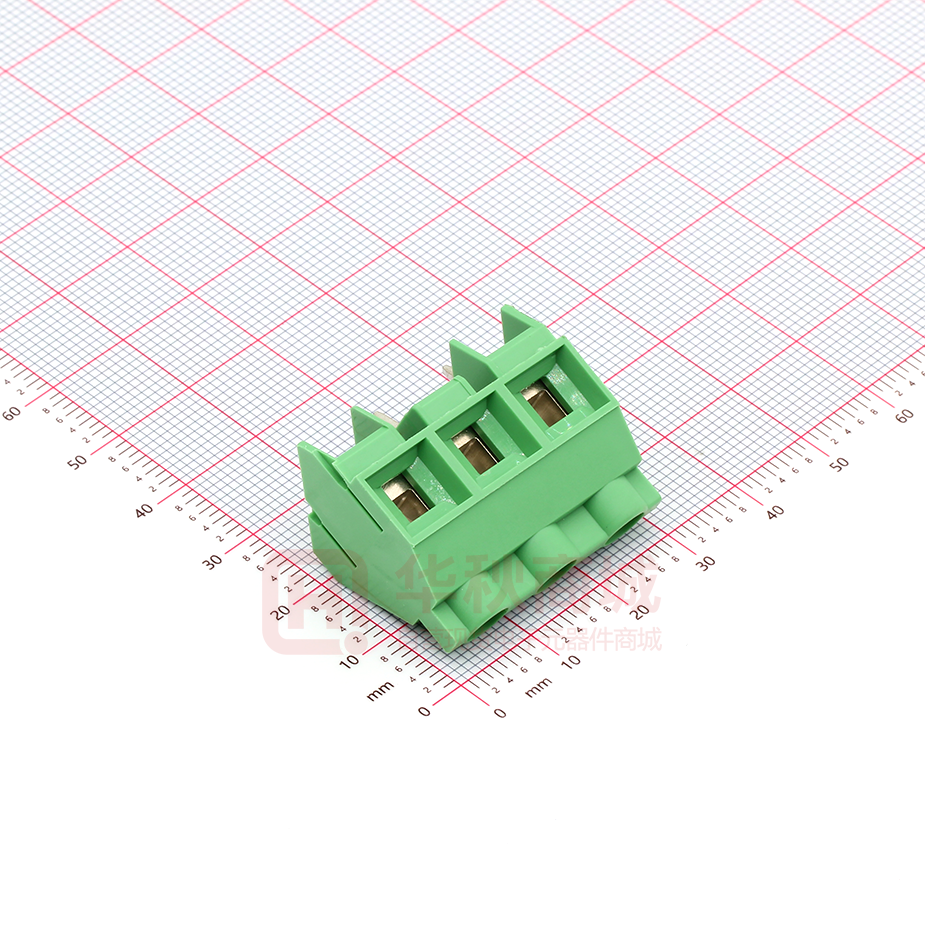

PCB terminal block - SMKDS 5/ 3-9,5 - 1720020
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
PCB terminal block, Nominal current: 32 A, Nom. voltage: 1000 V, Pitch: 9.52 mm, Number of positions: 3,
Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 35 °, Color:
green, The article can be aligned to create different nos. of positions!
Product Features
Conductor connection direction angled to the PCB (35°)
PCB terminal blocks with screw connection, up to 6 mm² conductor cross section
Key commercial data
Packing unit
1 pc
GTIN
Weight per Piece (excluding packing)
9.67 GRM
Custom tariff number
85369010
Country of origin
Poland
Technical data
Dimensions
Length
18.5 mm
Pitch
9.52 mm
Dimension a
19.04 mm
Pin dimensions
0,9 x 0,9 mm
Hole diameter
1.3 mm
General
Range of articles
SMKDS 5
Insulating material group
I
Rated surge voltage (III/3)
6 kV
2/16/14 Page 1 / 5
https://www.phoenixcontact.com/us/products/1720020
PCB terminal block - SMKDS 5/ 3-9,5 - 1720020
Technical data
General
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/3)
690 V
Rated voltage (III/2)
1000 V
Rated voltage (II/2)
1000 V
Connection in acc. with standard
EN-VDE
Nominal current IN
32 A
Nominal cross section
4 mm²
Maximum load current
32 A
Insulating material
PA
Solder pin surface
Sn
Inflammability class according to UL 94
V2
Internal cylindrical gage
A4
Stripping length
8 mm
Number of positions
3
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Connection data
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
6 mm²
Conductor cross section stranded min.
0.2 mm²
Conductor cross section stranded max.
4 mm²
Conductor cross section stranded, with ferrule without plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule without plastic sleeve max.
4 mm²
Conductor cross section stranded, with ferrule with plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule with plastic sleeve max.
4 mm²
Conductor cross section AWG/kcmil min.
24
Conductor cross section AWG/kcmil max
10
2 conductors with same cross section, solid min.
0.2 mm²
2 conductors with same cross section, solid max.
1.5 mm²
2 conductors with same cross section, stranded min.
0.2 mm²
2 conductors with same cross section, stranded max.
1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.75 mm²
2/16/14 Page 2 / 5
https://www.phoenixcontact.com/us/products/1720020
PCB terminal block - SMKDS 5/ 3-9,5 - 1720020
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
2.5 mm²
sleeve, max.
Minimum AWG according to UL/CUL
30
Maximum AWG according to UL/CUL
10
Classifications
eCl@ss
eCl@ss 4.0
27141109
eCl@ss 4.1
27141109
eCl@ss 5.0
27141190
eCl@ss 5.1
27141190
eCl@ss 6.0
27261101
eCl@ss 7.0
27440401
eCl@ss 8.0
27440401
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002643
ETIM 5.0
EC002643
UNSPSC
UNSPSC 6.01
30211801
UNSPSC 7.0901
39121432
UNSPSC 11
39121432
UNSPSC 12.01
39121432
UNSPSC 13.2
39121432
Approvals
Approvals
Approvals
CSA / UL Recognized / SEV / cUL Recognized / GOST / CCA / GOST / cULus Recognized
Ex Approvals
2/16/14 Page 3 / 5
https://www.phoenixcontact.com/us/products/1720020
PCB terminal block - SMKDS 5/ 3-9,5 - 1720020
Approvals
Approvals submitted
Approval details
CSA
B
C
mm²/AWG/kcmil
28-10
28-10
Nominal current IN
30 A
30 A
Nominal voltage UN
300 V
300 V
B
C
mm²/AWG/kcmil
30-10
30-10
Nominal current IN
30 A
30 A
Nominal voltage UN
250 V
300 V
UL Recognized
SEV
mm²/AWG/kcmil
6
Nominal voltage UN
690 V
cUL Recognized
B
C
mm²/AWG/kcmil
30-10
30-10
Nominal current IN
30 A
30 A
Nominal voltage UN
250 V
300 V
GOST
2/16/14 Page 4 / 5
https://www.phoenixcontact.com/us/products/1720020
PCB terminal block - SMKDS 5/ 3-9,5 - 1720020
Approvals
CCA
mm²/AWG/kcmil
6
Nominal voltage UN
690 V
GOST
cULus Recognized
Accessories
Accessories
Screwdriver tools
Screwdriver - SZS 0,6X3,5 - 1205053
Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm,
2-component grip, with non-slip grip
Drawings
Drilling diagram
Dimensioned drawing
a
18,5
21,5
5
7,5
a+9,52
4,76
1,3
9,52
7,5
4,76
9,52
a
