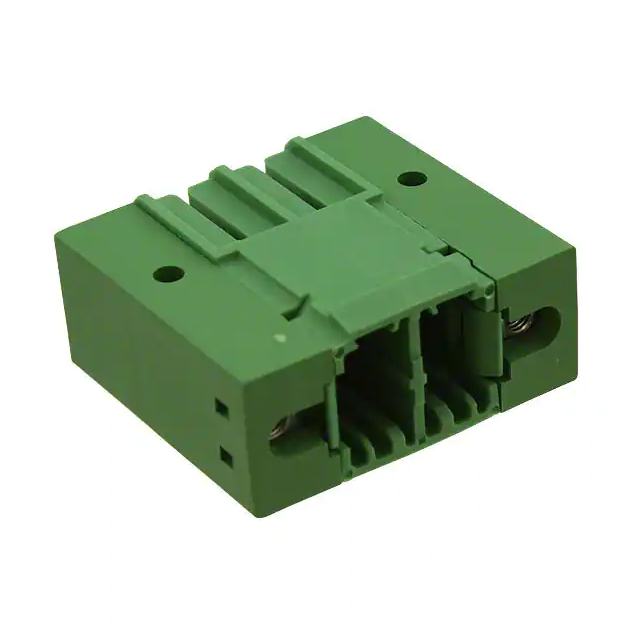

1720796

1720796

  • 厂商:

    PHOENIX(菲尼克斯)

  • 封装:

    TERMINAL_31.34X29.25MM_TM

  • 描述:

    插拔式接线端子 间距7.62mm 1x2Pin 弯插

  • 数据手册
  • 价格&库存
1720796 数据手册
https://www.phoenixcontact.com/us/produkte/1720796 Electronic housing - PC 5/ 2-GF-7,62 - 1720796 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Header, Nominal current: 41 A, Rated voltage (III/2): 630 V, Number of positions: 2, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Assembly: Soldering The figure shows a 5-pos. version of the product Why buy this product  PCB-SHIELD shroud for a professional EMC shield connection  Vibration-resistant connection by means of threaded flange (-GF; also for screw connection in the device)  PC 5 headers for use in combination with PC 5 plugs  Compatible with the Click and Lock system  CP-PC RD keying profiles as protection against mismatching   Key commercial data Packing unit 0 Minimum order quantity 1 Catalog page Page 443 (CC-2011) GTIN Custom tariff number 85366990 Country of origin GERMANY Technical data Dimensions / positions Length 29.25 mm Pitch 7.62 mm Dimension a 7.62 mm Number of positions 2 Pin dimensions 0,8 x 1,0 Pin spacing 7.62 mm Hole diameter 1.3 mm Technical data Range of articles PC 5/..-GF 11.10.2012   Page 1 / 4 https://www.phoenixcontact.com/us/produkte/1720796 Electronic housing - PC 5/ 2-GF-7,62 - 1720796 Technical data Technical data Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/2) 630 V Rated voltage (II/2) 1000 V Connection in acc. with standard EN-VDE Nominal current IN 41 A Nominal voltage UN 630 V Maximum load current 41 A Insulating material PA Inflammability class according to UL 94 V0 Color green Nominal voltage, UL/CUL Use Group B 300 V Nominal current, UL/CUL Use Group B 41 A Nominal voltage, UL/CUL Use Group C 150 V Nominal current, UL/CUL Use Group C 41 A Nominal voltage, UL/CUL Use Group D 300 V Nominal current, UL/CUL Use Group D 10 A Classifications eclass eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 etim ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 unspsc UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 11.10.2012   Page 2 / 4 https://www.phoenixcontact.com/us/produkte/1720796 Electronic housing - PC 5/ 2-GF-7,62 - 1720796 Approvals Approvals Approvals UL Recognized / cUL Recognized / GOST / cULus Recognized Ex Approvals Approvals submitted Approval details UL Recognized    B C D Nominal current IN 41 A 41 A 10 A Nominal voltage UN 300 V 150 V 300 V   B C D Nominal current IN 41 A 41 A 10 A Nominal voltage UN 300 V 150 V 300 V cUL Recognized  GOST  cULus Recognized  Drawings 11.10.2012   Page 3 / 4 https://www.phoenixcontact.com/us/produkte/1720796 Electronic housing - PC 5/ 2-GF-7,62 - 1720796 Drilling diagram Dimensioned drawing 11,86 a 7,62 a+23,72 5 12,25 13,54 14,29 1,83 29,25 5,08 7,62 8,06 1,83 5,08 3,2 1,3 7,62 7,62 a © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 11.10.2012   Page 4 / 4
