Printed-circuit board connector - FKCN 2,5/11-ST - 1732833
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB connector, nominal current: 12 A, number of positions: 11, pitch: 5 mm, connection method: Push-in spring
connection, color: green, contact surface: Tin

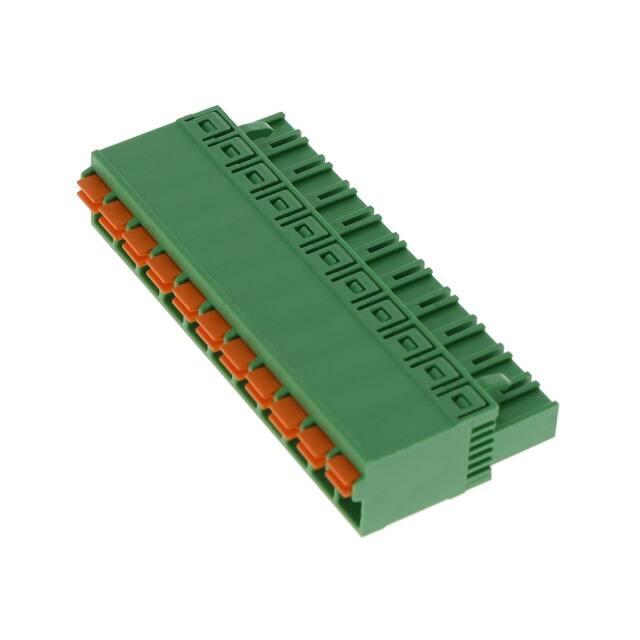

The figure shows a 10-position
version of the product
Your advantages
Time saving push-in connection, tools not required
Intuitive use through colour coded actuation lever
Extremely small design for the respective conductor cross section
Quick and convenient testing using integrated test option
Can be combined with the MSTB 2,5 range
Key Commercial Data
Packing unit
1 pc
Minimum order quantity
50 pc
GTIN
GTIN
4046356163828
Weight per Piece (excluding packing)
12.000 g
Custom tariff number
85366990
Country of origin
Bulgaria
Technical data
Dimensions
Length [ l ]
27.1 mm
Width [ w ]
55 mm
Height [ h ]
10.9 mm
08/28/2019 Page 1 / 4
https://www.phoenixcontact.com/us/products/1732833
Printed-circuit board connector - FKCN 2,5/11-ST - 1732833
Technical data
Dimensions
Pitch
5 mm
Dimension a
50 mm
General
Range of articles
FKCN 2,5/..-ST
Number of positions
11
Connection method
Push-in spring connection
Insulating material group
I
Rated surge voltage (III/3)
4 kV
Rated surge voltage (III/2)
4 kV
Rated surge voltage (II/2)
4 kV
Rated voltage (III/3)
320 V
Rated voltage (III/2)
320 V
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
12 A
Nominal cross section
2.5 mm²
Maximum load current
12 A
Insulating material
PBT
Flammability rating according to UL 94
V0
Stripping length
10 mm
Connection data
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
1.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.
1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.
1.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
16
Standards and Regulations
Connection in acc. with standard
EN-VDE
Flammability rating according to UL 94
V0
Environmental Product Compliance
08/28/2019 Page 2 / 4
https://www.phoenixcontact.com/us/products/1732833
Printed-circuit board connector - FKCN 2,5/11-ST - 1732833
Technical data
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
27260700
eCl@ss 4.1
27260700
eCl@ss 5.0
27260700
eCl@ss 5.1
27260700
eCl@ss 6.0
27260700
eCl@ss 7.0
27440309
eCl@ss 8.0
27440309
eCl@ss 9.0
27440309
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002638
ETIM 5.0
EC002638
ETIM 6.0
EC002638
ETIM 7.0
EC002638
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC
Ex Approvals
08/28/2019 Page 3 / 4
https://www.phoenixcontact.com/us/products/1732833
Printed-circuit board connector - FKCN 2,5/11-ST - 1732833
Approvals
Approval details
IECEE CB Scheme
http://www.iecee.org/
Nominal voltage UN
400 V
Nominal current IN
12 A
mm²/AWG/kcmil
0.2-2.5
VDE Gutachten mit
Fertigungsüberwachung
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
Nominal voltage UN
400 V
Nominal current IN
12 A
mm²/AWG/kcmil
0.2-2.5
EAC
DE1-58427
40041908
B.01742
