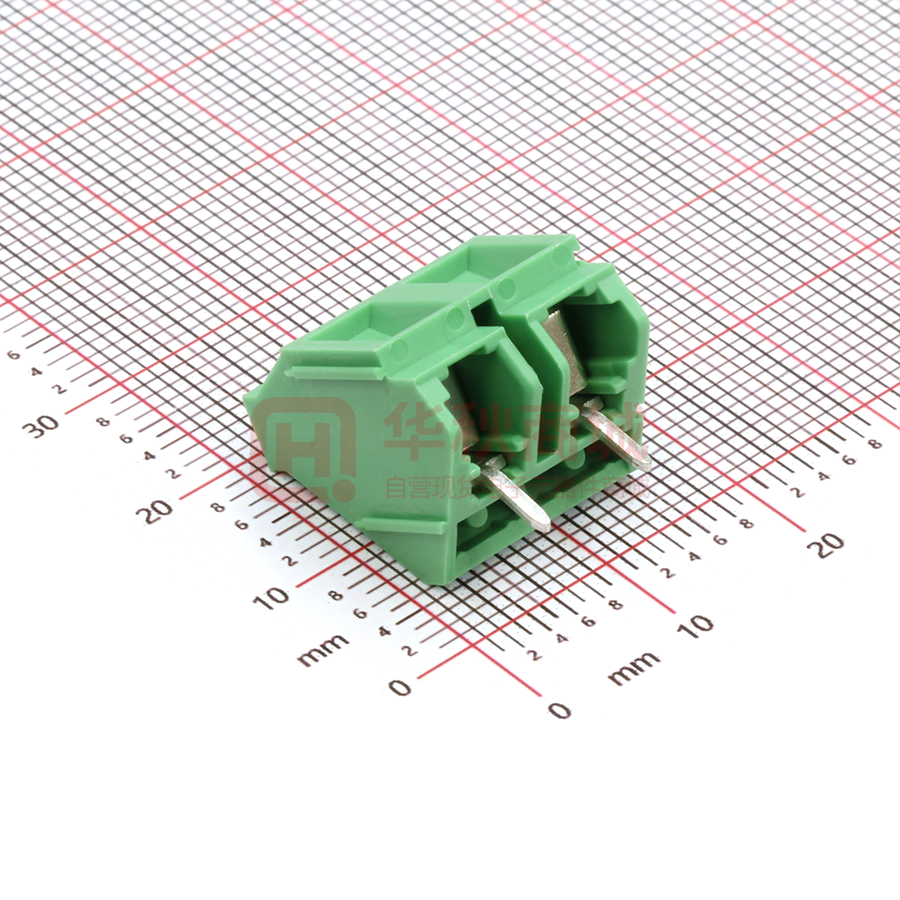

https://www.phoenixcontact.com/us/produkte/1733729 PCB terminal block - GSMKDS 3/ 2-7,62 - 1733729 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) PC terminal block, Nominal current: 24 A, Nom. voltage: 630 V, Pitch: 7.62 mm, Number of positions: 2, Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 35 °, Color: green, The article can be aligned to create different nos. of positions! Why buy this product  Conductor and screwdriver axis at an angle of 35° to the usual direction  Can be consistently connected in series with the corresponding standard models of the MKDS 3 range  Arrangement of several rows of terminal blocks one behind the other – multi-level effect with the same design height  Single-row PCB terminal blocks for 630 V applications with 7.62 mm pitch   Key commercial data Packing unit 1 Minimum order quantity 50 Catalog page Page 115 (CC-2011) GTIN Custom tariff number 85369010 Country of origin GERMANY Technical data Dimensions / positions Length 16 mm Pitch 7.62 mm Number of positions 2 Pin dimensions 0,9 x 0,9 mm Hole diameter 1.3 mm Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Technical data Range of articles GSMKDS 3 Insulating material group II 19.10.2012   Page 1 / 5 https://www.phoenixcontact.com/us/produkte/1733729 PCB terminal block - GSMKDS 3/ 2-7,62 - 1733729 Technical data Technical data Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 500 V Rated voltage (III/2) 630 V Rated voltage (II/2) 1000 V Connection in acc. with standard EN-VDE Nominal current IN 24 A Nominal cross section 2.5 mm² Maximum load current 30 A (with 4 mm² conductor cross section) Insulating material PA Inflammability class according to UL 94 V0 Internal cylindrical gage A3 Stripping length 8 mm Nominal voltage, UL/CUL Use Group B 250 V Nominal current, UL/CUL Use Group B 15 A Nominal voltage, UL/CUL Use Group D 300 V Nominal current, UL/CUL Use Group D 10 A Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 4 mm² Conductor cross section stranded min. 0.2 mm² Conductor cross section stranded max. 2.5 mm² Conductor cross section stranded, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section stranded, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule with plastic sleeve max. 2.5 mm² Conductor cross section AWG/kcmil min. 24 Conductor cross section AWG/kcmil max 12 2 conductors with same cross section, solid min. 0.2 mm² 2 conductors with same cross section, solid max. 1.5 mm² 2 conductors with same cross section, stranded min. 0.2 mm² 2 conductors with same cross section, stranded max. 1.5 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 0.75 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. 0.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. 1.5 mm² 19.10.2012   Page 2 / 5 https://www.phoenixcontact.com/us/produkte/1733729 PCB terminal block - GSMKDS 3/ 2-7,62 - 1733729 Technical data Connection data Minimum AWG according to UL/CUL 30 Maximum AWG according to UL/CUL 12 Classifications eclass eCl@ss 4.0 27141109 eCl@ss 4.1 27141109 eCl@ss 5.0 27141190 eCl@ss 5.1 27141190 eCl@ss 6.0 27261101 eCl@ss 7.0 27440401 etim ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 unspsc UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals CSA / UL Recognized / SEV / cUL Recognized / GOST / CCA / GOST / cULus Recognized Ex Approvals Approvals submitted Approval details 19.10.2012   Page 3 / 5 https://www.phoenixcontact.com/us/produkte/1733729 PCB terminal block - GSMKDS 3/ 2-7,62 - 1733729 Approvals CSA    B D mm²/AWG/kcmil 28-12 28-12 Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V   B D mm²/AWG/kcmil 30-12 30-12 Nominal current IN 15 A 10 A Nominal voltage UN 250 V 300 V UL Recognized  SEV      mm²/AWG/kcmil 4 Nominal voltage UN 500 V cUL Recognized    B D mm²/AWG/kcmil 30-12 30-12 Nominal current IN 15 A 10 A Nominal voltage UN 250 V 300 V GOST  CCA      mm²/AWG/kcmil 4 Nominal voltage UN 500 V GOST  19.10.2012   Page 4 / 5 https://www.phoenixcontact.com/us/produkte/1733729 PCB terminal block - GSMKDS 3/ 2-7,62 - 1733729 Approvals cULus Recognized  Accessories Accessories Marking Marker cards - SK 7,62/5:FORTL.ZAHLEN - 0804552 Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 100, Mounting type: Adhesive, For terminal block width: 7.62 mm     Tools Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Drawings Drilling diagram Dimensioned drawing a a+7,62 16 7,62 4,5 7,5 18 3,81 1,3 7,5 3,81 7,62 a © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 19.10.2012   Page 5 / 5
