MSTB 2,5/12-G
Order No.: 1754630

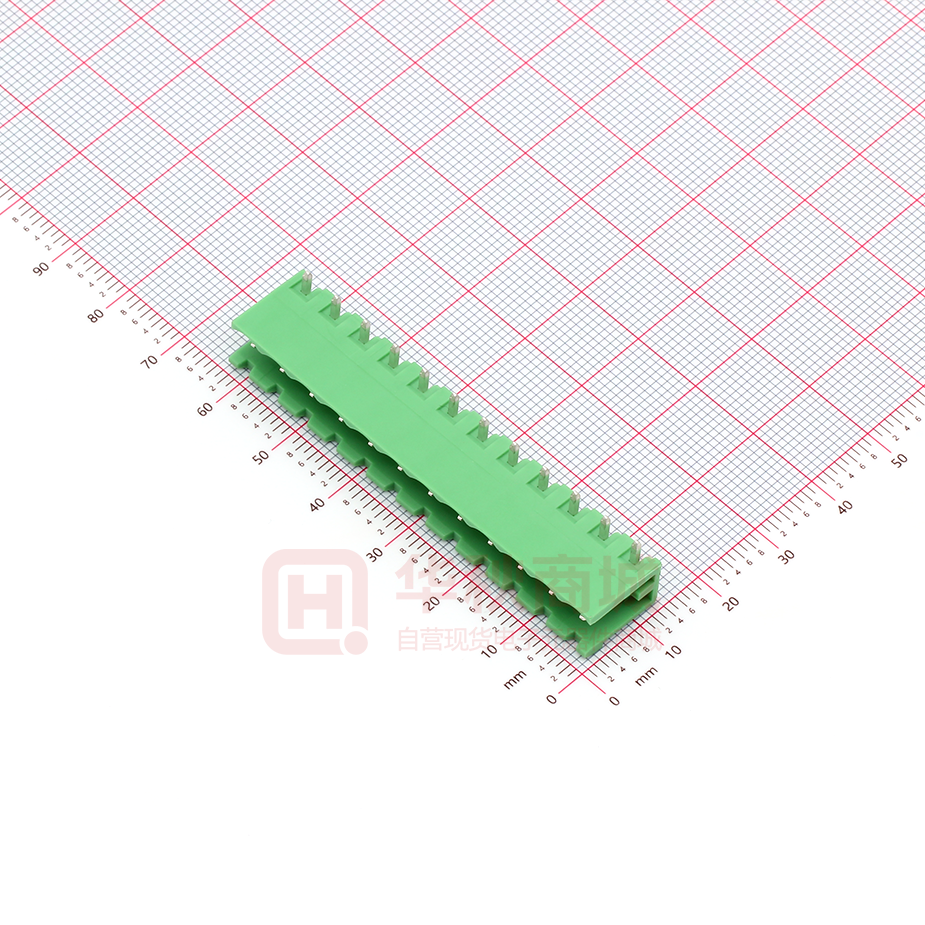

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1754630
Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5 mm,
Number of positions: 12, Color: green, Assembly: Soldering
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Commercial data
EAN
4017918028800
Pack
50 pcs.
Customs tariff
85366990
Weight/Piece
0.00519 KG
Catalog page information
Page 248 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Pitch
5 mm
Dimension a
55 mm
Number of positions
12
Pin dimensions
1 x 1 mm
Hole diameter
1.4 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 24, 2010
MSTB 2,5/12-G Order No.: 1754630
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1754630
Technical data
Insulating material group
IIIa
Rated surge voltage (III/3)
4 kV
Rated surge voltage (III/2)
4 kV
Rated surge voltage (II/2)
4 kV
Rated voltage (III/2)
320 V
Rated voltage (II/2)
400 V
Connection in acc. with standard
EN-VDE
Nominal current IN
12 A
Nominal voltage UN
250 V
Maximum load current
12 A
Insulating material
PBT
Inflammability class acc. to UL 94
V0
Certificates / Approvals
Certification
CB, CSA, CUL, GOST, UL, VDE-PZI
CSA
Nominal voltage UN
300 V
Nominal current IN
10 A
CUL
Nominal voltage UN
300 V
Nominal current IN
10 A
UL
Nominal voltage UN
300 V
Nominal current IN
10 A
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 24, 2010
MSTB 2,5/12-G Order No.: 1754630
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1754630
Accessories
Item
Designation
Description
1759981
MSTB-BF
Mounting flange, for fixing both ends of the header onto the PCB,
green insulating material, with M 2 x 14 screws and nuts.
1755477
MSTB-BL
Keying cap, for forming sections, plugs onto header pin, green
insulating material
SK 5/3,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 12 identical
decades marked 1-10, 11-20 etc. up to 91-(99)100, sufficient for
120 terminal blocks
CR-MSTB
Coding section, inserted into the recess in the header or the
inverted plug, red insulating material
Assembly
Marking
0804183
Plug/Adapter
1734401
Additional products
Item
Designation
Description
FKCT 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Springcage conn., Color: green
1910458
FKC 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Springcage conn., Color: green
1909812
FKCVR 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Springcage conn.
1910131
FKCVW 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Springcage conn.
1779518
FRONT-MSTB 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Screw
connection, Color: green
1754643
MSTB 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Screw
connection, Color: green
Assembly
1909317
General
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 24, 2010
MSTB 2,5/12-G Order No.: 1754630
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1754630
1759350
MSTB 2,5/12-STZ
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Screw
connection, Color: green
1765878
MSTBP 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Screw
connection, Color: green
1779932
MSTBT 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Screw
connection, Color: green
1792113
MVSTBR 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Screw
connection, Color: green
1792621
MVSTBW 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Screw
connection, Color: green
1768859
SMSTB 2,5/12-ST
Plug component, Nominal current: 12 A, Nom. voltage: 250 V,
Pitch: 5 mm, Number of positions: 12, Connection type: Screw
connection, Color: green
Diagrams/Drawings
Drilling plan/solder pad geometry
