1755833

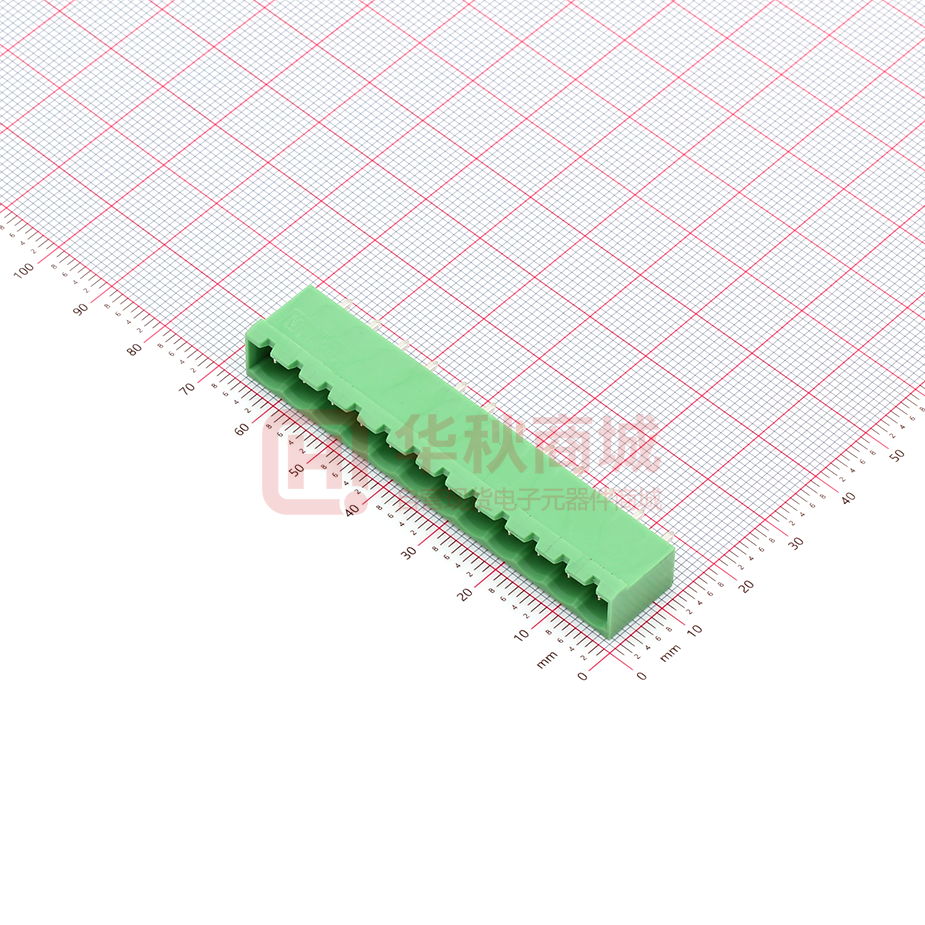

https://www.phoenixcontact.com/us/products/1755833 Base strip - MSTBVA 2,5/12-G-5,08 - 1755833 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 12, Pitch: 5.08 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering The figure shows a 10-position version of the product Product Features ■ ■ ■ ■ Versions with and without side panel Other pin lengths available on request Plug-in direction parallel and vertical to the PCB Standard pin strip for 320 V (III/2) Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 4.8 g Custom tariff number 85366990 Country of origin China Technical data Dimensions Length 8.6 mm Pitch 5.08 mm Dimension a 55.88 mm Width 62.96 mm Constructional height 12 mm 03/28/2016   Page 1 / 4 https://www.phoenixcontact.com/us/products/1755833 Base strip - MSTBVA 2,5/12-G-5,08 - 1755833 Technical data Dimensions Height 15.9 mm Length of the solder pin 3.9 mm Pin dimensions 1 x 1 mm Hole diameter 1.4 mm General Range of articles MSTBVA 2,5/..-G Insulating material group I Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A Insulating material PA Flammability rating according to UL 94 V0 Color green Number of positions 12 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 03/28/2016   Page 2 / 4 https://www.phoenixcontact.com/us/products/1755833 Base strip - MSTBVA 2,5/12-G-5,08 - 1755833 Classifications ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / EAC / cULus Recognized / EAC Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 12 A 10 A Nominal voltage UN 300 V 300 V VDE Gutachten mit Fertigungsüberwachung      Nominal current IN 12 A 03/28/2016   Page 3 / 4 https://www.phoenixcontact.com/us/products/1755833 Base strip - MSTBVA 2,5/12-G-5,08 - 1755833 Approvals     Nominal voltage UN 250 V IECEE CB Scheme      Nominal current IN 12 A Nominal voltage UN 250 V EAC  cULus Recognized    B D Nominal current IN 12 A 10 A Nominal voltage UN 300 V 300 V EAC  Drawings Drilling diagram Dimensional drawing a 5,08 12,6 3,54 15 1,4 3,9 12 29,5 22 3,8 a+7,08 3,8 3,54 8,6 5,08 a Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/28/2016   Page 4 / 4
