1757608

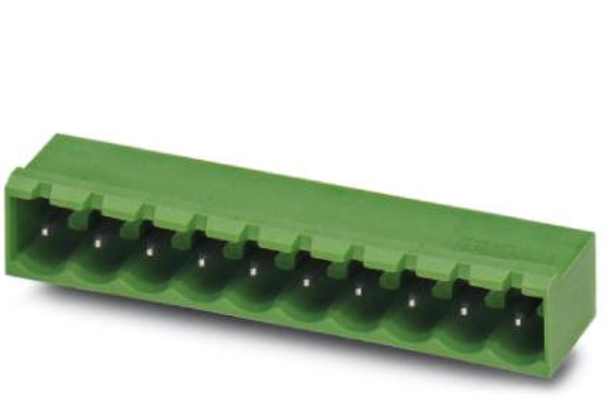

https://www.phoenixcontact.com/us/produkte/1757608 Base strip - MSTBA 2,5/16-G - 1757608 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Color: green, Contact surface: Tin, Assembly: Soldering The figure shows a 10-position version of the product Why buy this product  Other pin lengths available on request  Plug-in direction parallel to the conductor axis  W type with stand-off  Standard pin strip for 320 V (III/2)   Key commercial data Packing unit 1 Minimum order quantity 50 Catalog page Page 287 (CC-2011) GTIN Custom tariff number 85366990 Country of origin GERMANY Technical data Dimensions / positions Length 12 mm Pitch 5 mm Dimension a 75 mm Number of positions 16 Pin dimensions 1 x 1 mm Hole diameter 1.4 mm Technical data Range of articles MSTBA 2,5/..-G Insulating material group IIIa Rated surge voltage (III/3) 4 kV 19.10.2012   Page 1 / 7 https://www.phoenixcontact.com/us/produkte/1757608 Base strip - MSTBA 2,5/16-G - 1757608 Technical data Technical data Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/2) 320 V Rated voltage (II/2) 400 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal voltage UN 250 V Maximum load current 12 A Insulating material PBT Inflammability class according to UL 94 V0 Color green Nominal voltage, UL/CUL Use Group B 300 V Nominal current, UL/CUL Use Group B 15 A Nominal voltage, UL/CUL Use Group D 300 V Nominal current, UL/CUL Use Group D 15 A Classifications eclass eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 etim ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 unspsc UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals 19.10.2012   Page 2 / 7 https://www.phoenixcontact.com/us/produkte/1757608 Base strip - MSTBA 2,5/16-G - 1757608 Approvals Approvals CSA / UL Recognized / VDE report with production monitoring / cUL Recognized / GOST / IECEE CB Scheme / GOST / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V   B D Nominal current IN 15 A 15 A Nominal voltage UN 300 V 150 V UL Recognized  VDE report with production monitoring      Nominal current IN 12 A Nominal voltage UN 250 V cUL Recognized    B D Nominal current IN 15 A 15 A Nominal voltage UN 300 V 150 V GOST  19.10.2012   Page 3 / 7 https://www.phoenixcontact.com/us/produkte/1757608 Base strip - MSTBA 2,5/16-G - 1757608 Approvals IECEE CB Scheme      Nominal current IN 12 A Nominal voltage UN 250 V GOST  cULus Recognized  Accessories Accessories Assembly Accessories - MSTB-BL - 1755477 Keying cap, for forming sections, plugs onto header pin, green insulating material     Marking Marker cards - SK 5/3,8:FORTL.ZAHLEN - 0804183 Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting type: Adhesive, For terminal block width: 5 mm     Plug/Adapter Keying star - CR-MSTB - 1734401 Coding section, inserted into the recess in the header or the inverted plug, red insulating material     Additional products 19.10.2012   Page 4 / 7 https://www.phoenixcontact.com/us/produkte/1757608 Base strip - MSTBA 2,5/16-G - 1757608 Accessories Printed-circuit board connector - FKCVR 2,5/16-ST - 1909854 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Tin     Printed-circuit board connector - MSTB 2,5/16-ST - 1754724 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Printed-circuit board connector - MSTBP 2,5/16-ST - 1765917 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Printed-circuit board connector - MVSTBW 2,5/16-ST - 1792663 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Printed-circuit board connector - MSTBT 2,5/16-ST - 1779974 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Printed-circuit board connector - SMSTB 2,5/16-ST - 1768891 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     19.10.2012   Page 5 / 7 https://www.phoenixcontact.com/us/produkte/1757608 Base strip - MSTBA 2,5/16-G - 1757608 Accessories Printed-circuit board connector - MSTB 2,5/16-STZ - 1759392 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Printed-circuit board connector - FKC 2,5/16-ST - 1910490 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Tin     Printed-circuit board connector - FKCVW 2,5/16-ST - 1910173 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Tin     Printed-circuit board connector - FKCT 2,5/16-ST - 1909359 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Spring-cage conn., Color: green, Contact surface: Tin     Printed-circuit board connector - MVSTBR 2,5/16-ST - 1792155 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     19.10.2012   Page 6 / 7 https://www.phoenixcontact.com/us/produkte/1757608 Base strip - MSTBA 2,5/16-G - 1757608 Accessories Printed-circuit board connector - FRONT-MSTB 2,5/16-ST - 1779550 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 16, Pitch: 5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Drawings Drilling diagram Dimensioned drawing a 5 22 3,5 12 3,5 8,6 15 2 1,4 a+7 2 3,5 5 a © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 19.10.2012   Page 7 / 7
