1766233

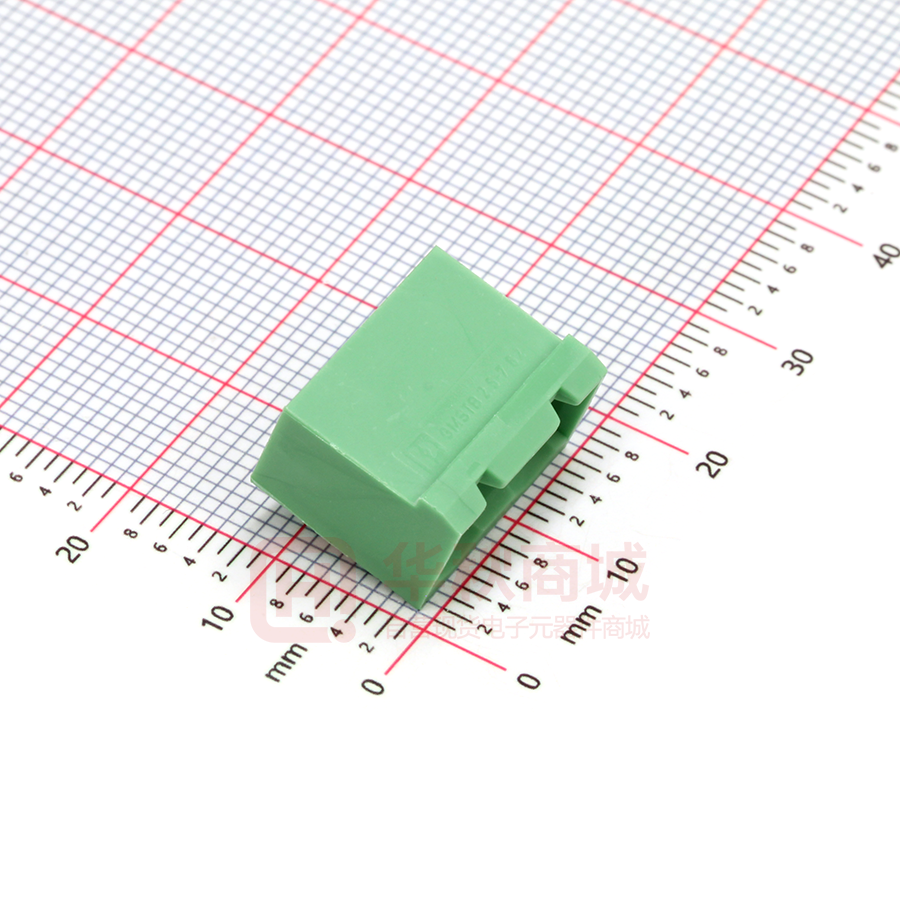

https://www.phoenixcontact.com/us/products/1766233 Base strip - GMSTBA 2,5/ 2-G-7,62 - 1766233 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 2, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering The figure shows a 10-position version of the product Product Features ■ ■ ■ ■ ■ Maximum flexibility when it comes to device design – one header for connectors with different connection technologies Well-known mounting principle allows worldwide use Larger pitch for increased voltage requirements Closed contour for optimum stability of the plug-in connection Plug-in direction parallel to the PCB Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 1.54 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 12 mm Pitch 7.62 mm Dimension a 7.62 mm Width 15.24 mm 04/12/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1766233 Base strip - GMSTBA 2,5/ 2-G-7,62 - 1766233 Technical data Dimensions Constructional height 15 mm Height 18.5 mm Length of the solder pin 3.5 mm Pin dimensions 1 x 1 mm Hole diameter 1.4 mm General Range of articles GMSTBA 2,5/..-G Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 400 V Rated voltage (III/2) 630 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A Insulating material PA Flammability rating according to UL 94 V0 Color green Number of positions 2 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 04/12/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1766233 Base strip - GMSTBA 2,5/ 2-G-7,62 - 1766233 Classifications eCl@ss eCl@ss 9.0 27440402 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / EAC / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V 04/12/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1766233 Base strip - GMSTBA 2,5/ 2-G-7,62 - 1766233 Approvals UL Recognized    B D Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V VDE Gutachten mit Fertigungsüberwachung      Nominal current IN 12 A Nominal voltage UN 400 V cUL Recognized    B D Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V IECEE CB Scheme      Nominal current IN 12 A Nominal voltage UN 400 V EAC  EAC  cULus Recognized  Drawings 04/12/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1766233 Base strip - GMSTBA 2,5/ 2-G-7,62 - 1766233 Drilling diagram Diagram Current strength [A] a 3,81 2 1,4 7,62 24 20 16 12 8 = 2-pos. = 5-pos. = 12-pos. 4 0 0 20 40 60 80 100 Ambient temperature [°C] Type: GMSTB 2,5/...-ST-7,62 with GMSTBA 2,5/...-G-7,62 Dimensional drawing 22 12 3,5 8,6 15 a+7,62 2 3,81 7,62 a Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 04/12/2016   Page 5 / 5
