Base strip - GMSTBA 2,5/ 4-G-7,62 - 1766259
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Color: green,
Contact surface: Tin, Assembly: Soldering

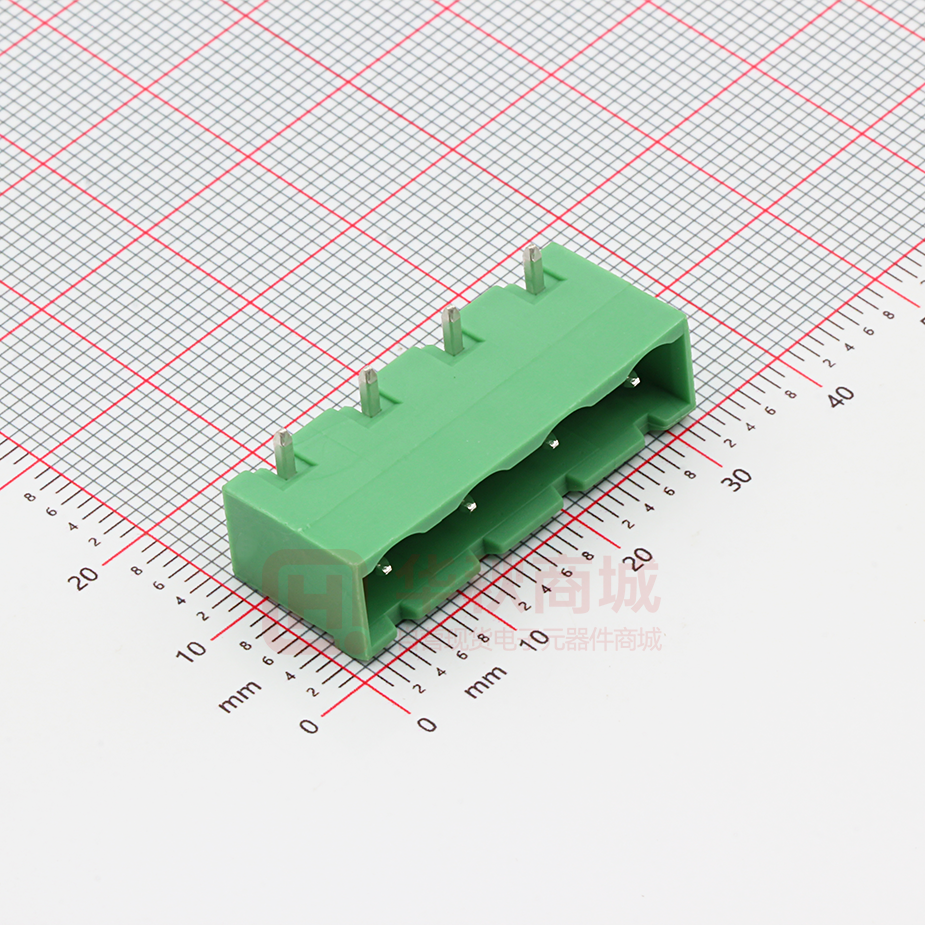

The figure shows a 10-position
version of the product
Product Features
Versions with threaded flange and 7.62 mm pitch
Plug-in direction parallel to the PCB
Headers with angled solder pins for 630 V applications (III/2)
Key commercial data
Packing unit
1 pc
GTIN
Weight per Piece (excluding packing)
2.64 GRM
Custom tariff number
85366990
Country of origin
Germany
Technical data
Dimensions
Length
12 mm
Pitch
7.62 mm
Dimension a
22.86 mm
Pin dimensions
1 x 1 mm
Hole diameter
1.4 mm
General
Range of articles
GMSTBA 2,5/..-G
04/06/2014 Page 1 / 7
https://www.phoenixcontact.com/us/products/1766259
Base strip - GMSTBA 2,5/ 4-G-7,62 - 1766259
Technical data
General
Insulating material group
I
Rated surge voltage (III/3)
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/3)
400 V
Rated voltage (III/2)
630 V
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
12 A
Maximum load current
12 A
Insulating material
PA
Inflammability class according to UL 94
V0
Color
green
Number of positions
4
Classifications
eCl@ss
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
eCl@ss 8.0
27440402
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002637
ETIM 5.0
EC002637
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
04/06/2014 Page 2 / 7
https://www.phoenixcontact.com/us/products/1766259
Base strip - GMSTBA 2,5/ 4-G-7,62 - 1766259
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / GOST / IECEE CB Scheme / GOST / CCA / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
B
D
Nominal current IN
10 A
10 A
Nominal voltage UN
300 V
300 V
B
D
Nominal current IN
15 A
10 A
Nominal voltage UN
300 V
300 V
UL Recognized
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
12 A
Nominal voltage UN
400 V
04/06/2014 Page 3 / 7
https://www.phoenixcontact.com/us/products/1766259
Base strip - GMSTBA 2,5/ 4-G-7,62 - 1766259
Approvals
cUL Recognized
B
D
Nominal current IN
15 A
10 A
Nominal voltage UN
300 V
300 V
GOST
IECEE CB Scheme
Nominal current IN
12 A
Nominal voltage UN
400 V
GOST
CCA
Nominal current IN
12 A
Nominal voltage UN
400 V
cULus Recognized
Accessories
Accessories
Coding element
04/06/2014 Page 4 / 7
https://www.phoenixcontact.com/us/products/1766259
Base strip - GMSTBA 2,5/ 4-G-7,62 - 1766259
Accessories
Coding star - CR-MSTB - 1734401
Coding section, inserted into the recess in the header or the inverted plug, red insulating material
Filler plug
Accessories - MSTB-BL - 1755477
Keying cap, for forming sections, plugs onto header pin, green insulating material
Labeled terminal marker
Marker cards - SK 7,62/3,8:FORTL.ZAHLEN - 0804549
Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 100, Mounting type:
Adhesive, For terminal block width: 7.62 mm, Lettering field: 7.62 x 3.8 mm
Additional products
Printed-circuit board connector - GMSTB 2,5/ 4-ST-7,62 - 1767025
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Connection
method: Screw connection, Color: green, Contact surface: Tin
04/06/2014 Page 5 / 7
https://www.phoenixcontact.com/us/products/1766259
Base strip - GMSTBA 2,5/ 4-G-7,62 - 1766259
Accessories
Printed-circuit board connector - FRONT-GMSTB 2,5/ 4-ST-7,62 - 1806135
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Connection
method: Screw connection, Color: green, Contact surface: Tin
Base strip - GIC 2,5/ 4-G-7,62 - 1828692
Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Color: green,
Contact surface: Tin, Assembly: Soldering
Printed-circuit board connector - GMVSTBR 2,5/ 4-ST-7,62 - 1832549
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Connection
method: Screw connection, Color: green, Contact surface: Tin
Printed-circuit board connector - GMVSTBW 2,5/ 4-ST-7,62 - 1832439
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Connection
method: Screw connection, Color: green, Contact surface: Tin
Base strip - GICV 2,5/ 4-G-7,62 - 1828935
Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Color: green,
Contact surface: Tin, Assembly: Soldering
Drawings
04/06/2014 Page 6 / 7
https://www.phoenixcontact.com/us/products/1766259
Base strip - GMSTBA 2,5/ 4-G-7,62 - 1766259
Drilling diagram
Diagram
Current carrying capacity [A]
a
3,81
2
1,4
7,62
24
20
16
2
12
1
8
1 = 2-pos.
2 = 5-pos.
3 = 12-pos.
4
0
0
20
3
40
60
80
100
Ambient temperature [°C]
Type: GMSTB 2,5/...-ST-7,62 with GMSTBA 2,5/...-G-7,62
Dimensioned drawing
22
12
3,5
8,6
15
a+7,62
2
3,81
7,62
a
Phoenix Contact 2014 © - all rights reserved
