1766314

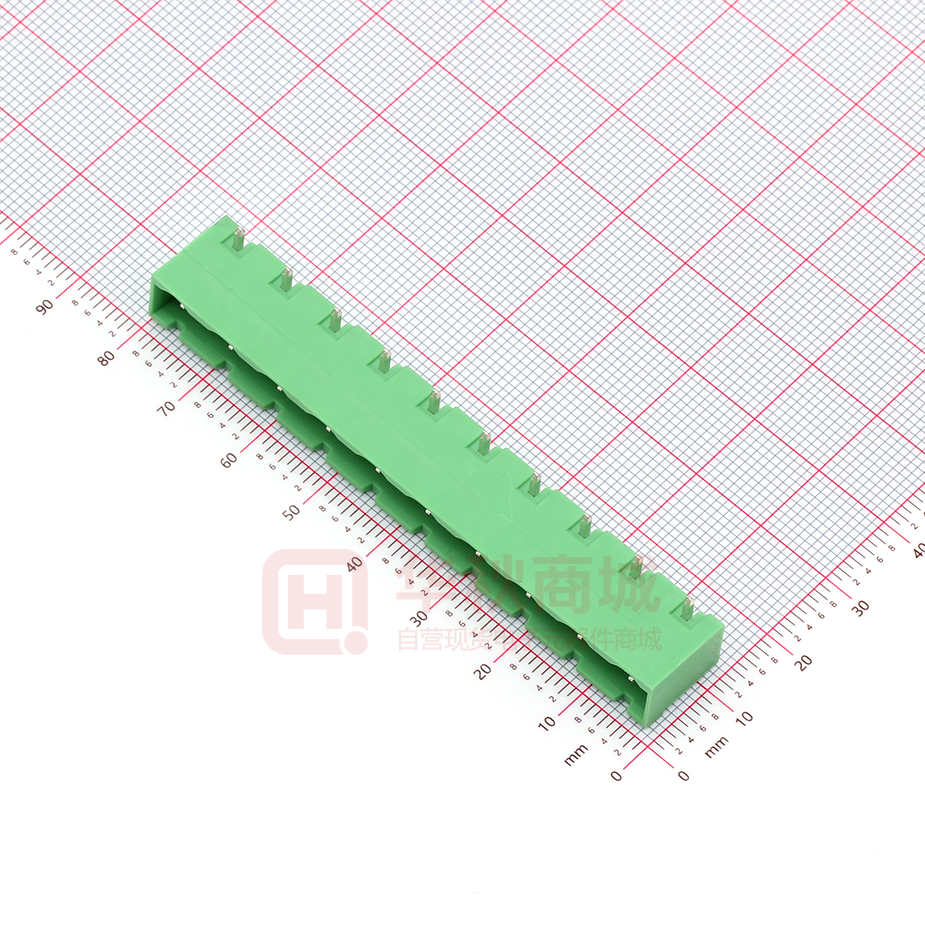

https://www.phoenixcontact.com/us/products/1766314 Feed-through header - GMSTBA 2,5/10-G-7,62 - 1766314 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB headers, nominal current: 12 A, number of positions: 10, pitch: 7.62 mm, color: green, contact surface: Tin, mounting: Wave soldering Your advantages  Maximum flexibility when it comes to device design – one header for connectors with different connection technologies  Well-known mounting principle allows worldwide use  Larger pitch for increased voltage requirements  Closed contour for optimum stability of the plug-in connection  Plug-in direction parallel to the PCB Key Commercial Data Packing unit 1 pc Minimum order quantity 100 pc GTIN GTIN 4017918032333 Weight per Piece (excluding packing) 6.160 g Custom tariff number 85366930 Country of origin Germany Technical data Dimensions Length [ l ] 12 mm Width 76.2 mm Pitch 7.62 mm Dimension a 68.58 mm 11/14/2019   Page 1 / 8 https://www.phoenixcontact.com/us/products/1766314 Feed-through header - GMSTBA 2,5/10-G-7,62 - 1766314 Technical data Dimensions Width [ w ] 76.2 mm Height [ h ] 11.8 mm Height 8.6 mm Length of the solder pin 3.2 mm Pin dimensions 1 x 1 mm Length 12 mm General Range of articles GMSTBA 2,5/..-G Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 400 V Rated voltage (III/2) 630 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A Insulating material PA Flammability rating according to UL 94 V0 Color green Number of positions 10 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 11/14/2019   Page 2 / 8 https://www.phoenixcontact.com/us/products/1766314 Feed-through header - GMSTBA 2,5/10-G-7,62 - 1766314 Drilling diagram Diagram Type: GMSTB 2,5/...-ST-7,62 with GMSTBA 2,5/...-G-7,62 11/14/2019   Page 3 / 8 https://www.phoenixcontact.com/us/products/1766314 Feed-through header - GMSTBA 2,5/10-G-7,62 - 1766314 Dimensional drawing Classifications eCl@ss eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 ETIM 6.0 EC002637 ETIM 7.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 11/14/2019   Page 4 / 8 https://www.phoenixcontact.com/us/products/1766314 Feed-through header - GMSTBA 2,5/10-G-7,62 - 1766314 Classifications UNSPSC UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized Ex Approvals Approval details CSA    http://www.csagroup.org/services-industries/product-listing/   B D Nominal voltage UN 300 V 300 V Nominal current IN 10 A 10 A IECEE CB Scheme    http://www.iecee.org/     Nominal voltage UN 400 V Nominal current IN 12 A VDE Gutachten mit Fertigungsüberwachung    http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx     Nominal voltage UN 400 V Nominal current IN 12 A  13631  DE1-60988-B1B2  40004701 11/14/2019   Page 5 / 8 https://www.phoenixcontact.com/us/products/1766314 Feed-through header - GMSTBA 2,5/10-G-7,62 - 1766314 Approvals EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E60425-19931013   B D Nominal voltage UN 300 V 300 V Nominal current IN 15 A 10 A Accessories Accessories Coding element Coding section - CR-MSTB - 1734401 Coding section, inserted into the recess in the header or the inverted plug, red insulating material     Filler plug Accessories - MSTB-BL - 1755477 Keying cap, for forming sections, plugs onto header pin, green insulating material     Labeled terminal marker Marker card - SK 7,62/3,8:FORTL.ZAHLEN - 0804549 Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... 100, mounting type: adhesive, for terminal block width: 7.62 mm, lettering field size: 7.62 x 3.8 mm     11/14/2019   Page 6 / 8 https://www.phoenixcontact.com/us/products/1766314 Feed-through header - GMSTBA 2,5/10-G-7,62 - 1766314 Accessories Additional products Printed-circuit board connector - GMSTB 2,5/10-ST-7,62 - 1767083 PCB connector, nominal current: 12 A, number of positions: 10, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin     Printed-circuit board connector - FRONT-GMSTB 2,5/10-ST-7,62 - 1806193 PCB connector, nominal current: 12 A, number of positions: 10, pitch: 7.62 mm, connection method: Front screw connection, color: green, contact surface: Tin     Printed-circuit board connector - GMVSTBW 2,5/10-ST-7,62 - 1832497 PCB connector, nominal current: 12 A, number of positions: 10, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin     Printed-circuit board connector - GMVSTBR 2,5/10-ST-7,62 - 1832604 PCB connector, nominal current: 12 A, number of positions: 10, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin     Printed-circuit board connector - GFKC 2,5/10-ST-7,62 - 1939714 PCB connector, nominal current: 12 A, number of positions: 10, pitch: 7.62 mm, connection method: Push-in spring connection, color: green, contact surface: Tin, COMBICON connectors may only be activated under no load conditions. If for operating reasons small loads must be switched, experimental values are available upon request.     11/14/2019   Page 7 / 8 https://www.phoenixcontact.com/us/products/1766314 Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 11/14/2019   Page 8 / 8
