Base strip - GMSTBA 2,5/12-G-7,62 - 1766330
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 12, Pitch: 7.62 mm, Color:
green, Contact surface: Tin, Assembly: Soldering

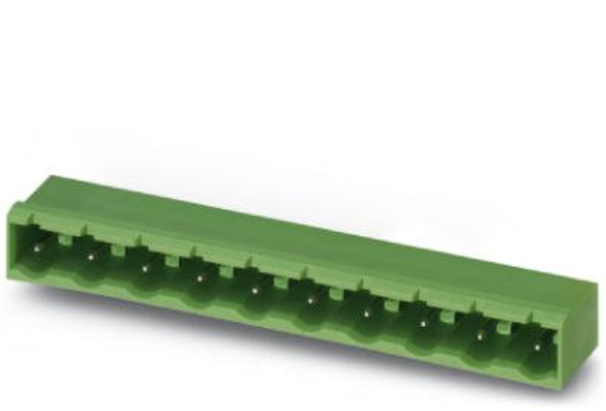

The figure shows a 10-position
version of the product
Product Features
Versions with threaded flange and 7.62 mm pitch
Plug-in direction parallel to the PCB
Headers with angled solder pins for 630 V applications (III/2)
Key commercial data
Packing unit
1 PCE
Minimum order quantity
50 PCE
GTIN
Custom tariff number
85366990
Country of origin
GERMANY
Technical data
Dimensions / positions
Length
12 mm
Pitch
7.62 mm
Dimension a
83.82 mm
Number of positions
12
Pin dimensions
1 x 1 mm
Hole diameter
1.4 mm
Technical data
01.05.2013 Page 1 / 7
https://www.phoenixcontact.com/us/produkte/1766330
Base strip - GMSTBA 2,5/12-G-7,62 - 1766330
Technical data
Technical data
Range of articles
GMSTBA 2,5/..-G
Insulating material group
I
Rated surge voltage (III/3)
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/2)
630 V
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
12 A
Nominal voltage UN
400 V
Maximum load current
12 A
Insulating material
PA
Inflammability class according to UL 94
V0
Color
green
Nominal voltage, UL/CUL Use Group B
250 V
Nominal current, UL/CUL Use Group B
12 A
Nominal voltage, UL/CUL Use Group D
300 V
Nominal current, UL/CUL Use Group D
10 A
Classifications
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002637
ETIM 5.0
EC002637
UNSPSC
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
eCl@ss
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
01.05.2013 Page 2 / 7
https://www.phoenixcontact.com/us/produkte/1766330
Base strip - GMSTBA 2,5/12-G-7,62 - 1766330
Classifications
eCl@ss
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / GOST / IECEE CB Scheme / GOST / CCA / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
B
D
Nominal current IN
10 A
10 A
Nominal voltage UN
300 V
300 V
B
D
Nominal current IN
15 A
10 A
Nominal voltage UN
300 V
300 V
UL Recognized
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
12 A
01.05.2013 Page 3 / 7
https://www.phoenixcontact.com/us/produkte/1766330
Base strip - GMSTBA 2,5/12-G-7,62 - 1766330
Approvals
Nominal voltage UN
400 V
cUL Recognized
B
D
Nominal current IN
15 A
10 A
Nominal voltage UN
300 V
300 V
GOST
IECEE CB Scheme
Nominal current IN
12 A
Nominal voltage UN
400 V
GOST
CCA
Nominal current IN
12 A
Nominal voltage UN
400 V
cULus Recognized
Accessories
Accessories
Assembly
01.05.2013 Page 4 / 7
https://www.phoenixcontact.com/us/produkte/1766330
Base strip - GMSTBA 2,5/12-G-7,62 - 1766330
Accessories
Accessories - MSTB-BL - 1755477
Keying cap, for forming sections, plugs onto header pin, green insulating material
Marking
Marker cards - SK 7,62/3,8:FORTL.ZAHLEN - 0804549
Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 100, Mounting type:
Adhesive, For terminal block width: 7.62 mm
Plug/Adapter
Coding star - CR-MSTB - 1734401
Coding section, inserted into the recess in the header or the inverted plug, red insulating material
Additional products
Printed-circuit board connector - GMVSTBW 2,5/12-ST-7,62 - 1832510
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 12, Pitch: 7.62 mm,
Connection method: Screw connection, Color: green, Contact surface: Tin
01.05.2013 Page 5 / 7
https://www.phoenixcontact.com/us/produkte/1766330
Base strip - GMSTBA 2,5/12-G-7,62 - 1766330
Accessories
Base strip - GICV 2,5/12-G-7,62 - 1829015
Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 12, Pitch: 7.62 mm, Color: green,
Contact surface: Tin, Assembly: Soldering
Base strip - GIC 2,5/12-G-7,62 - 1828773
Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 12, Pitch: 7.62 mm, Color: green,
Contact surface: Tin, Assembly: Soldering
Printed-circuit board connector - FRONT-GMSTB 2,5/12-ST-7,62 - 1806216
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 12, Pitch: 7.62 mm,
Connection method: Screw connection, Color: green, Contact surface: Tin
Printed-circuit board connector - GMSTB 2,5/12-ST-7,62 - 1767106
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 12, Pitch: 7.62 mm,
Connection method: Screw connection, Color: green, Contact surface: Tin
Plug - GMVSTBR 2,5/12-ST-7,62 - 1832620
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 12, Pitch: 7.62 mm,
Connection method: Screw connection, Color: green, Contact surface: Tin
Drawings
01.05.2013 Page 6 / 7
https://www.phoenixcontact.com/us/produkte/1766330
Base strip - GMSTBA 2,5/12-G-7,62 - 1766330
Drilling diagram
Dimensioned drawing
a
7,62
22
3,81
1,4
12
3,5
8,6
15
2
a+7,62
2
3,81
7,62
a
