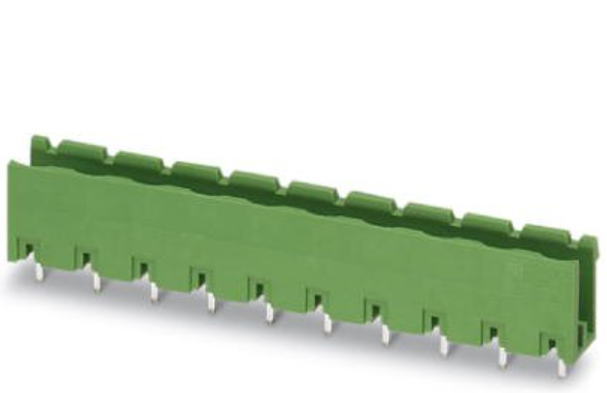

Extract from the online catalog     GMSTBV 2,5/ 2-G-7,62 Order No.: 1766563 The figure shows a 10-position version of the product   s. Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Pitch: 7.62 mm, Color: green, Metal surface: Sn, Assembly: Soldering co   m http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1766563 Commercial data 4017918032586 sales group E112 Pack 50 pcs. Customs tariff 85366990 Weight/Piece 0.001094 KG po om Page 276 (CC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. on l in ec Catalog page information WEEE/RoHS-compliant since: 01/01/2003 ne EAN nt Product notes Technical data Dimensions / positions Length 8.6 mm Pitch 7.62 mm Dimension a 7.62 mm Number of positions 2 Pin dimensions 1 x 1 mm PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 1 / 4 May 24, 2010 GMSTBV 2,5/ 2-G-7,62 Order No.: 1766563 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1766563 Hole diameter 1.4 mm Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/2) 630 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal voltage UN 400 V Maximum load current 12 A Insulating material PA Inflammability class acc. to UL 94 V0 Nominal voltage, UL/CUL Use Group B 250 V Nominal current, UL/CUL Use Group B 12 A Nominal voltage, UL/CUL Use Group D 300 V CSA on l Certification in ec Certificates / Approvals po 10 A om Nominal current, UL/CUL Use Group D co 6 kV s. Rated surge voltage (III/3) nt IIIa ne Insulating material group m Technical data CB, CSA, CUL, GOST, UL, VDE-PZI Nominal voltage UN 300 V Nominal current IN 10 A CUL Nominal voltage UN 300 V Nominal current IN 10 A UL Nominal voltage UN 300 V Nominal current IN 10 A PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 2 / 4 May 24, 2010 GMSTBV 2,5/ 2-G-7,62 Order No.: 1766563 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1766563 Diagrams/Drawings m Drilling plan/solder pad geometry on l in ec om po ne nt s. co Dimensioned drawing PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 3 / 4 May 24, 2010 GMSTBV 2,5/ 2-G-7,62 Order No.: 1766563 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1766563 Address s. co m PHOENIX CONTACT Deutschland GmbH Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 12000 Fax +49 5235 3 41200 http://www.phoenixcontact.de on l in ec om po ne nt © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 4 / 4 May 24, 2010
