Feed-through header - GMSTBV 2,5/ 5-G-7,62 - 1766592
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 12 A, number of positions: 5, pitch: 7.62 mm, color: green, contact surface: Tin,
mounting: Wave soldering

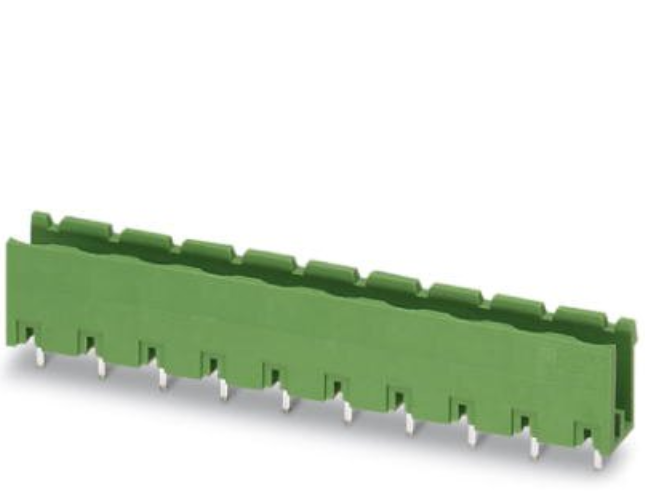

The figure shows a 10-position
version of the product
Your advantages
Plug-in direction vertical to the PCB
Headers with straight solder pins for 630 V applications (III/2)
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Well-known mounting principle allows worldwide use
Larger pitch for increased voltage requirements
Vertical connection enables multi-row arrangement on the PCB
Key Commercial Data
Packing unit
1 pc
Minimum order quantity
50 pc
GTIN
GTIN
4017918032616
Weight per Piece (excluding packing)
2.930 g
Custom tariff number
85366930
Country of origin
Germany
Technical data
Dimensions
Length [ l ]
8.6 mm
Width
36.3 mm
08/29/2019 Page 1 / 7
https://www.phoenixcontact.com/us/products/1766592
Feed-through header - GMSTBV 2,5/ 5-G-7,62 - 1766592
Technical data
Dimensions
Pitch
7.62 mm
Dimension a
30.48 mm
Width [ w ]
36.3 mm
Height [ h ]
15.9 mm
Height
12 mm
Length of the solder pin
3.9 mm
Pin dimensions
1 x 1 mm
Length
8.6 mm
General
Range of articles
GMSTBV 2,5/..-G
Insulating material group
I
Rated surge voltage (III/3)
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/3)
400 V
Rated voltage (III/2)
630 V
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
12 A
Maximum load current
12 A
Insulating material
PA
Flammability rating according to UL 94
V0
Color
green
Number of positions
5
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
27260700
08/29/2019 Page 2 / 7
https://www.phoenixcontact.com/us/products/1766592
Feed-through header - GMSTBV 2,5/ 5-G-7,62 - 1766592
Classifications
eCl@ss
eCl@ss 4.1
27260700
eCl@ss 5.0
27260700
eCl@ss 5.1
27260700
eCl@ss 6.0
27260700
eCl@ss 7.0
27440402
eCl@ss 8.0
27440402
eCl@ss 9.0
27440402
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002637
ETIM 5.0
EC002637
ETIM 6.0
EC002637
ETIM 7.0
EC002637
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
CSA / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
08/29/2019 Page 3 / 7
https://www.phoenixcontact.com/us/products/1766592
Feed-through header - GMSTBV 2,5/ 5-G-7,62 - 1766592
Approvals
CSA
http://www.csagroup.org/services-industries/product-listing/
B
D
Nominal voltage UN
300 V
300 V
Nominal current IN
10 A
10 A
IECEE CB Scheme
http://www.iecee.org/
Nominal voltage UN
400 V
Nominal current IN
12 A
VDE Gutachten mit
Fertigungsüberwachung
DE1-60988-B1B2
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
Nominal voltage UN
400 V
Nominal current IN
12 A
LR13631-2585950
40004701
EAC
B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
E60425-19931013
B
D
Nominal voltage UN
300 V
300 V
Nominal current IN
15 A
10 A
Accessories
Accessories
Coding element
08/29/2019 Page 4 / 7
https://www.phoenixcontact.com/us/products/1766592
Feed-through header - GMSTBV 2,5/ 5-G-7,62 - 1766592
Accessories
Coding section - CR-MSTB - 1734401
Coding section, inserted into the recess in the header or the inverted plug, red insulating material
Filler plug
Accessories - MSTB-BL - 1755477
Keying cap, for forming sections, plugs onto header pin, green insulating material
Flange
Accessories - MSTB-BF - 1759981
Mounting flange, for fixing both ends of the header onto the PCB, green insulating material, with M 2 x 14 screws and
nuts.
Labeled terminal marker
Marker card - SK 7,62/3,8:FORTL.ZAHLEN - 0804549
Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... 100, mounting type:
adhesive, for terminal block width: 7.62 mm, lettering field size: 7.62 x 3.8 mm
Additional products
08/29/2019 Page 5 / 7
https://www.phoenixcontact.com/us/products/1766592
Feed-through header - GMSTBV 2,5/ 5-G-7,62 - 1766592
Accessories
Printed-circuit board connector - GMSTB 2,5/ 5-ST-7,62 - 1767038
PCB connector, nominal current: 12 A, number of positions: 5, pitch: 7.62 mm, connection method: Screw connection
with tension sleeve, color: green, contact surface: Tin
Printed-circuit board connector - FRONT-GMSTB 2,5/ 5-ST-7,62 - 1806148
PCB connector, nominal current: 12 A, number of positions: 5, pitch: 7.62 mm, connection method: Front screw
connection, color: green, contact surface: Tin
Printed-circuit board connector - GMVSTBW 2,5/ 5-ST-7,62 - 1832442
PCB connector, nominal current: 12 A, number of positions: 5, pitch: 7.62 mm, connection method: Screw connection
with tension sleeve, color: green, contact surface: Tin
Printed-circuit board connector - GMVSTBR 2,5/ 5-ST-7,62 - 1832552
PCB connector, nominal current: 12 A, number of positions: 5, pitch: 7.62 mm, connection method: Screw connection
with tension sleeve, color: green, contact surface: Tin
Printed-circuit board connector - GFKC 2,5/ 5-ST-7,62 - 1939662
PCB connector, nominal current: 12 A, number of positions: 5, pitch: 7.62 mm, connection method: Push-in spring
connection, color: green, contact surface: Tin, COMBICON connectors may only be activated under no load conditions. If
for operating reasons small loads must be switched, experimental values are available upon request.
08/29/2019 Page 6 / 7
https://www.phoenixcontact.com/us/products/1766592
