1766657

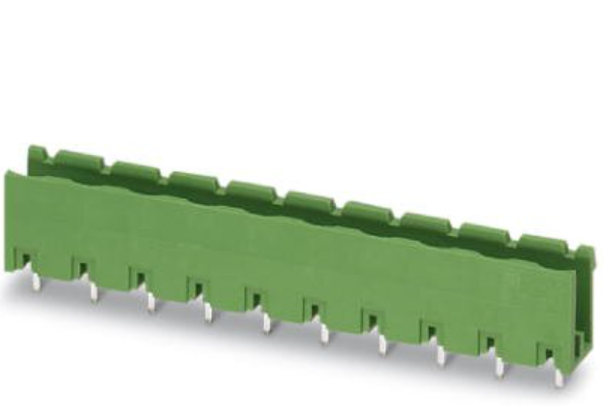

https://www.phoenixcontact.com/us/products/1766657 Base strip - GMSTBV 2,5/11-G-7,62 - 1766657 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 11, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Assembly: Soldering The figure shows a 10-position version of the product Product Features  Plug-in direction vertical to the PCB  Headers with straight solder pins for 630 V applications (III/2)   Key commercial data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 6.22 GRM Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 8.6 mm Pitch 7.62 mm Dimension a 76.2 mm Pin dimensions 1 x 1 mm Hole diameter 1.4 mm General Range of articles GMSTBV 2,5/..-G Insulating material group I 10/24/2014   Page 1 / 5 https://www.phoenixcontact.com/us/products/1766657 Base strip - GMSTBV 2,5/11-G-7,62 - 1766657 Technical data General Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 400 V Rated voltage (III/2) 630 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A Insulating material PA Inflammability class according to UL 94 V0 Color green Number of positions 11 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 10/24/2014   Page 2 / 5 https://www.phoenixcontact.com/us/products/1766657 Base strip - GMSTBV 2,5/11-G-7,62 - 1766657 Approvals Approvals Approvals CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / GOST / IECEE CB Scheme / CCA / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V   B D Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V UL Recognized  VDE Gutachten mit Fertigungsüberwachung      Nominal current IN 12 A Nominal voltage UN 400 V 10/24/2014   Page 3 / 5 https://www.phoenixcontact.com/us/products/1766657 Base strip - GMSTBV 2,5/11-G-7,62 - 1766657 Approvals cUL Recognized    B D Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V GOST  IECEE CB Scheme      Nominal current IN 12 A Nominal voltage UN 400 V CCA      Nominal current IN 12 A Nominal voltage UN 400 V cULus Recognized  Drawings Drilling diagram Dimensioned drawing a 7,62 15 2,54 12 22 3,9 1,4 3,8 a+5,82 3,8 2,91 8,6 7,62 a 10/24/2014   Page 4 / 5 https://www.phoenixcontact.com/us/products/1766657 Phoenix Contact 2014 © - all rights reserved http://www.phoenixcontact.com 10/24/2014   Page 5 / 5
