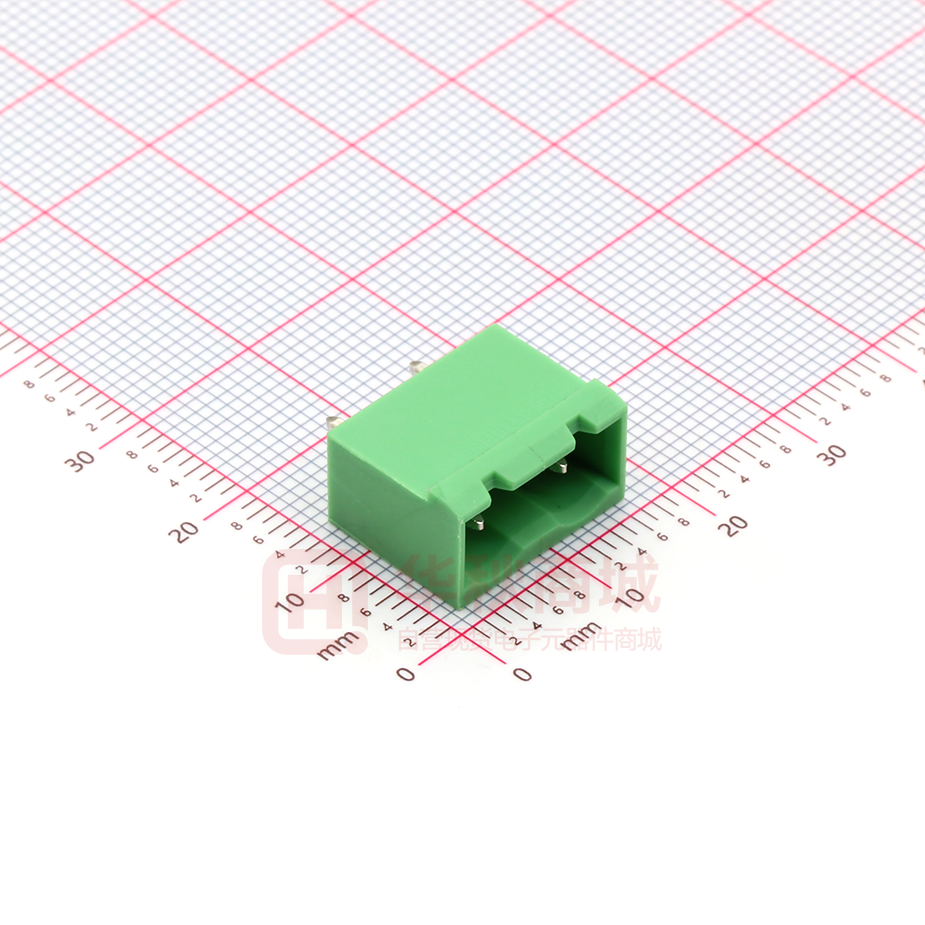

GMSTBVA 2,5/ 2-G-7,62
Order No.: 1766770
The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1766770
Header, Nominal current: 12 A, Nom. voltage: 400 V, Pitch: 7.62 mm,
Number of positions: 2, Color: green, Assembly: Soldering
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Commercial data
EAN
4017918032791
Pack
50 pcs.
Customs tariff
85366990
Weight/Piece
0.001278 KG
Catalog page information
Page 277 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Length
8.6 mm
Pitch
7.62 mm
Dimension a
7.62 mm
Number of positions
2
Pin dimensions
1 x 1 mm
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 5
Feb 25, 2010
GMSTBVA 2,5/ 2-G-7,62 Order No.: 1766770
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1766770
Hole diameter
1.4 mm
Technical data
Insulating material group
I
Rated surge voltage (III/3)
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/2)
630 V
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
12 A
Nominal voltage UN
400 V
Maximum load current
12 A
Insulating material
PA
Inflammability class acc. to UL 94
V0
Certificates / Approvals
Certification
CB, CSA, CUL, GOST, UL, VDE-PZI
CSA
Nominal voltage UN
300 V
Nominal current IN
10 A
CUL
Nominal voltage UN
300 V
Nominal current IN
10 A
UL
Nominal voltage UN
300 V
Nominal current IN
10 A
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 5
Feb 25, 2010
GMSTBVA 2,5/ 2-G-7,62 Order No.: 1766770
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1766770
Accessories
Item
Designation
Description
MSTB-BL
Keying cap, for forming sections, plugs onto header pin, green
insulating material
SK 7,62/3,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 12 identical decades marked 1-10, 11-20 etc. up to 91-99,
sufficient for 120 terminal blocks
CR-MSTB
Coding section, inserted into the recess in the header or the
inverted plug, red insulating material
Assembly
1755477
Marking
0804549
Plug/Adapter
1734401
Additional products
Item
Designation
Description
1806119
FRONT-GMSTB 2,5/ 2-ST-7,62
Plug component, Nominal current: 12 A, Nom. voltage: 400 V,
Pitch: 7.62 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
1828676
GIC 2,5/ 2-G-7,62
Header, Nominal current: 12 A, Nom. voltage: 500 V, Pitch: 7.62
mm, Number of positions: 2, Assembly: Soldering
1828919
GICV 2,5/ 2-G-7,62
Header, Nominal current: 12 A, Nom. voltage: 500 V, Pitch: 7.62
mm, Number of positions: 2, Assembly: Soldering
1766990
GMSTB 2,5/ 2-ST-7,62
Plug component, Nominal current: 12 A, Nom. voltage: 400 V,
Pitch: 7.62 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
1832523
GMVSTBR 2,5/ 2-ST-7,62
Plug component, Nominal current: 12 A, Nom. voltage: 500 V,
Pitch: 7.62 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
1832413
GMVSTBW 2,5/ 2-ST-7,62
Plug component, Nominal current: 12 A, Nom. voltage: 500 V,
Pitch: 7.62 mm, Number of positions: 2, Connection type: Screw
connection, Color: green
General
