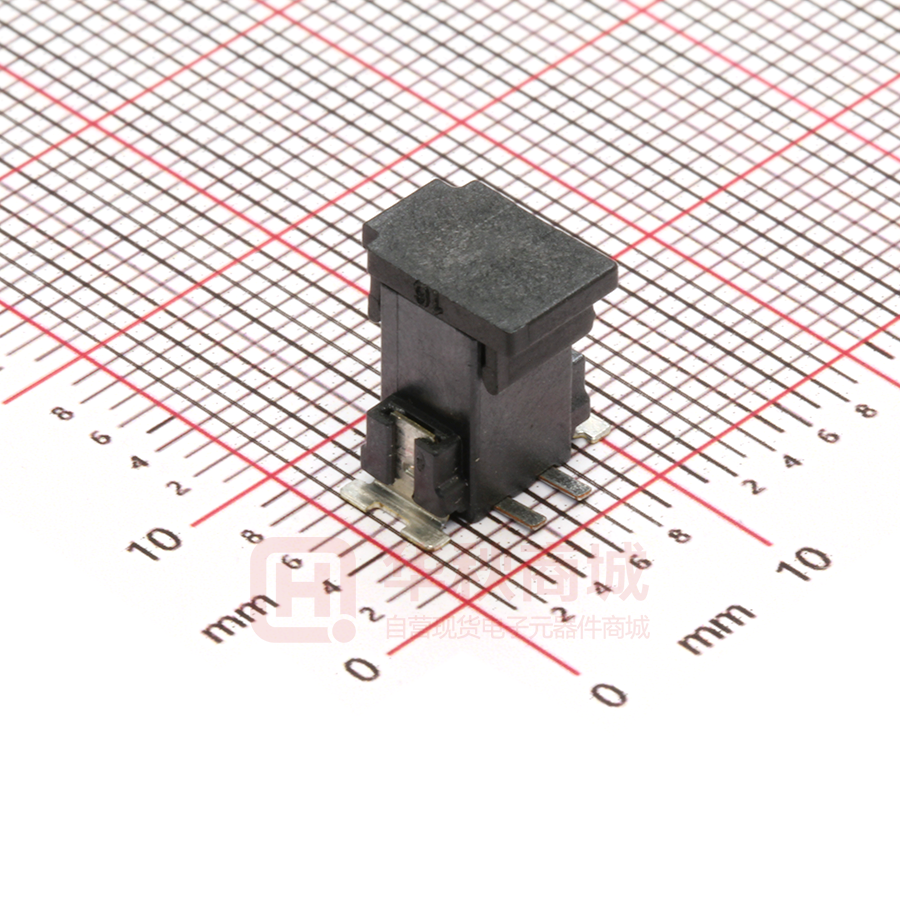

  Extract from the online catalog   PTSM 0,5/ 2-2,5-V SMD R44 Order No.: 1771091 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1771091   PC terminal block, Nominal current: 6 A, Nom. voltage: 32 V, Pitch: 2.5 mm, Number of positions: 2, Type of connection: Spring-cage conn., Assembly: SMD/THT/THR, Conductor/PCB connection direction: 90 °, Color: black   Product notes Commercial data EAN Pack Customs tariff Weight/Piece Catalog page information 4046356460125 400 pcs. 85369010 0.002051 KG Page 465 (CC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. WEEE/RoHS-compliant since: 10/20/2009 Technical data Dimensions / positions Length Pitch Dimension a 5 mm 2.5 mm 2.5 mm PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 1 / 5 Feb 25, 2010 PTSM 0,5/ 2-2,5-V SMD R44 Order No.: 1771091 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1771091 Number of positions Pin spacing Technical data Insulating material group Rated surge voltage (III/3) Rated surge voltage (III/2) Rated surge voltage (II/2) Rated voltage (III/2) Rated voltage (II/2) Connection in acc. with standard Nominal current IN Nominal voltage UN Nominal cross section Maximum load current Insulating material Inflammability class acc. to UL 94 Stripping length Connection data Conductor cross section solid min. Conductor cross section solid max. Conductor cross section stranded min. Conductor cross section stranded max. Conductor cross section stranded, with ferrule without plastic sleeve min. Conductor cross section stranded, with ferrule without plastic sleeve max. Conductor cross section AWG/kcmil min. Conductor cross section AWG/kcmil max Certificates / Approvals Certification CUL Nominal voltage UN Nominal current IN AWG/kcmil 2 2.5 mm IIIa 2.5 kV 2.5 kV 2.5 kV 160 V 160 V EN-VDE 6A 32 V 0.5 mm² 6A LCP V0 6 mm 0.14 mm² 0.5 mm² 0.2 mm² 0.5 mm² 0.25 mm² 0.5 mm² 24 20 CUL, UL 150 V 5A 26-20 PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 2 / 5 Feb 25, 2010 PTSM 0,5/ 2-2,5-V SMD R44 Order No.: 1771091 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1771091 UL Nominal voltage UN Nominal current IN AWG/kcmil Accessories Item Tools 1205202 SZS 0,4X2,0 Screwdriver, bladed, matches all screw terminal blocks up to 1.5 mm² connection cross section, blade width: 2.5 mm, without approvals Designation Description 150 V 5A 26-20 Diagrams/Drawings Drilling plan/solder pad geometry Dimension M: 8.4 mm Diagram PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 3 / 5 Feb 25, 2010 PTSM 0,5/ 2-2,5-V SMD R44 Order No.: 1771091 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1771091 Dimensioned drawing PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 4 / 5 Feb 25, 2010 PTSM 0,5/ 2-2,5-V SMD R44 Order No.: 1771091 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1771091 Address PHOENIX CONTACT Inc., USA 586 Fulling Mill Road Middletown, PA 17057,USA Phone (800) 888-7388 Fax (717) 944-1625 http://www.phoenixcon.com © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 5 / 5 Feb 25, 2010
