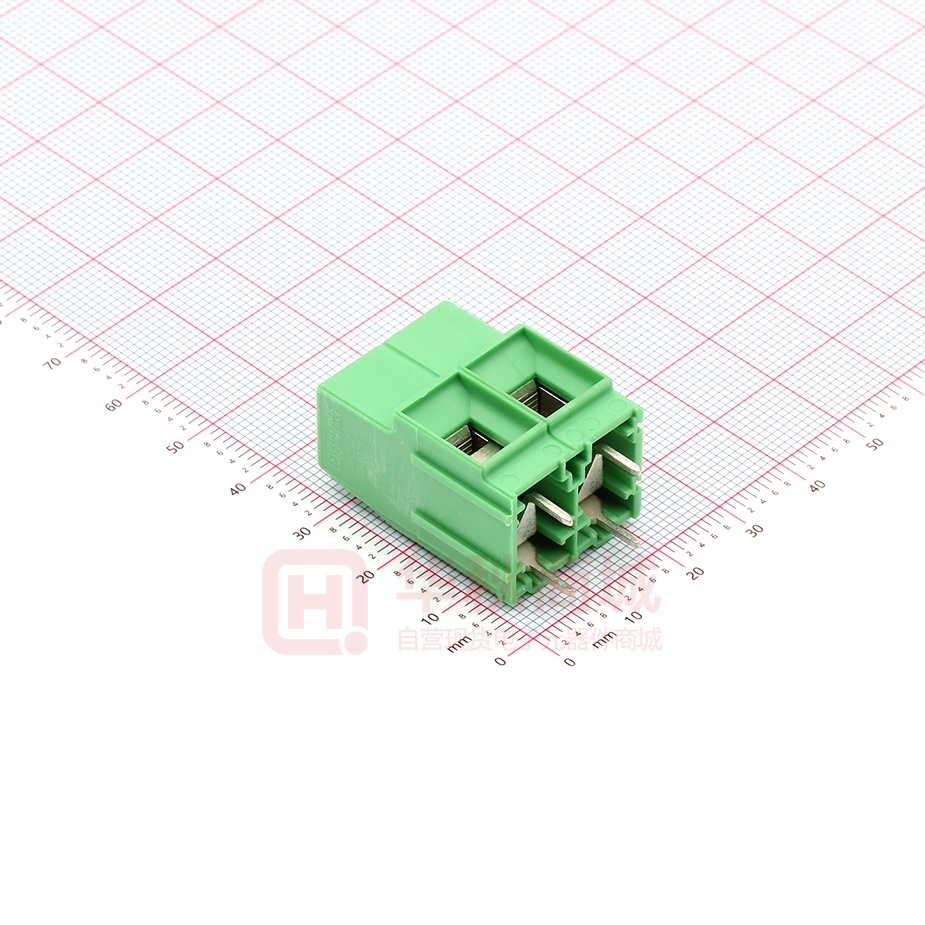

PC terminal block, Nominal current: 76 A, Nom. voltage: 690 V,
Pitch: 10.16 mm, Number of positions: 2, Type of connection: Screw
connection, Mounting: Soldering, Conductor/PCB connection direction:
0 °, Color: green, The article can be aligned to create different nos. of
positions!
Product notes
WEEE/RoHS-compliant since:
06/12/2009
Commercial data
GTIN (EAN)
4
046356
481427
sales group
E530
Pack
50 pcs.
Customs tariff
85369010
Catalog page information
Page 323 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Pitch
10.16 mm
Dimension a
10.16 mm
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 5
Jan 19, 2011
MKDSP 10N/ 2-10,16 Order No.: 1773976
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1773976
Number of positions
2
Pin dimensions
1 x 0,9 mm
Hole diameter
1.5 mm
Screw thread
M4
Tightening torque, min
1.2 Nm
Tightening torque max
1.5 Nm
Technical data
Range of articles
MKDSP 10N
Insulating material group
I
Rated surge voltage (III/3)
8 kV
Rated surge voltage (III/2)
8 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/2)
1000 V
Rated voltage (II/2)
1000 V
Connection in acc. with standard
EN-VDE
Nominal current IN
76 A
Nominal voltage UN
690 V
Nominal cross section
16 mm²
Maximum load current
76 A
Insulating material
PA
Inflammability class acc. to UL 94
V0
Internal cylindrical gage
B6
Stripping length
10 mm
Nominal voltage, UL/CUL Use Group B
300 V
Nominal current, UL/CUL Use Group B
60 A
Nominal voltage, UL/CUL Use Group C
300 V
Nominal current, UL/CUL Use Group C
60 A
Nominal voltage, UL/CUL Use Group D
600 V
Nominal current, UL/CUL Use Group D
5A
Connection data
Conductor cross section solid min.
0.5 mm²
Conductor cross section solid max.
16 mm²
Conductor cross section stranded min.
0.5 mm²
Conductor cross section stranded max.
16 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 5
Jan 19, 2011
MKDSP 10N/ 2-10,16 Order No.: 1773976
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1773976
Conductor cross section stranded, with ferrule
without plastic sleeve min.
0.5 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve max.
16 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve min.
0.5 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve max.
16 mm²
Conductor cross section AWG/kcmil min.
20
Conductor cross section AWG/kcmil max
6
2 conductors with same cross section, solid min.
0.5 mm²
2 conductors with same cross section, solid max.
4 mm²
2 conductors with same cross section, stranded
min.
0.5 mm²
2 conductors with same cross section, stranded
max.
4 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
0.5 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2.5 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
0.5 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
6 mm²
Minimum AWG according to UL/CUL
20
Maximum AWG according to UL/CUL
6
Certificates / Approvals
Certification
CUL, UL
Accessories
Item
Designation
Description
MPS-MT
Test plugs
Plug/Adapter
0201744
